9
4.9 Interface Ports: Located on the front left of the control panel opposite the Over Temperature
Safety, these three (3) ports are where the logged data can be externally accessed through serial
and parallel functions.
4.10 CO
2
Sample Port: This is located on the front left side of control panel. A sample can be drawn
to measure the CO
2
content in the chamber at this port.

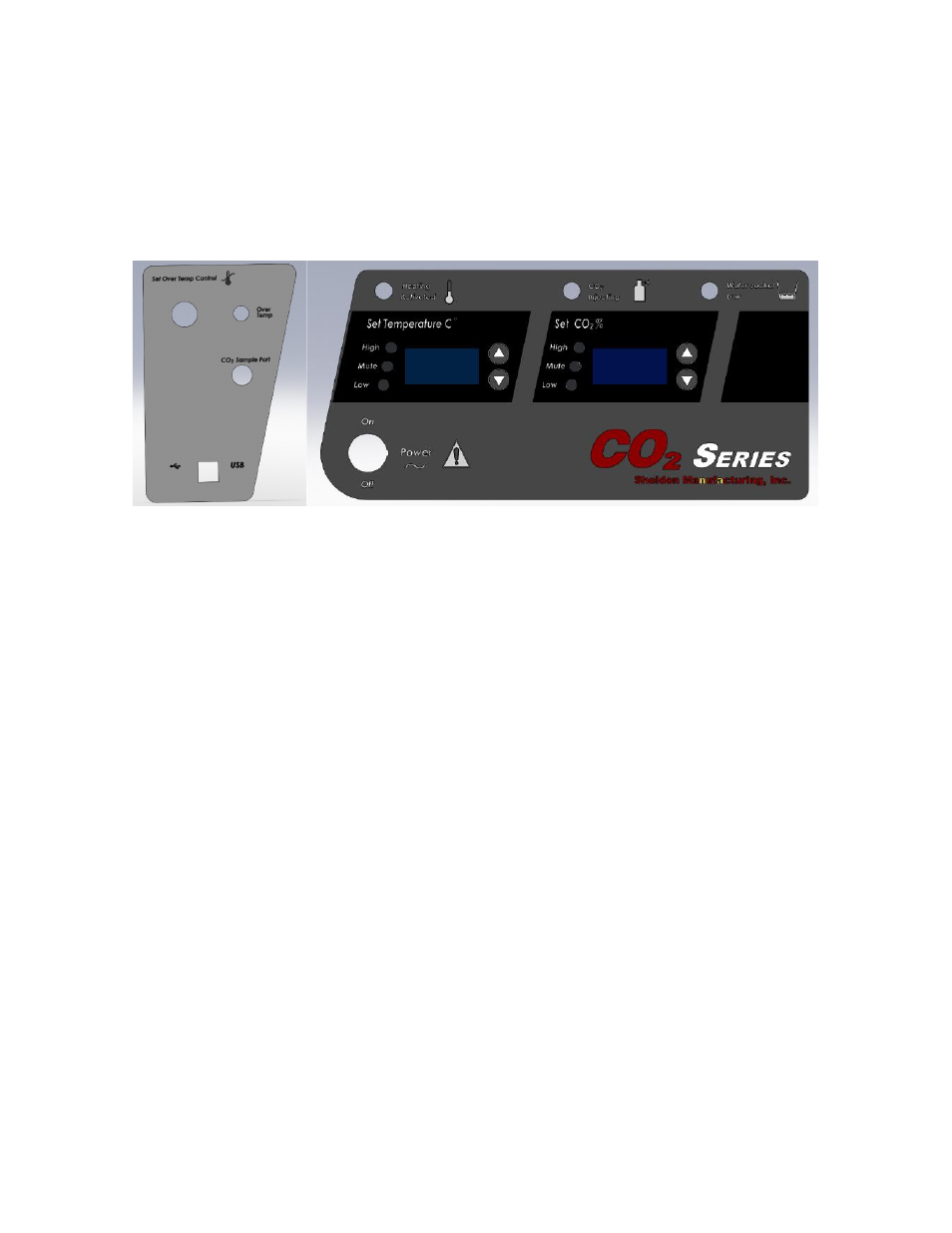

Figure 2
