Step 7:
Step 8:
Step 9:

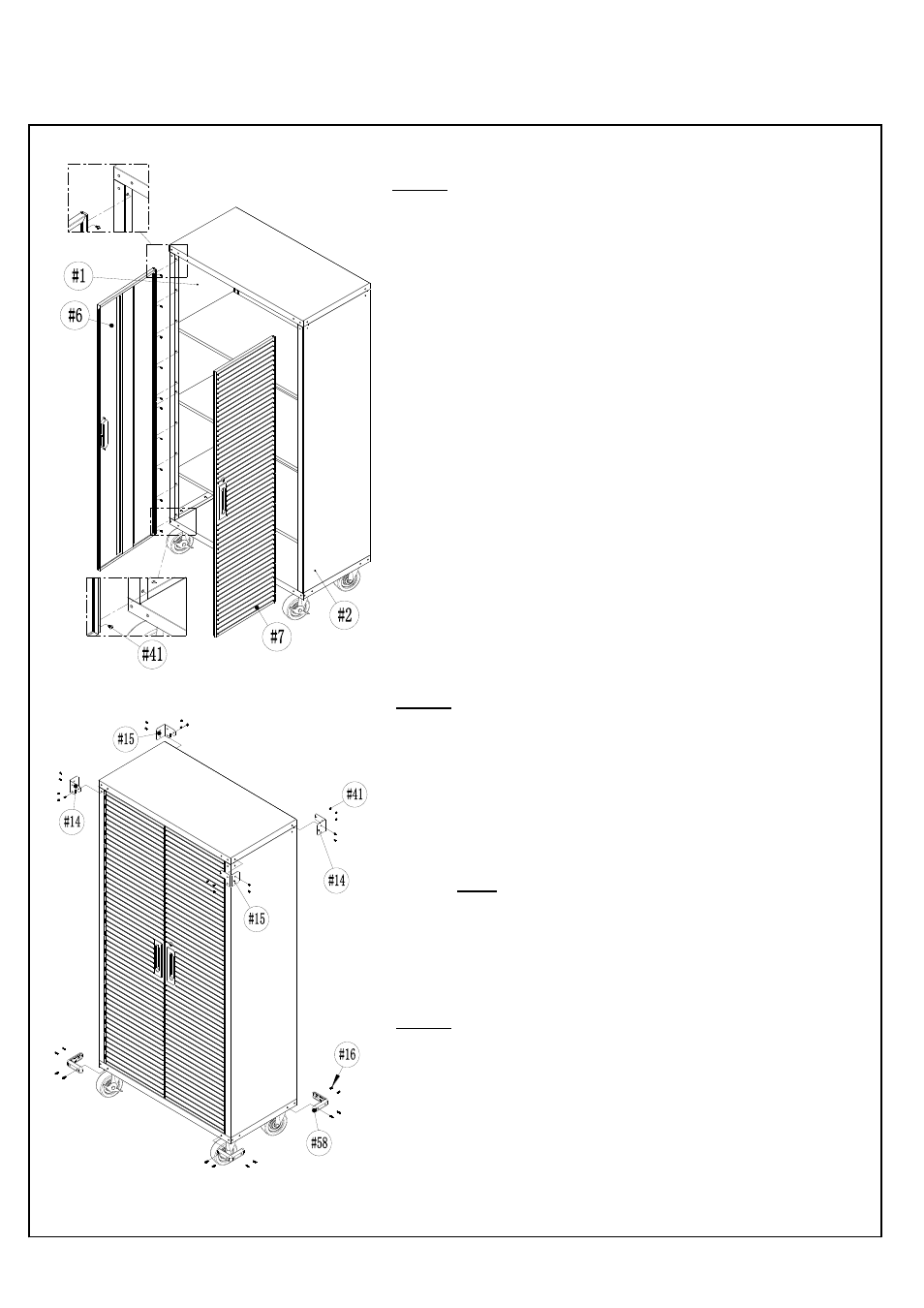

Storage Cabinet (Model No. 16234)
ASSEMBLY INSTRUCTIONS
(pg 8 of 10)
b. Install the Right Door (#7) the same way.
Install the Left and Right Doors (#6 and #7).
Note: There is a difference in shape of the Corner Protection
(#14) for the left front and right back and the Corner
Protection (#15) for right front and left back.
Move the cabinet to desirable place and use Key (#22) to
lock the doors.
a. Attach the Left Door (#6) to the unit using 10 Screws F
(#41) to tighten it.
Note: The screw holes on the door hinge have tolerance,
enabling the door to be adjusted and centered in the
doorframe.
Install the Bumpers (#58) and Corner Protection (#14 and
#15).
a. Use 16 Screws C (#16) to install the 4 Bumpers (#58)
onto the four corners of the Bottom Panel (#4).
b. Use 20 Screws F (#41) to install the Corner Protection
(#14 and #15) onto the top of the cabinet.
