Step 3:
Step 4:
Note:

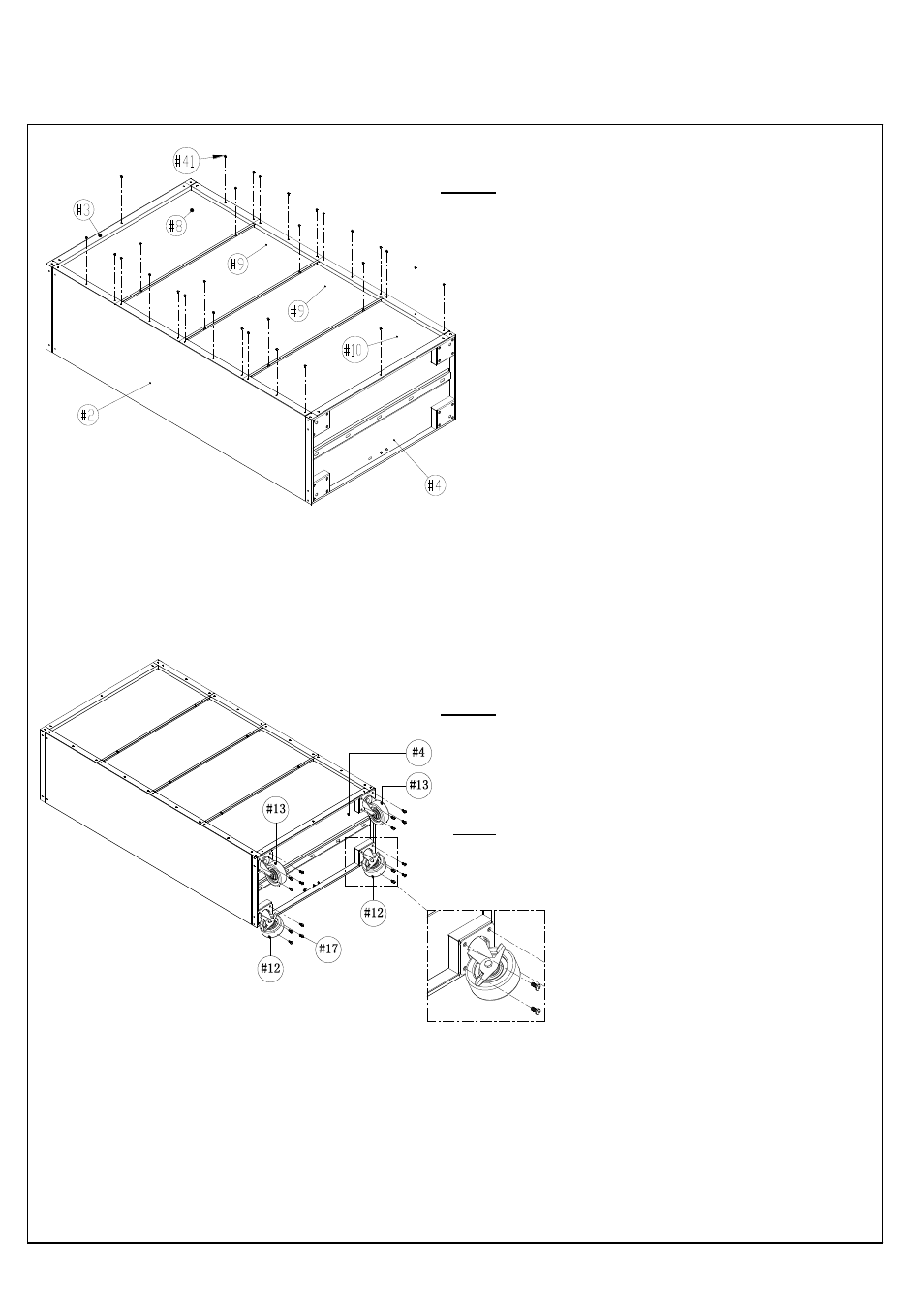

Install the Wheels (#12 and #13).
b. Install both Middle Back Panel (#9) above Bottom
Back Panel (#10) the same way. Place the groove
of the Middle Back Panel (#9) onto the top edge of
the Bottom Back Panel (#10) and use 8 Screws F
(#41) to install.
Install the Wheels with Brake (#12) onto the front of the
cabinet and screw the Wheels W/O Brake (#13) onto
the back of the cabinet. Use Screws D (#17) and
Screw Driver (#21-A) to install.
Make sure the Wheels with Brake (#12) are in
LOCKED position and stand the cabinet upright after
installing the four wheels.
c. Use 7 Screws F (#41) to install the Upper Back
Panel (#8) the same way.
ASSEMBLY INSTRUCTIONS
(pg 6 of 10)
Storage Cabinet (Model No. 16234)
Install the Back Panels (#8, #9 and #10).
a. Use 7 Screws F (#41) to install the Bottom Back
Panel (#10) onto both Left and Right Side Panels
(#1 and #2) and Bottom Panel (#4).
