Step 1:
Step 2:
*Note: Before tightening the screws, make sure the
bottom corners of the Left and Right Side Panels (#1 and
#2) are completely flushed with the back and front
corners of the Bottom Panel (#4).

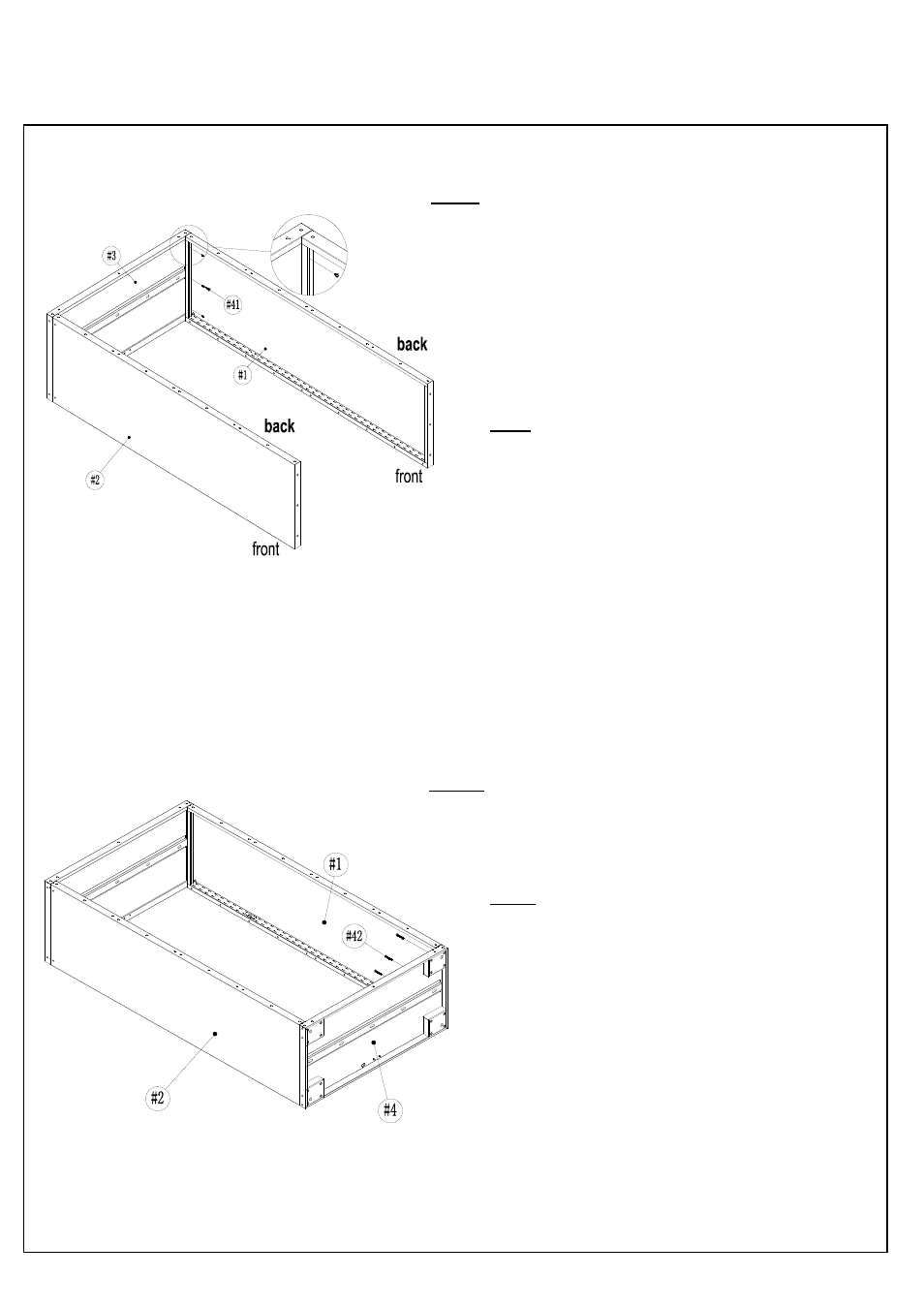

Place the Bottom Panel (#4), face front downward, to the
Left and Right Side Panels (#1 and #2). Use 6 Screws G
(#42) to install.
Install Bottom Panel (#4).
Install Left and Right Side Panel (#1 and #2) to the
Top Panel (#3).
Place the Right Panel (#2) on the ground vertically. Make
sure the front of the panel faces downward. Place the
Top Panel (#3) next to the Left Panel (#1). Line up the
screw holes, insert and tighten 3 Screws F (#41) using
Screw Driver (#21-A). Install the Right Panel (#2) the
same way.
*Note : The screw holes have some tolerance –small
adjustments may be needed during assembly.
ASSEMBLY INSTRUCTIONS
(pg 5 of 10)
Storage Cabinet (Model No. 16234)
*NOTE: Recommend using 2 persons to assemble Storage Cabinet.
