Step 5.
Note:
Step 6.

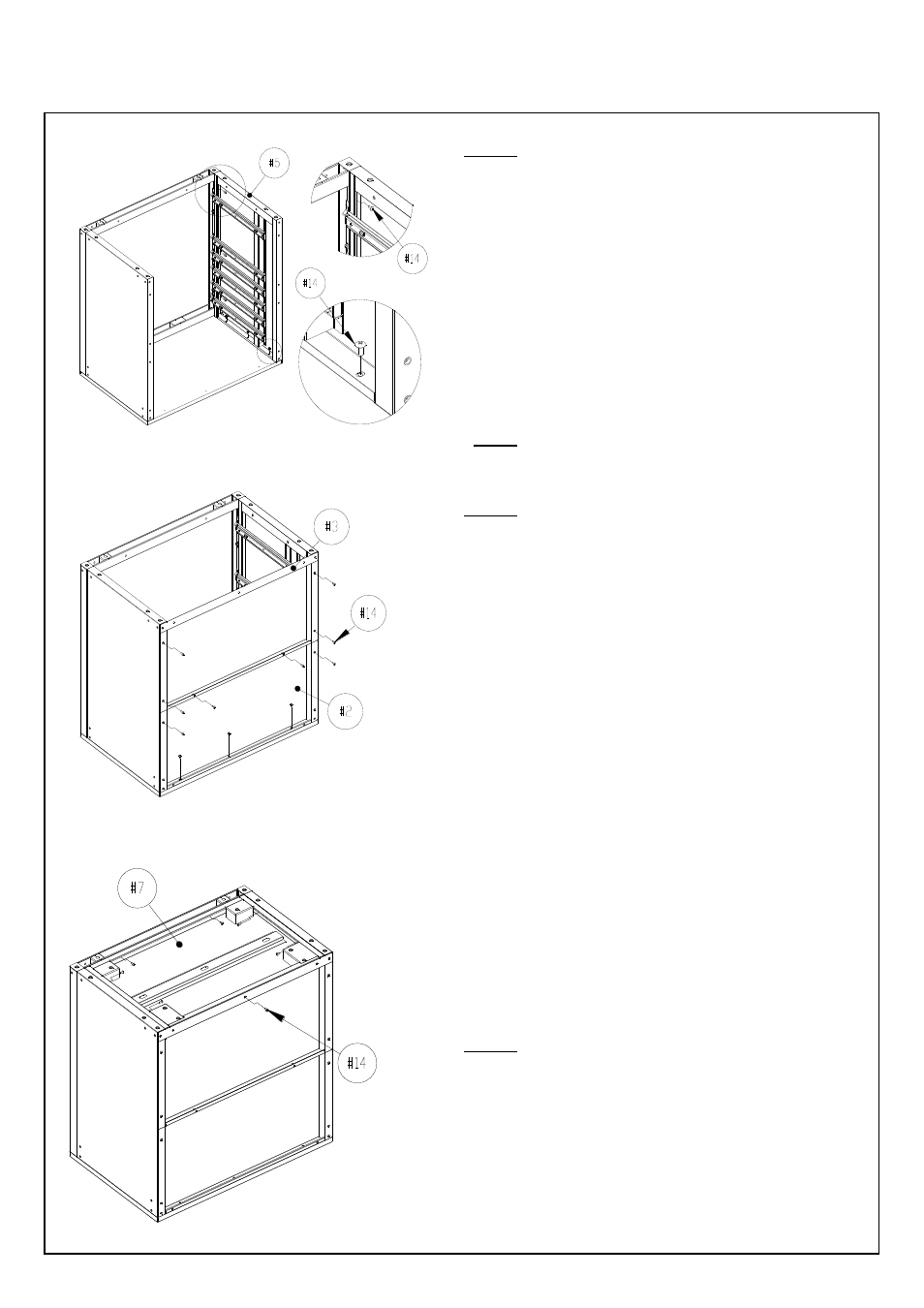

Step 7. Install the Bottom Panel (#7)
Attach the Bottom Panel (#7) to the Left Panel
(#4), Right Panel (#5), Front Frame (#6), Bottom
Back Panel (#3), line up screw holes and use 7pcs
Screw A (#14) to tighten.
Install the Upper Back Panel (#2) and Bottom
Back Panel (#3).
Install the Right Panel (#5).
UltraHD Rolling Cabinet (Model No. 20204)
(pg 8 of 13)
a. Attach the Upper Back Panel (#2) between the
Left Panel (#4) and Right Panel (#5). Make sure
the “Top” of the Upper Back Panel (#2) is on the
Solid Hardwood Top (#1) as the sticker indicates.
Line up the screw holes and use Screw A (#14) to
tighten up the Upper Back Panel to the Solid
Hardwood Top (#1), Left Panel (#4) and Right
Panel (#5).
b. Attach Bottom Back Panel (#3) between the
Left Panel (#4) and Right Panel (#5). Make sure
the “Top” of the Bottom Back Panel (#3) is to the
Upper Back Panel (#2) as the sticker indicates.
Line up the screw holes and use Screw A (#14) to
tighten the Bottom Back Panel (#3) to the Upper
Back Panel (#2), Left Panel (#4) and Right Panel
(#5).
Remove 2pcs Slides to create the space needed to
use the screwdriver (#21) at first. Then, attach the
Right Panel (#5) to Front Frame (#6) and The Solid
Hardwood Top (#1), Make sure the “Top” of the
Left Panel (#4) is on the Solid Hardwood Top (#1)
and the screw holes are lined up to the Front
Frame (#6), Use Screwdriver (#21) and 6pcs Screw
A (#14) to tighten the Right Panel (#5) the Front
Frame (#6) and Solid Hardwood Top (#1).
Pls remember installing the removed 2pcs slides
back to the Right Panel (#5).
