for technical questions, please call 1-800-444-3353;
troubleshooting section at end of manual.
Page 11 SKU 95424, 95629
UnpACKInG
When unpacking, make sure all parts shown on the parts Lists near the end of
this manual are included. If any parts are missing or broken, call Harbor Freight Tools.
AssEMbLy InstRUCtIOns
WARnInG! Always turn off the Welder and unplug the unit from its electri-
cal outlet prior to performing any assembly, maintenance, or service.

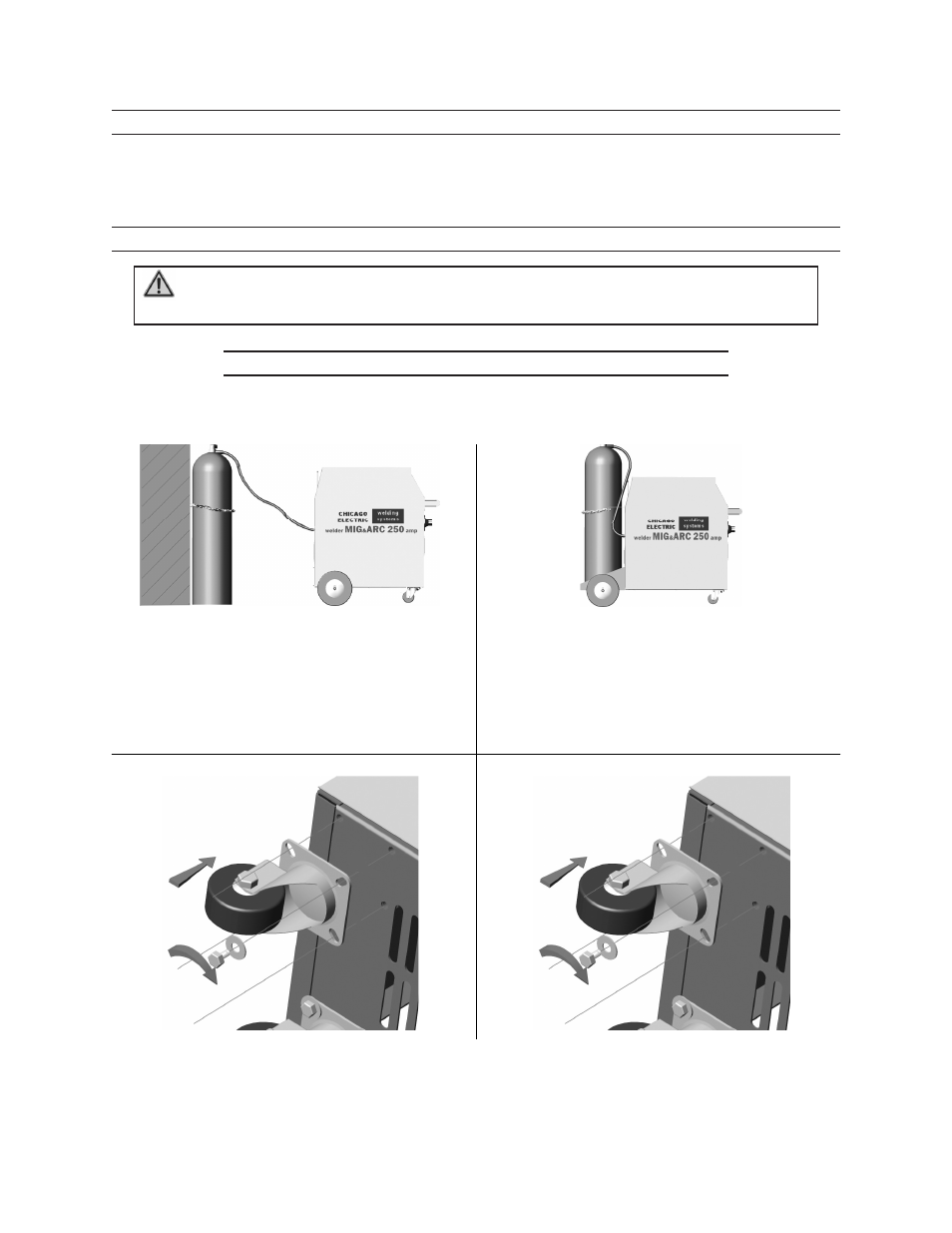

AttACHInG tHE WHEELs
Attaching wheels to case can be done for stationary cylinder use or mobile use.
stationary Mobile
Attach the two Swivel Wheels (27A) at the
front and two Back Wheels (37A) and Axle
(36A) at the Base (28A) of the unit, using the
Clips (38A), Bolts and Washers provided.
(see Assembly Diagram on page 32 and
the following steps.)
Attach the two Swivel Wheels (27A) at front
of the Support (35A), Arm (5A), two Back
Wheels (37A) and Axle (36A) at the rear of
the Base (28A) of the unit, using the Clips
(38A), Bolts and Washers provided.
(see
Assy. Diagram on page 32 and the follow-
ing steps.)
For both Stationary and Mobile modes, set the Swivel Wheel (27A) against the front
corner of the case, making sure to align the holes. Screw the Bolts through the
Washers and into the Case.
(see figures 1.)
1.
