- 10 -
www.SCEPTRE.com
SCEPTRE X420 HDTV User Manual

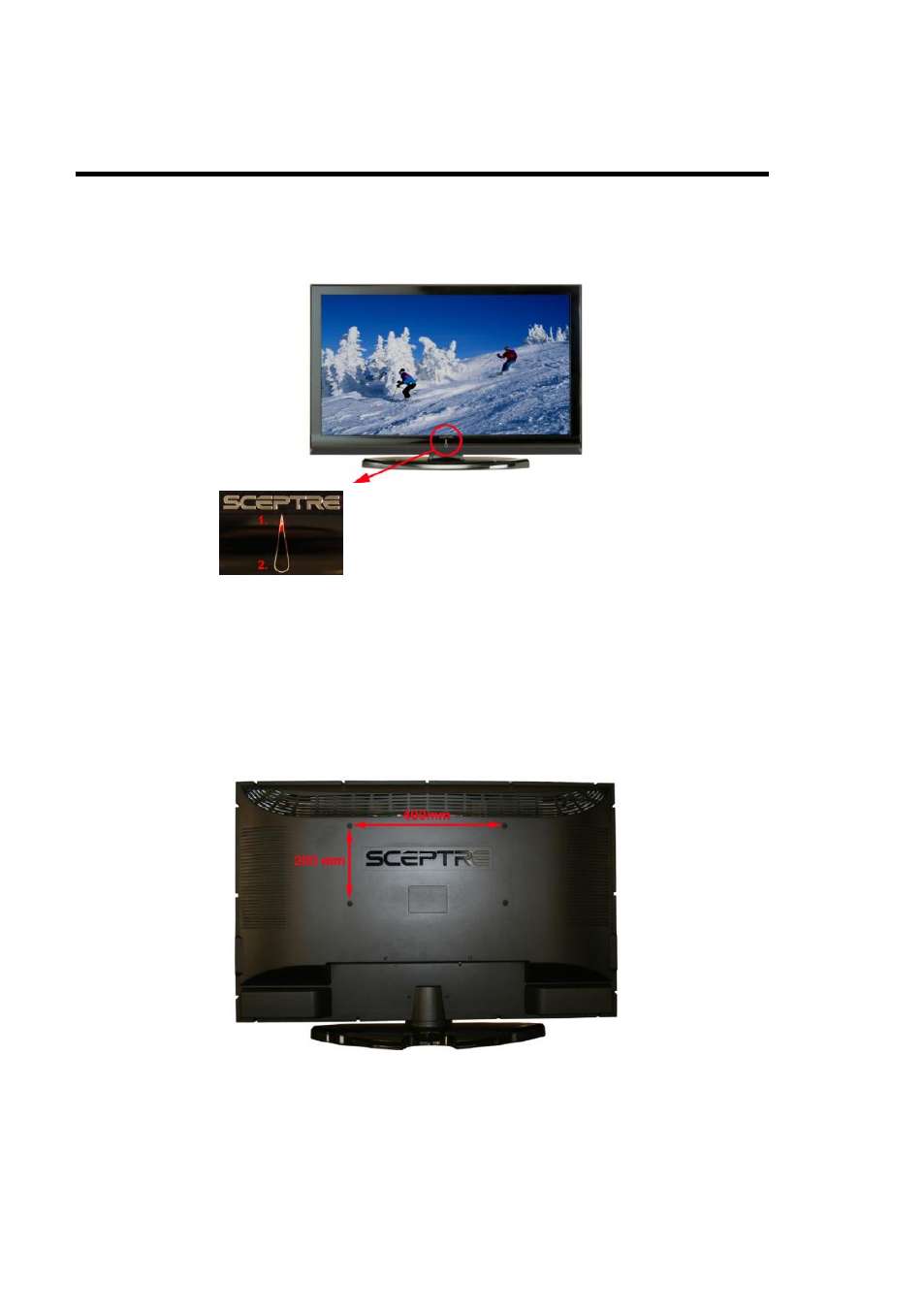

Identifying Front and Rear Panel
Front View
1. INDICATOR LIGHT – The light is red when power is plugged in but the TV is not turned on. The
light turns blue when the TV is turned on. Because of the size of the panel, the X420 LCD TV will
take 10
– 12 seconds to power on.
2. REMOTE SENSOR – The remote sensor receives all the commands from the remote control.
Rear View Mounting Pattern
Mounting Specification : 400mm x 200mm using screw size M6. Length of screw should not exceed
12mm. Please Note : The 12mm length of screw refers to how deep the screw can go inside the
mounting
holes. When you’re buying screws, you should add the original 12mm to the thickness of
your mounting plate in order to get the total screw length. The 6 screws in the package are for
securing the TV stand only. If you are mounting the TV please consult a qualified installer for
further instructions on bracket support and wall support.
