Apr 02

1-6

Compuprint PageMaster 402N User Guide
Parts of the Printer

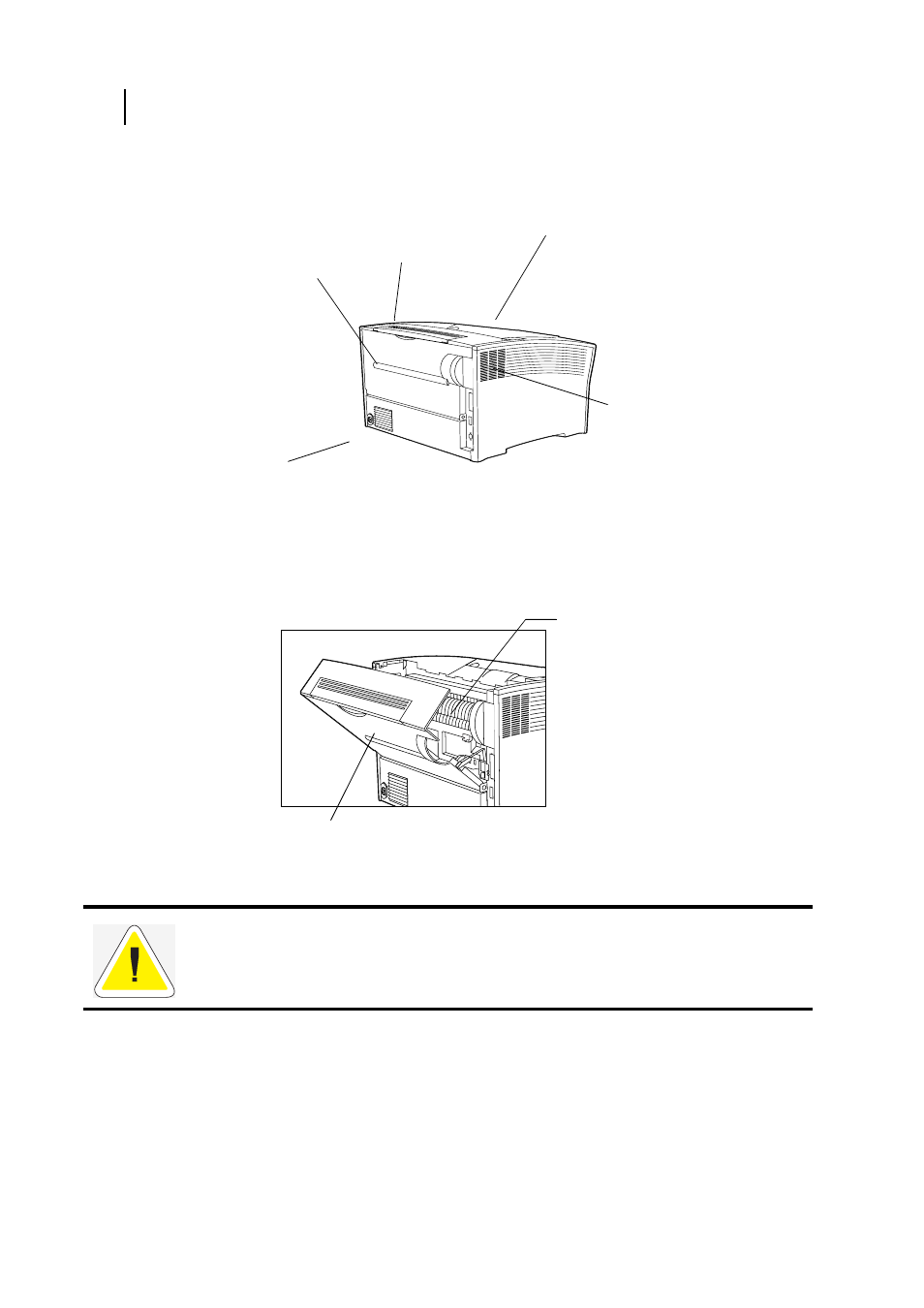

Figure 1-4: Rear of the Printer.

Figure 1-5: Internal Parts of the Printer.

SIB013F

Top cover

Provides access to the
inside of the printer;
allows you to replace the
Toner Cartridge or remove
jammed paper.

Ventilation slot

Releases hot air pro-
duced inside the
printer to prevent
overheating.

Power cord
connector

Provides point of
connection for
power cord.

Rear cover

Provides access to the
rear of the printer;
allows you to remove
jammed paper.

Stacker cover

Mounted in the rear cover.
Covers the components used
when the optional stacker is
installed. Open the rear cover
when installing the stacker.

Fuser

Fixes toner onto the paper.

Rear cover

CAUTION: The fuser becomes very hot while the printer is operating. If you need to remove
the drum cartridge to remove a paper jam, turn the power off and wait at least 10 minutes
before removing the drum cartridge and touching the fuser.
