Insert Drain Plug into Drain Flange. Make sure the adjustable eye-screw
it.
Insert Ball Rod Washer into drain body followed by the Ball Rod, 2nd
Washer and Ball Rod Nut. Tighten the Ball Rod Nut until snug.
Gently push the Horizontal Ball Rod down to place the plunger in the
up position.
Connect the Lift Rod with the Ball Rod using the Pop-up connection and
tighten securely with screwdriver.
Test Pop-up for smooth operation and adjust if necessar y.

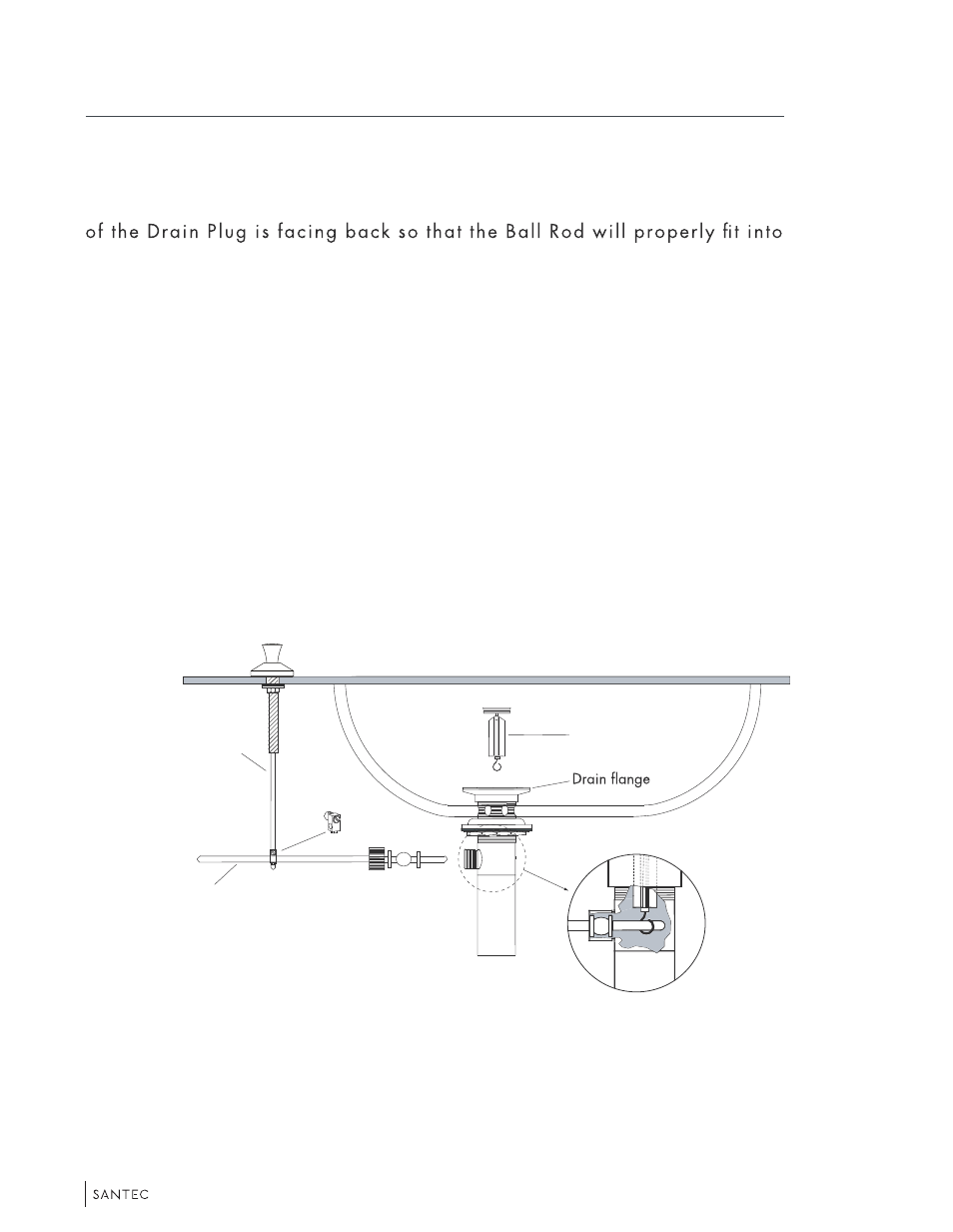

Drain plug
Drain tube
Lift rod
Pop-up connection
P o p U p D r a i n
Pop Up Drain Installation (2)
Ball rod
assembly
(ball rod, ball rod
nut, & 2 washers)
