Handle trim installation (1) – Santec 9570KT User Manual
Page 4
0 4
9570KL, KR, KT _ _
H a n d l e Tr i m
Remove the Valve Body Mounting Hardware from the valve body. Slip
appropriate hole next to the vacuum breaker (HOT-left & COLD-right).
Apply a ring of silicone caulking around the handle hole on the bidet
top. DO NOT USE PLUMBER’S PUTTY, WHICH CAN DAMAGE FINISH.
Connecting Hoses toward Wye Connector.
For proper handle turning direction, install the handle with the “COLD”
blue label at the right side of the sink (front view) and the handle with
the “HOT” red label at the left side of the sink.
HANDLE TRIM IS READY FOR DROP-IN INSTALLATION. DO NOT
DISASSEMBLE HANDLE TRIM.

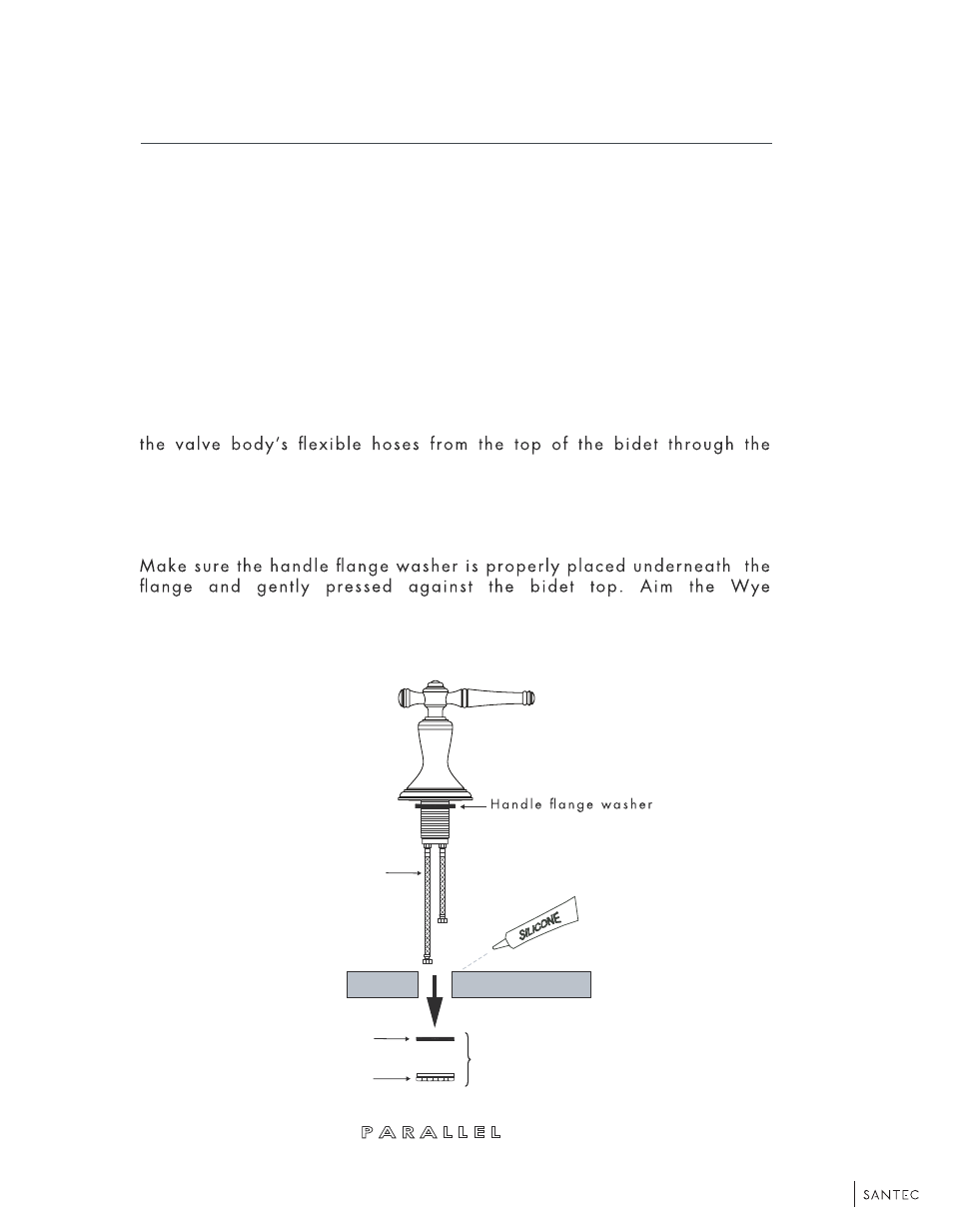

Handle Trim Installation (1)
Valve Body
Mounting Hardware
Washer
Brass Lock Nut
Wye connecting hoses
