Va c u u m B r e a k e r
NOTE: See diagram on next page for removing and reinstalling the
complete trim.
Remove the complete trim from the Vacuum Breaker valve.
Insert Vacuum Breaker valve up from below and reinstall complete trim
except for the handle cap. Make sure to install the black plastic lock
nut in the position shown in the diagram on the next page. Snugly
tighten down the black plastic lock nut and trim cylinder by hand
tightening only.

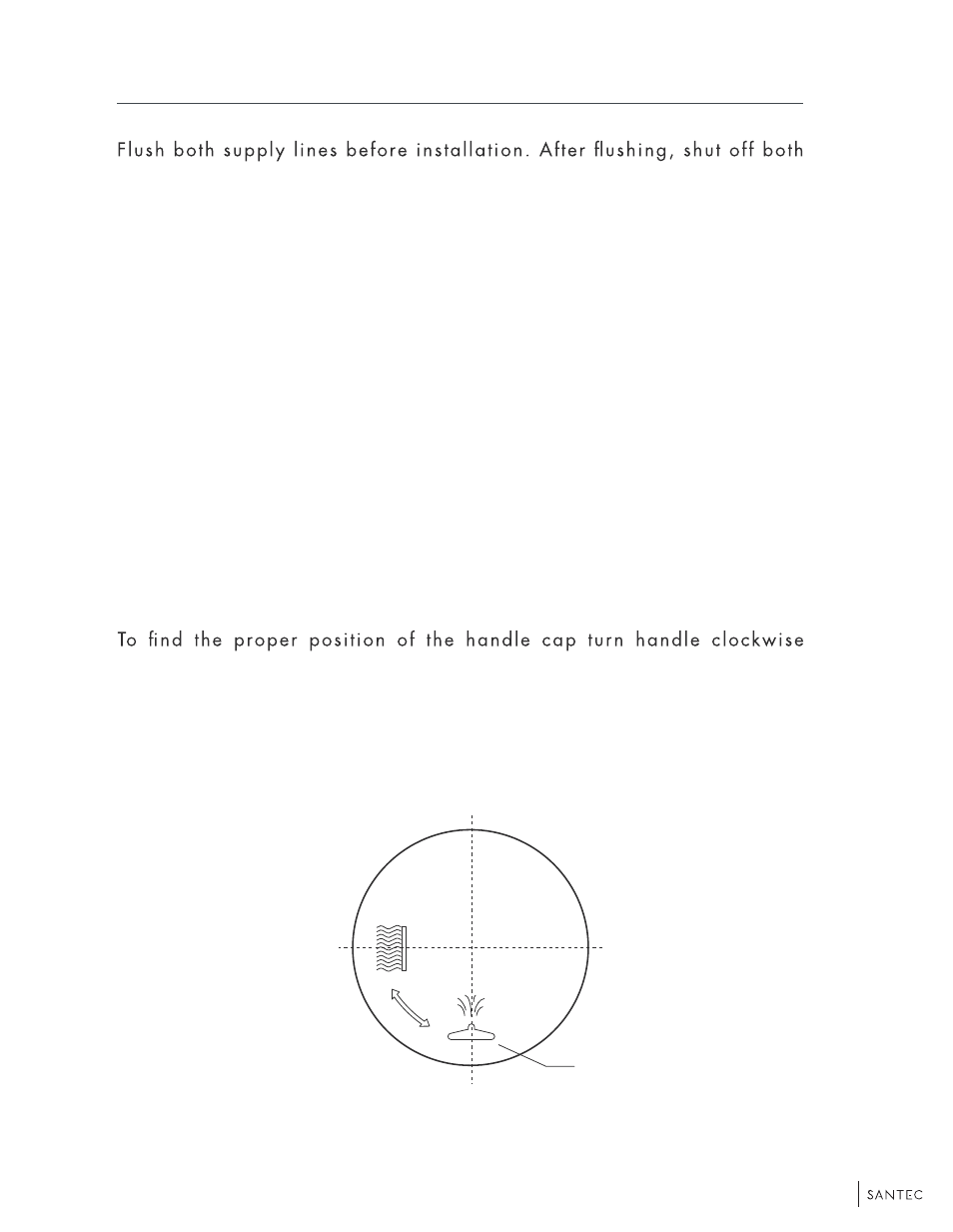

until it stops. Pop the handle cap into the handle with the “spritzer”
icon facing frontwards or at the 6 o’clock position (see handle cap
diagram below).
supply lines.
Hole size for the spout and Handle Trim is a minimum of 1-1/4” and a
maximum of 1-1/2”.
Vacuum Breaker Installation
6
1 2
3
9
Spritzer
Handle Cap
