S p o u t
Rough Installation For Spout
Remove tee connector and spout mounting hardware from spout shank.
Apply a ring of silicone caulking around hole designated for spout. Do
Find the “front here” mark, which is marked on the base, and make
sure that it is facing frontward. Slip spout shank through deck top and
reattach the spout mounting hardware until secure.
Wipe away excess silicone with paper towel.
Wrap the bottom threads with plumber’s tape and thread the tee
connector back onto spout shank.
Turn off HOT and COLD supply lines before beginning installation.
Hole size for the Spout and handle trim is minimum of 1-1/4” and
maximum of 1-1/2”.

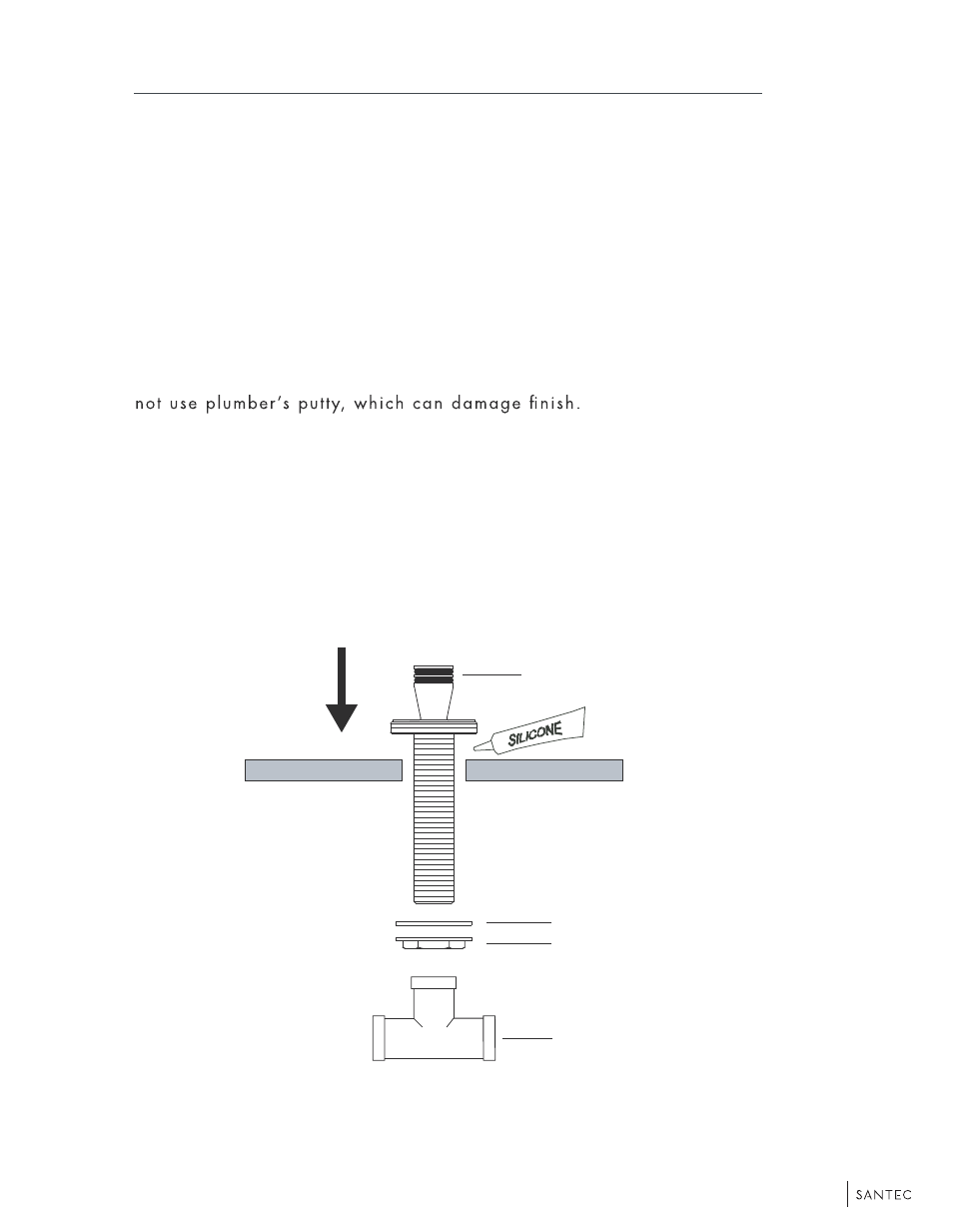

M e t a l w a s h e r
B r a s s l o c k n u t
O - r i n g s }
}
S p o u t m o u n t i n g
h a r d w a r e
T e e c o n n e c t o r
