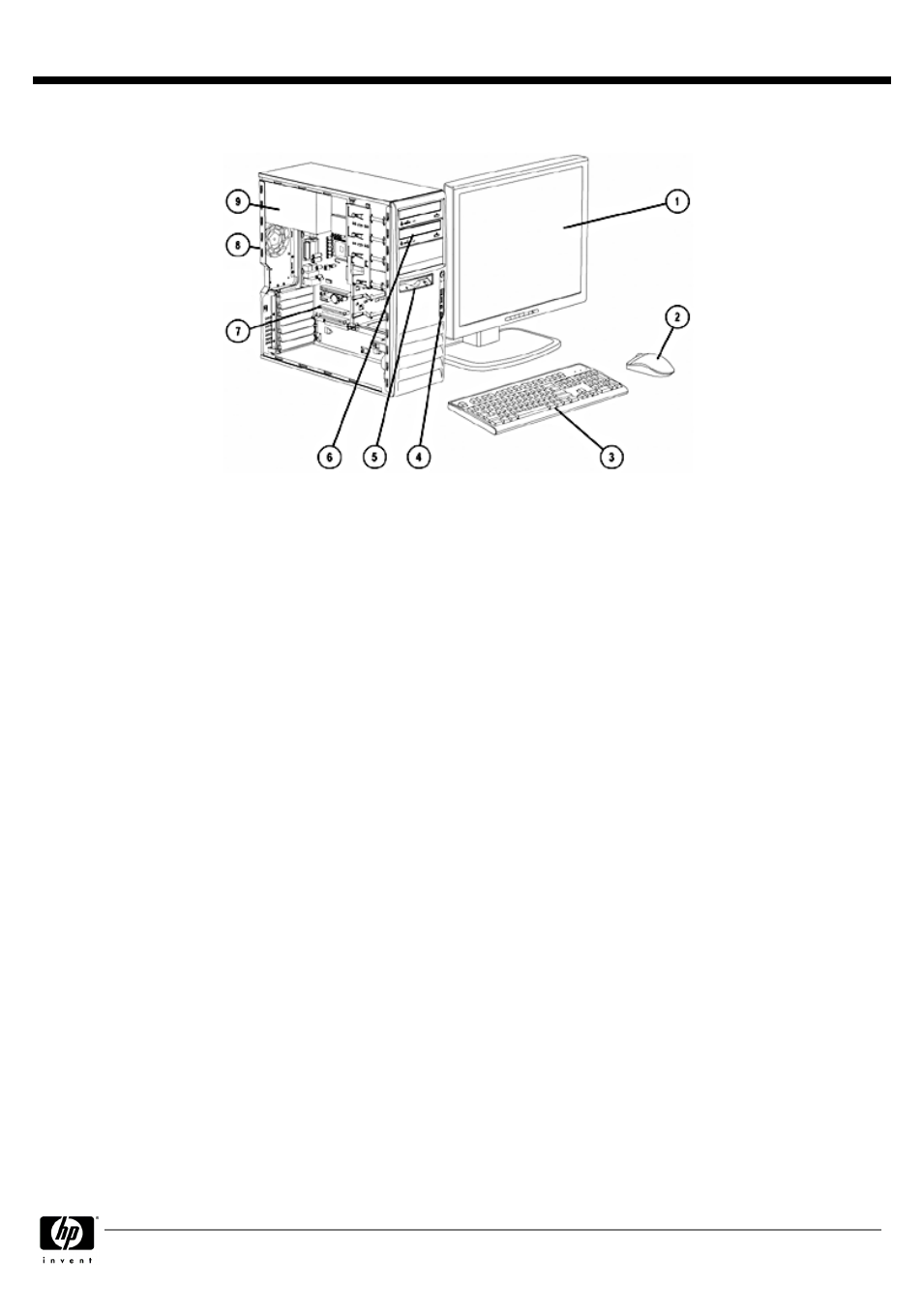

Convertible Minitower
1. Monitor (sold separately) 7. (2) full-height PCI slots, (1) full-height PCI Express x1 slot,
(1) full-height PCI Express x16 slot, (2) additional full-
height PCI slots optional 2. 2-Button Scroll Mouse (PS/2) or Optical Scroll Mouse
(PS/2 or USB)
3. HP Standard Keyboard (PS/2 or USB) or HP USB
Smartcard Keyboard
8. Rear I/O: 6 USB 2.0, 1 standard serial port, 1 optional
serial port, 1 parallel port, 2 PS/2, 1 RJ-45, 1 VGA, audio
in/out, mic in
4. Front I/O: (2) USB 2.0, headphone and microphone
5. (1) 3.5" external bay for optional HP 16-in-1 Media Card
Reader, diskette drive, or other 3.5" device
9. 365-watt Active Power Factor Correction (PFC) power
supply
6. (3) 5.25" external bays and (2) 3.5" internal bays
QuickSpecs
HP Compaq dc7700 Business PC
Overview
DA - 12543 Worldwide QuickSpecs — Version 3 — 9.28.2006 Page 3
