FUSES
Totally Integrated Power Module (TIPM)

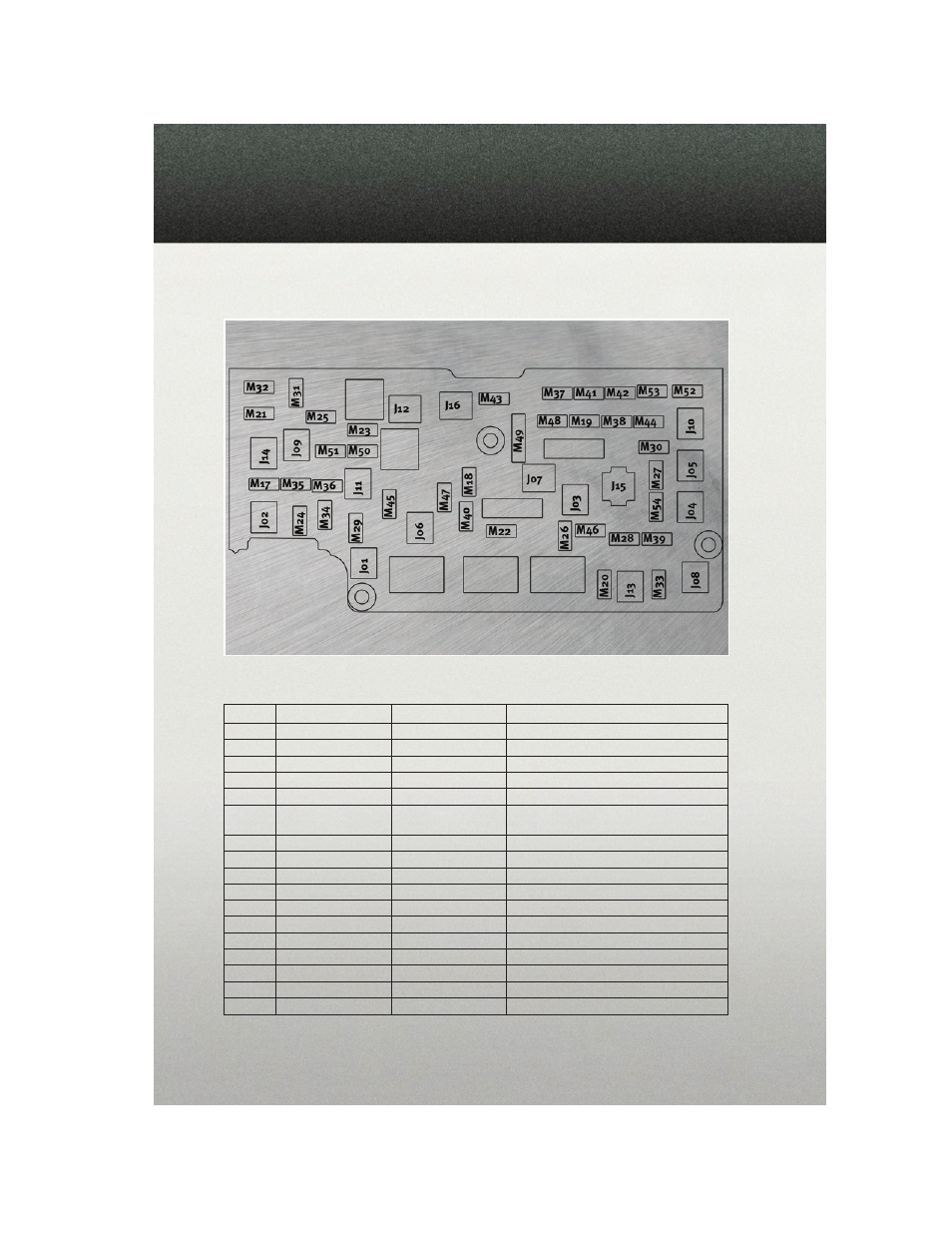

• The Totally Integrated Power Module (TIPM) is located in the engine compartment near
the battery. This center contains cartridge fuses and mini fuses.
Cavity Cartridge Fuse Mini Fuse Description
J01 30 Amp Pink Bat — Presafe #1/CM2200
J02 30 Amp Pink Bat — Trailer Tow Main
J03 25 Amp Natural Bat — Passenger Door Node
J04 40 Amp Green Bat — ABS Pump
J05 30 Amp Pink Bat — ABS Valve
J06 30 Amp Pink Bat — H/Lamp Wash/MTV/CM2200/
Elec Vac Pump
J07 25 Amp Natural Bat — Driver Door Node
J08 30 Amp Pink Bat — DTCM/Axle Locks
J09 30 Amp Pink Bat — Plg/Electric Brake
J10 40 Amp Green Bat — L/Bar/Off-Road
J11 30 Amp Pink Bat — Sway/Thatchum/Rear Doors
J12 40 Amp Green Starter Solenoid
J13 60 Amp Yellow Bat — Rad Fan #1/#2/SSR
J14 40 Amp Green Bat — Folding Seat/PZEV
J15 60 Amp Yellow Bat — IOD Main
J16 40 Amp Green Frt HVAC Motor
M17 25 Amp Natural Bat — Sunroof/Skylight
