Installation of extractor fan to the wall – PYRAMIDA R 90 User Manual
Page 32

EN
32

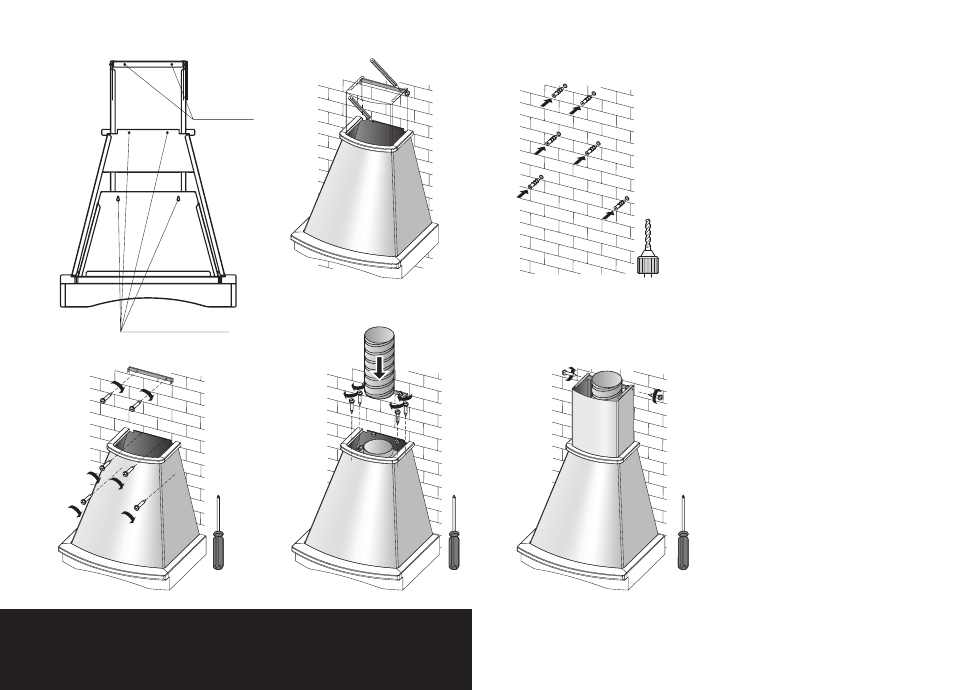

1. Remove mounting bar
from the decorative casing
2. Attach the hood to the rear
surface of the wall with
screws and plugs from the
mounting kit
3. Connect the duct to the
adapter hood. Bring the
other end of the duct in the
ventilation shaft. Check for
any cracks in the joints.
4. Install casings of an air
duct and fix them with
screws from installation
kit.
INSTALLATION OF EXTRACTOR FAN TO THE WALL
Mounting points
Mounting
points
