PAR200A Audio Selector Panel, COM radio Controller and Intercom System
Installation and Operator’s Manual
200-228-0200 Appendix D June 2013
Appendix C – J1 Connector Interconnect

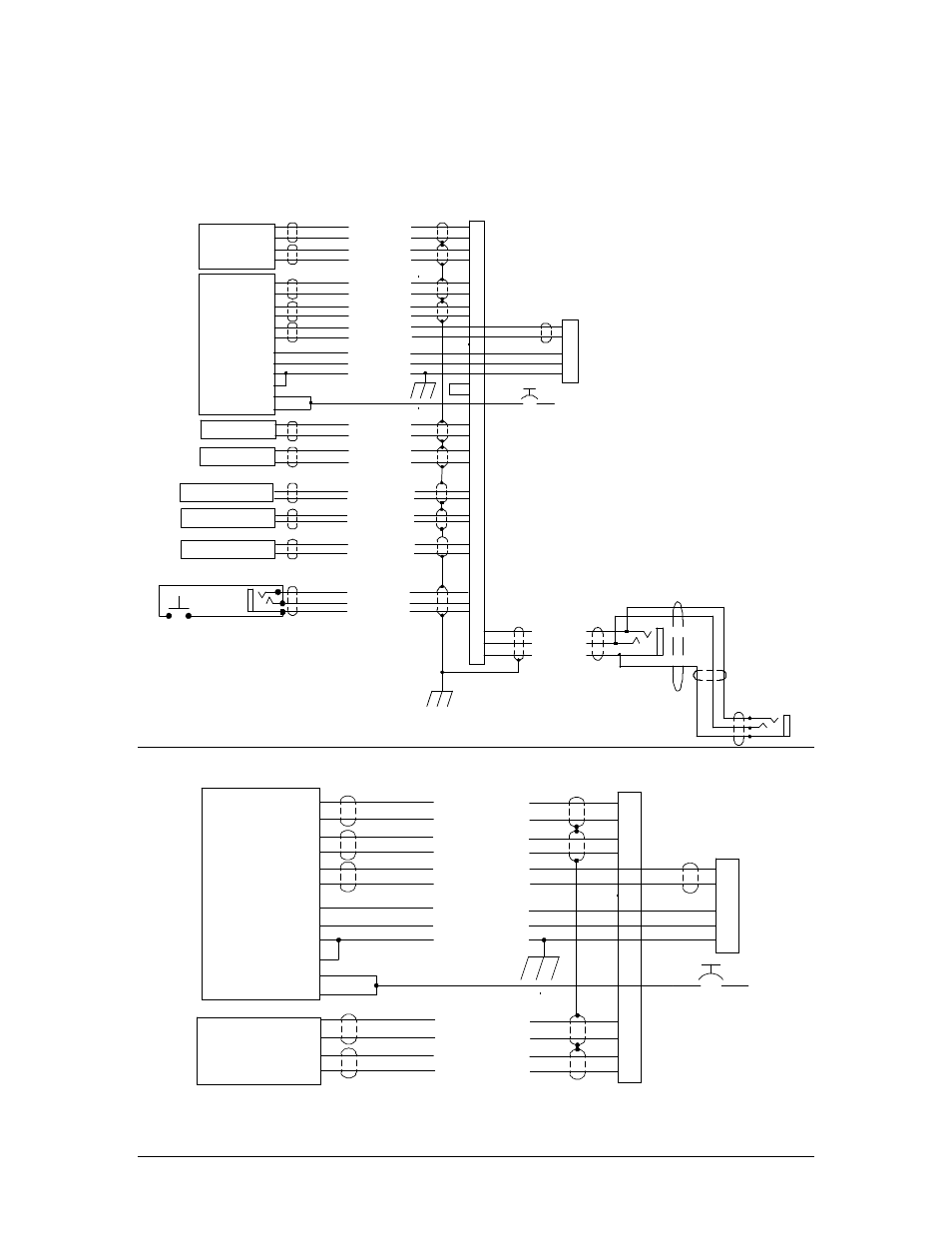

Figure 7-1 J1 connections, TY91(L)-05 as COM 2
Com 1 Audio Hi
Com 1 Mic Key
Com 1 Audio Lo
COM 1
Communications
Transceiver
COM 2
Communications
Transceiver
(TY91 -05)
Nav 1 Audio Hi
Nav 1 Audio Lo
VHF Nav 1
Nav 2 Audio Hi
Nav 2 Audio Lo
VHF Nav 2
Unswitched Input #1 Hi
Unswitched Audio Lo
Unswitched Audio #1
Unswitched Input #2 Hi
Unswitched Audio Lo
Unswitched Audio #2
Pilot Mic Audio Hi
Pilot Mic PTT
Pilot Mic Lo
9
10
11
12
Com 1 Mic Audio Hi
Com 2 Audio Hi
Com 2 Mic Key
Com 2 Audio Lo
13
14
15
30
Com 2 Mic Audio Hi
17
18
19
20
17
29
31
32
44
43
33
34
35
Notes:
1. All shields should be grounded at audio panel only.
Other end remains floating.
2. PAR200 Power, and Ground wires shall be #22 gage wire
TY91 Power and Ground shall be 20 AWG
Lighting and TY91interface #22 AWG, other wires minimum #24 AWG
3. All mic and headphone jacks must be isolated from ground.
4. All shielded wires must be MIL 22750 or 27500.
5. Unswitched inputs are always presented to
crew headphones, regardless of SPR switch or PTT.
Unswitched #3 is adjustable
6. TY91 interfaced as COM 2.
All connections for TY91(L) Radio shown for convenience.
7. Connect J1 25 to J1 26 for TY91 as COM 2.
Pilot PTT
PAR200A Connector, J1 (Sub-D 44-pin, male on tray)
Unswitched Input #3 Hi
Unswitched Audio Lo
Unswitched Audio #3
29
See Note 5
Pass. Phones (R)
Pass Phones (L)
Pass. Phones Lo
Pass. 1 PhonesJack
Pass. 2 Phones Jack
23
41
40
42
RS232 TX
RS232 RX
2
1
23
15
6
5
J2
See Note 2, 6
11-33 VDC
12
30
42
Radio On
Radio Power
Radio Ground
13
12
9
19
24
25
Airframe Ground
5A
Airframe Ground
25
26 See Note 7
Figure 7-2 PAR200A Using TY91(L) as COM1 or stand alone
Com 1 Audio Hi
Com 1 Mic Key
Com 1 Audio Lo
COM 2
Communications
Transceiver
COM 1
Communications
Transceiver
(TY91)
9
10
11
12
Com 1 Mic Audio Hi
Com 2 Audio Hi
Com 2 Mic Key
Com 2 Audio Lo
13
14
15
30
Com 2 Mic Audio Hi
17
29
12
30
42 RS232 TX
RS232 RX
2
10
23
15
6
5
Radio On
Radio Power
Radio Ground
13
12
9
19
24
25
J2
11-33 VDC
J1
25
26 N/C
N/C
NOTE: DO NOT CONNECT
J1-25 to J1-26
to set TY91L as COM 1
