PS Engineering
PMA8000B-MP3 Audio Selector Panel and Intercom System
Installation and Operator’s Manual
200-890-0600 Rev. 6, Oct. 2010

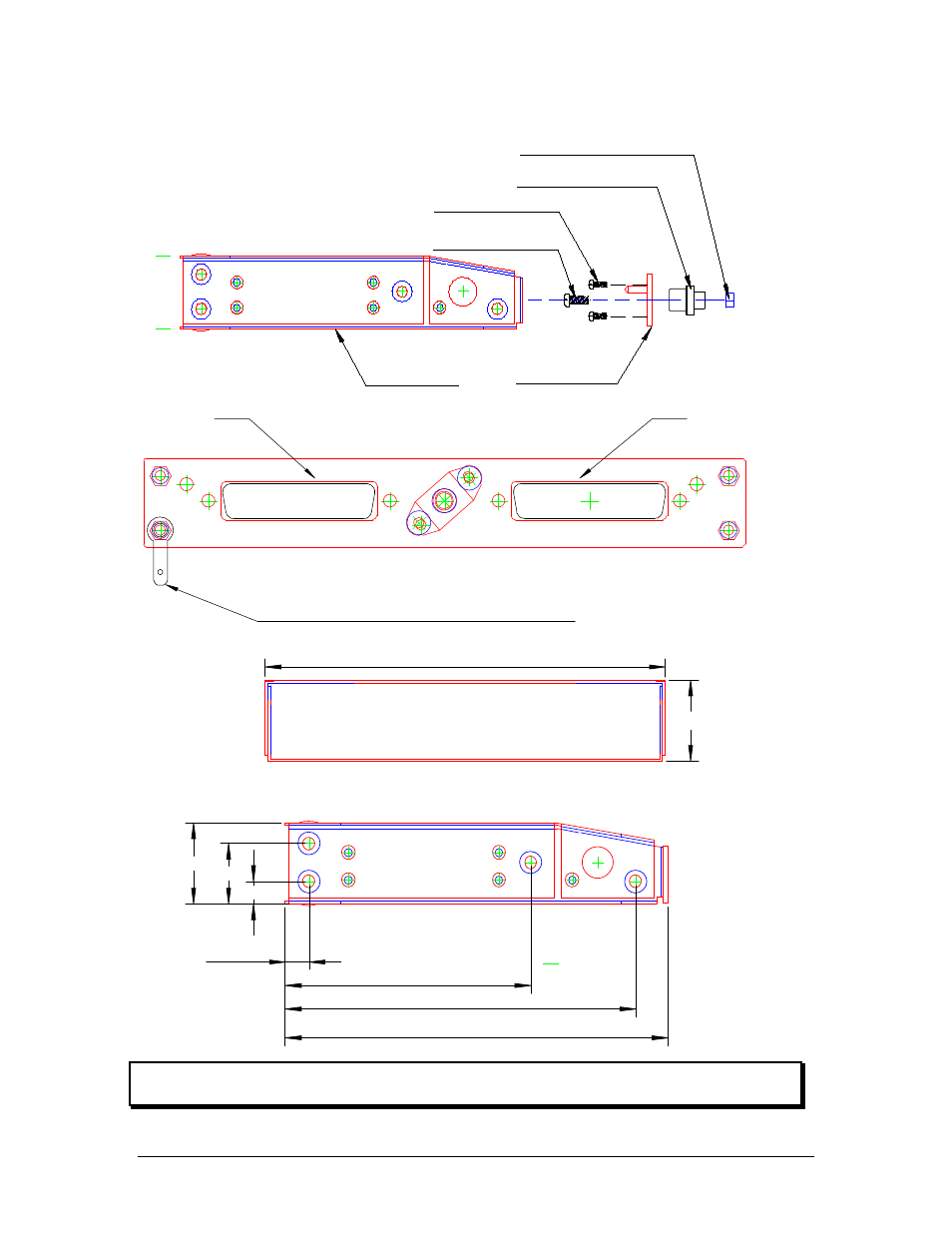

Appendix B – PMA 8000 Installation Drawings
475-013-0001 Lock nut (4 ea)
44-pin connector (2 ea)
Rack back plate
430-890-0050
475-440-0004 (4 ea)
475-440-0007 (4 ea)
Rack
430-890-0040
J2 J1
Viewed from Back
15
30
44
1
16
31
15
30
44
1
16
31
Solder Lug (mount as convenient)
Rear plate detail (not to scale)
0.37 in
3.87 in
5.53 in
6.04 in
0.36 in
0.96 in
1.28 in
6.31 in
1.28 in
Ca ut i on: Ap p l y st ea d y p r essu r e t o t h e bez el wh i l e scr ewi n g t h e u n i t i n t o t h e t r a y t o
en su r e even sea t i n g of t h e u n i t a n d con n ect or s.
