Controls and Indicators
The Series 400 7-Port Ethernet Switch contains the following connections and LED indicators.

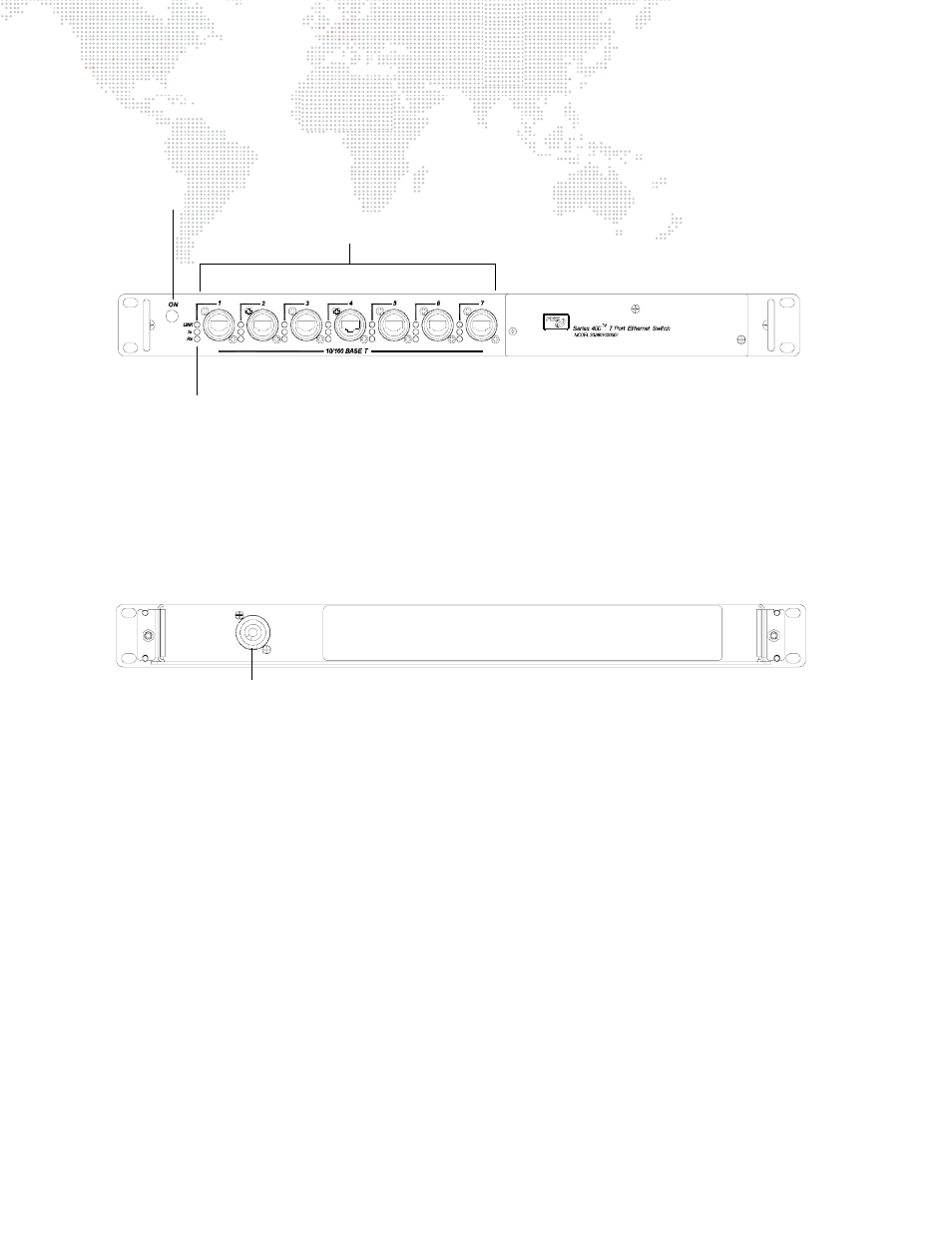

Figure 5: 7-Port Ethernet Switch Front Panel
Figure 6: 7-Port Ethernet Switch Rear Panel
DC Power Indicator -
indicates AC power is applied.
Ethernet LEDs -
indicates valid Ethernet
link, transmit and receive
for each connection when lit.
10/100 Base T Connections -
input/output ports for standard signals.
Neutrik Connector -
Allows connection of AC Line Cord 208V PowerCon Cable (supplied).
