Installation Instructions PST 2000 Series
3
CONTENTS
DIMENSIONAL DRAWING ..................................... 2
TOOLS REQUIRED FOR INSTALLATION.............. 3
PARTS LIST .............................................................. 3
PST INSTALLATION ................................................ 4
Select Mounting Location........................................ 4
Flag Extender Installation (OPTIONAL).................. 4
Mount the PST ........................................................ 5
ATTACH PSB TO THE DISPLAY............................. 6
INSTALL THE DISPLAY .......................................... 6
REMOVE THE DISPLAY.......................................... 6
TOOLS REQUIRED FOR
INSTALLATION
Drill and drill bit set
Socket wrench set
#2 Phillips Screwdriver
NOTE: Other tools may be required depending on your
method of installation.

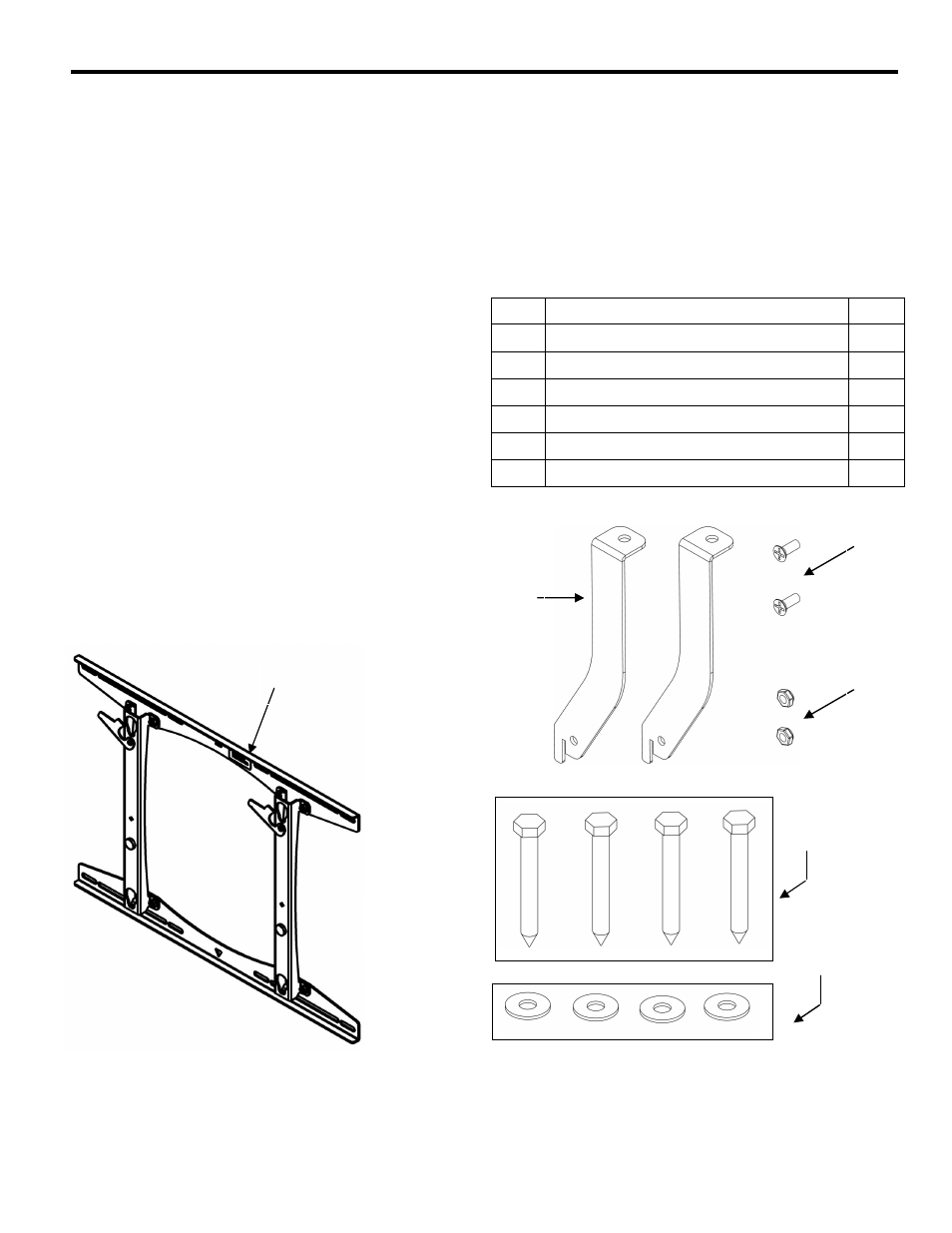

Figure 1. Parts
PARTS LIST
Prior to assembly, unpack the carton completely. Verify
contents listed in Table 1 and Figure 1.
Read installation instructions completely. If you are
missing any of the listed parts, contact Customer Service
at: 1-800/582-6480.
Table 1. Parts List
REF DESCRIPTION QTY
10 Plasma Static Mount 1
20 Flag Extender 2
30 Phillips Machine Screw, 10-24 x ½” 2
40 Thin Nylock Nut, 10-24 2
50 Lag Bolts, 5/16” x 2-½” 4
60 Flat Washer, 5/16” 4
4 Lag Bolts
50
4 Washers
60
10
40
30
20
