C omponent V ideo (CVI) I nput C onnections
1
c
i/ri.ri L I. Ill.M
The description for the component video
connectors may differ depending on the
DVD player or accessory digital source
equipment used (for example, Y, Pb, Pr; Y,
B-Y, R-Y; Y, Cr, Cb). Although abbrevia­
tions and teniis may vary, the letters b and r
stand for the blue and red color component
signal connectors, and Y indicates the Imiii-
nance signal. Refer to your DVD or digital
accessory owner’s manual for definitions and
connection details.
omponent Video inputs provide
^for the highest possible color
and picture resolution in the play­
back of digital signal source materi­
al, such as with DVD players. The
color difference signals
(Pb, Pr) and
the luminance (Y) signal are con­
nected and received separately,
which allows for improved color
bandwidth information (not possible
when using composite video or S-
Video connections).
M Connect the Component (Y,
i Pb, Pr) Video OUT jacks from
^ the DVD player (or similar
device) to the (Y, Pb, Pr) in(put)
jack on the TV. When using the
Component Video Inputs, it is
best not to connect a signal to the
AV in Video Jack.
Connect the red and white
# AUDIO CABLES to the Audio
right) output jacks on
the rear of the accessory device
to the Audio (L and R) AV 1 in
Input Jacks on the TV.
^ Turn the TV and the DVD (or
digital accessory device) ON.
Press the AV button or the
AM CH + or CH - buttons to
^ scroll the available channels
until CVI appears in the upper
left comer of the TV screen.
^ Insert a DVD disc into the
^ DVD player and press the
^ PLAY button on the DVD
Player.
The CVI connection will be dominate over the AV1
in Video Input. When a Component Video Device is
connected as described, it is best not to have a video
signal connected to the AV 1 in Video Input j ack.

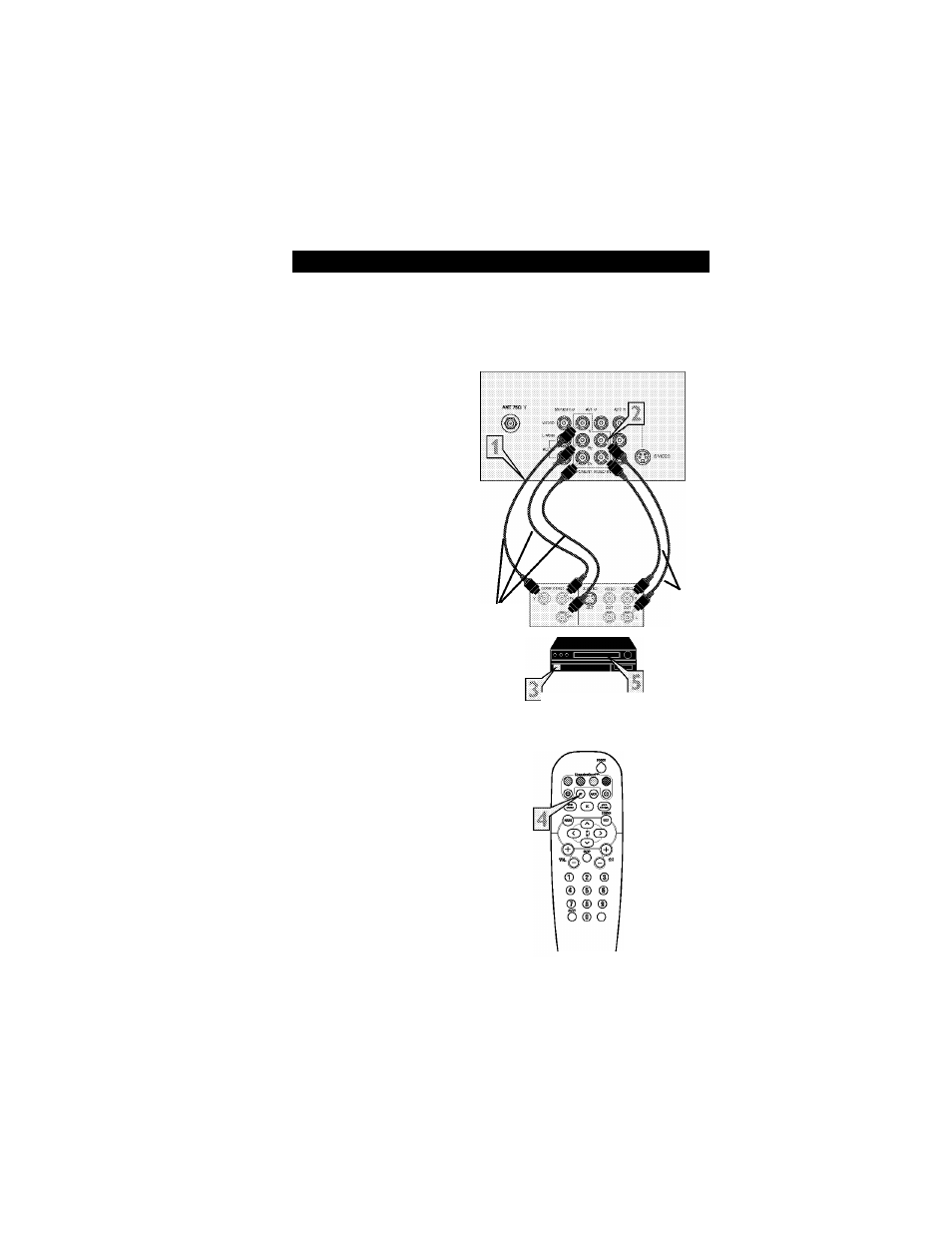

Component
Video Cables
(Green, Blue,
Red)
Back of TV
I Accessory Device
Equipped with
Component Video
Outputs
V___ J
Audio
Cables
(Red &
White)
