15
24

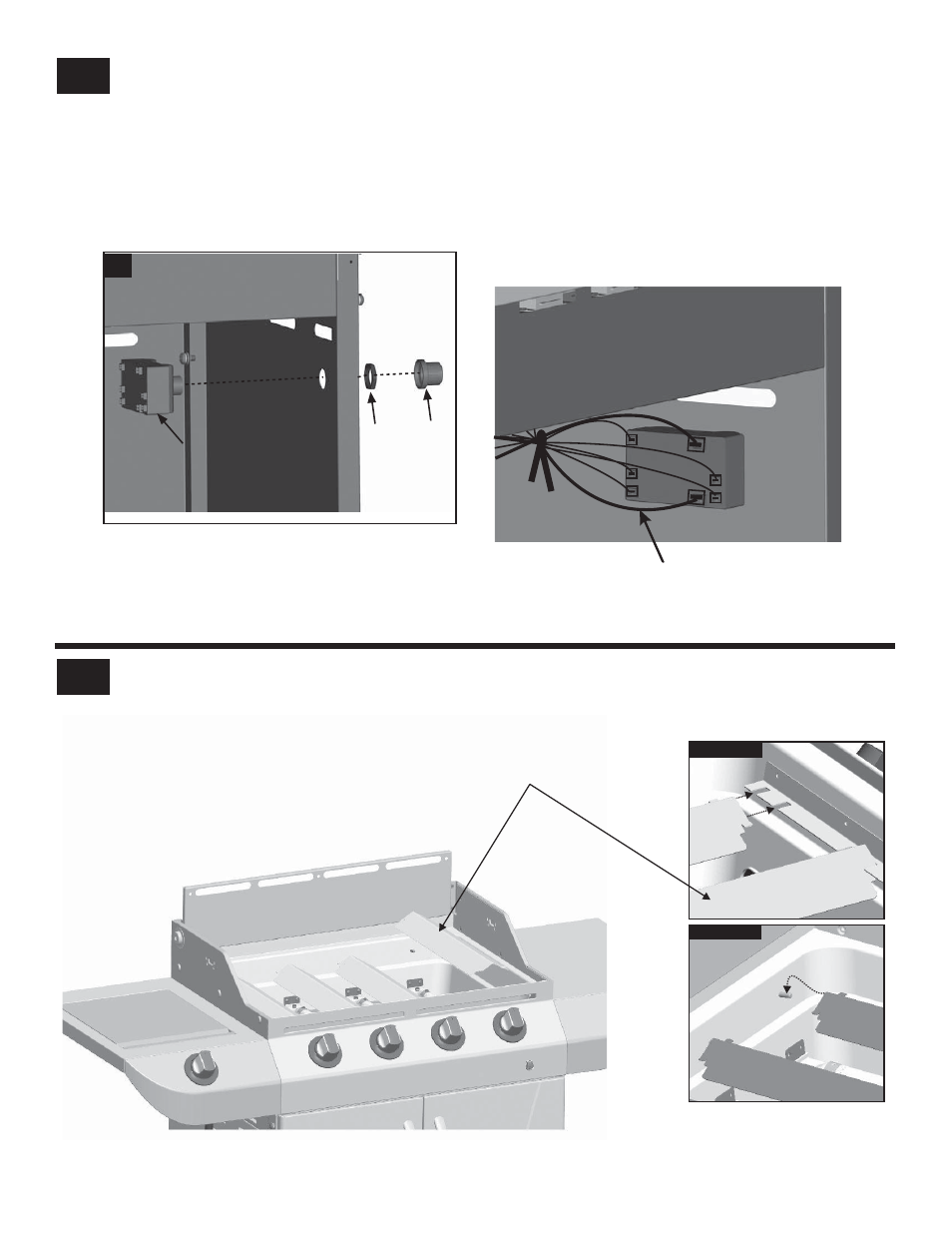

Install flame tamers by sliding one end of each flame tamer into slots at front of firebox and resting opposite end on pins in
back of firebox.
Back of firebox
Front of firebox
Flame tamer
Note: Some parts omitted for
clarity of illustration
Flame tamers
14
Connect each of the wires from the main burner electrodes, and sideburner electrode into the back of the Electronic Ignition
Module. T otal (5) connections.
Connect the two wires(A and B) from the switch wiring harness into the back of the Electronic Ignition Module.
Wire
1
2
3
4
5
A
B
Total (2) connections.
ignition module
Electronic
Right side panel
A
Release the cap and nut from electronic ignition module. Attach electronic ignition module to the cart right side panel with
the nut and cap, shown A.
Nut
Cap
NOTE: Switch terminals are larger than electrode terminals and should only be installed in location shown
as A, B. Do not untie the wires while attaching.
