13

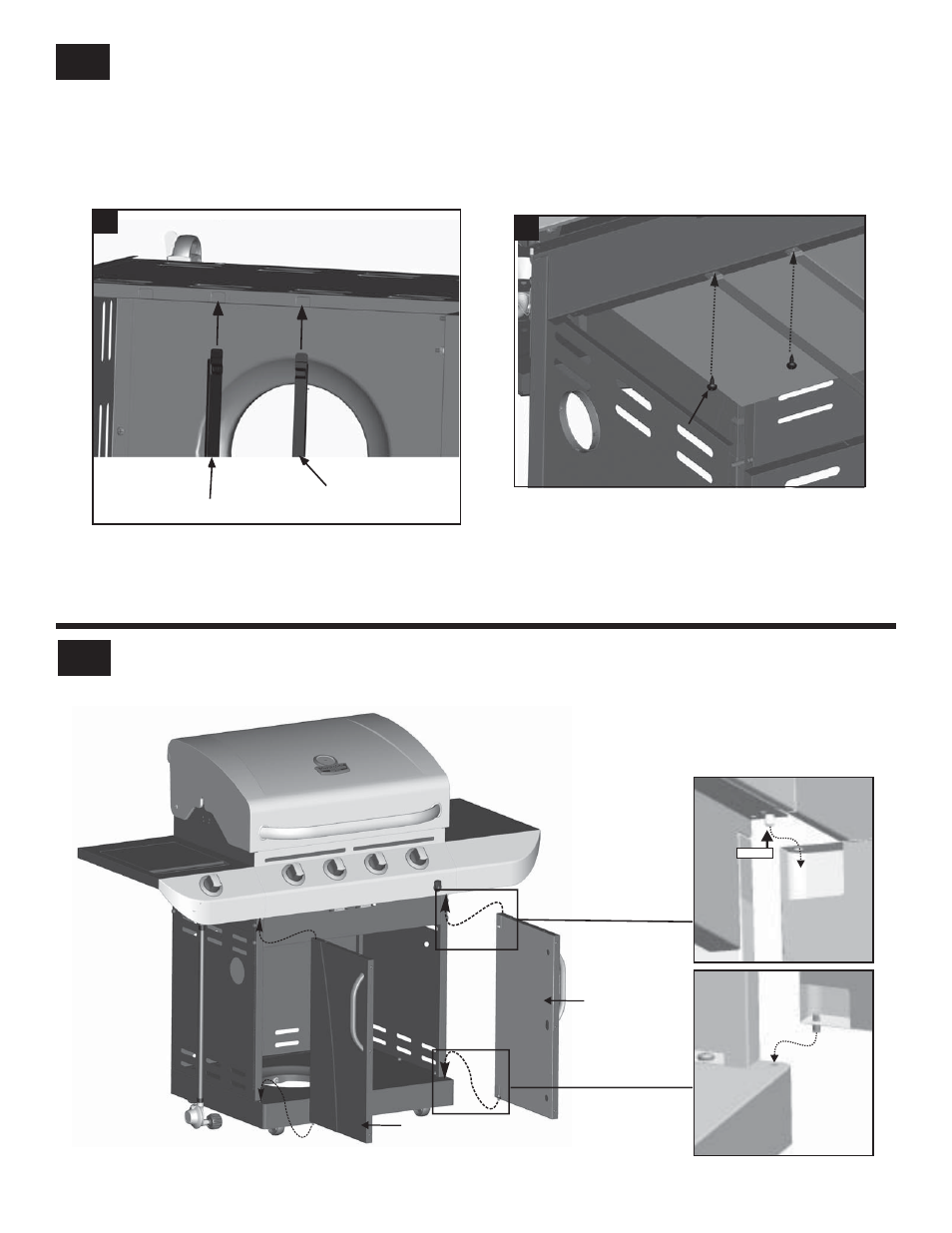

Insert hinge pin on bottom of doors into hole in bottom shelf. Press upper hinge pin in front brace, align hinge hole on top of
door, and release hinge pin into door.
23
12
Inside of cart, insert left and right grease tray rails into slots beneath grease tray opening in upper back panel, shown
A.
Attach right and left rails under front brace with two #8x3/8” self-tapping screws, shown B.
Cart lower back panel
Right rail
Left rail
Front Brace
Right rail
Left rail
#8x3/8”
self-tapping screw
for clarity of illustration
Note: some parts omitted
A
B
Left door
Hinge pin
on bottom
of door
Top of
door
PRESS
Right door
