Our Steep filter is a linear phase filter that has been optimised for stop band attenuation of close-in
aliasing images. Here we have traded a little attenuation of the very highest frequency response (-2dB
at 20kHz) and a little more pre- and post-ringing for a very steep attenuation just outside the pass
band. The Steep filter is able to attenuate aliasing at 22kHz by some 80dB.
Note: All filters exhibit the same ultimate roll-off of approximately 140dB.
ENGLISH
0
0 20 40 60 80 100
120
140
160
180

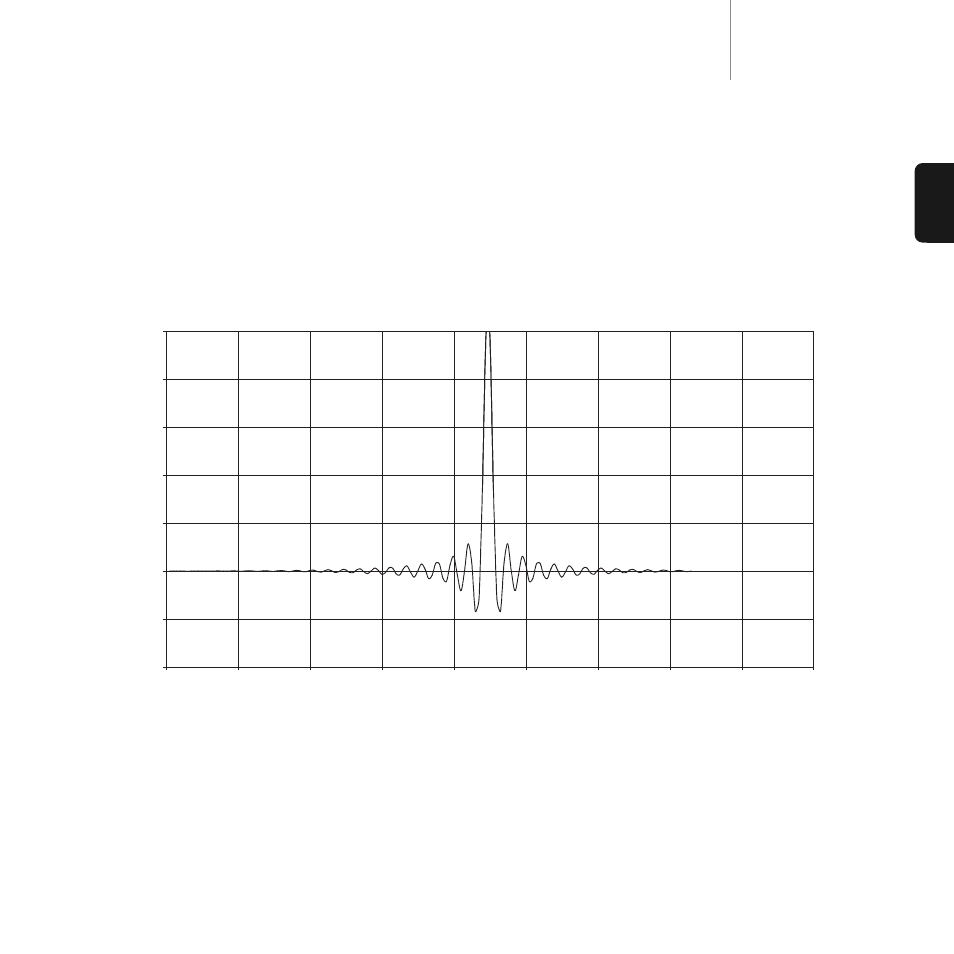

Impulse response
Time (samples)
Amplitude
