Cambridge Audio Upsampling Digital to Analog Converter azur DacMagic - Manual (Page 12)

12

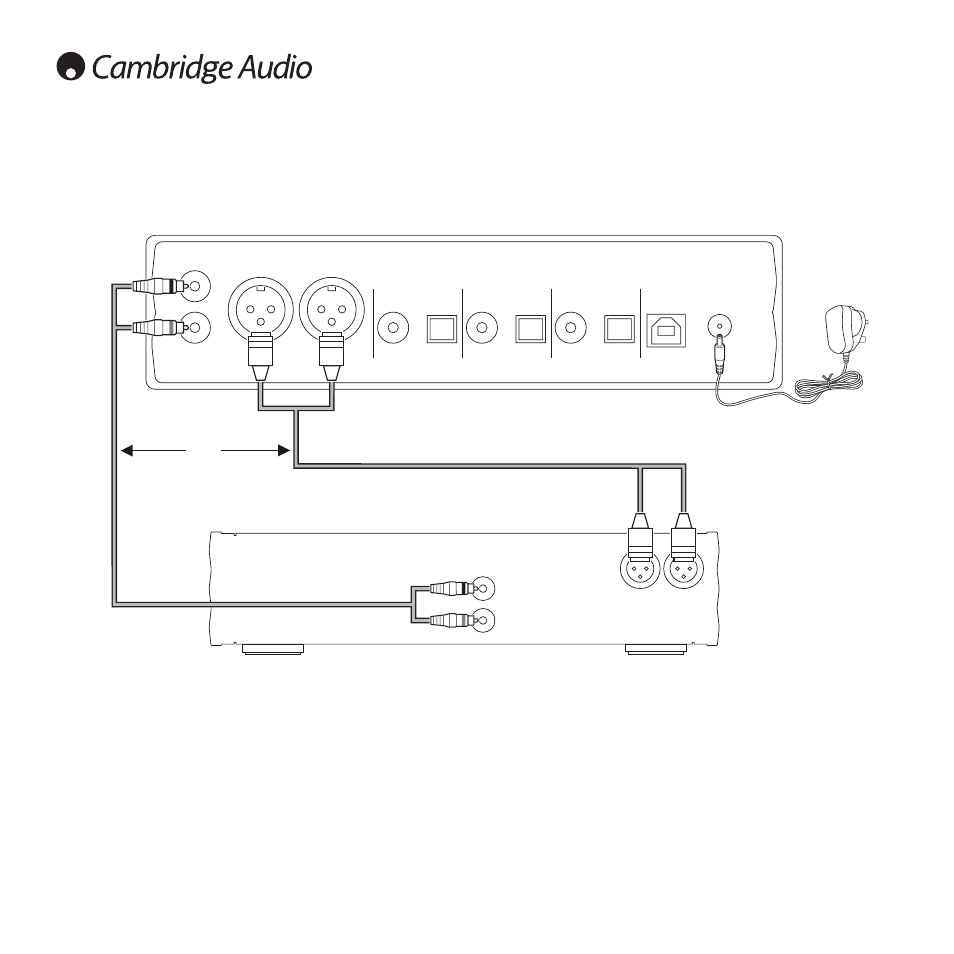

Audio output connections
L
L R
Unbalanced
Input
Balanced
Input
R
Digital Outputs
USB In
Balanced Output
Unbalanced
Output
Digital Inputs Digital Inputs
L
R
R L
Note: Do not turn on the unit until all connections have been made.
DacMagic
AC adaptor
Amplifier
OR
Use either the unbalanced (RCA/Phono) or balanced (XLR) outputs of the DacMagic. The XLR output
is slightly better in quality as it can reject interference and noise in the cable connection and is the
preferred option if your amplifier features balanced XLR inputs. It is possible to use the RCA phono
connections and the XLR balanced connections at the same time, e.g. for connecting to different
amplifiers or multi-room operations.
