DAH923
13

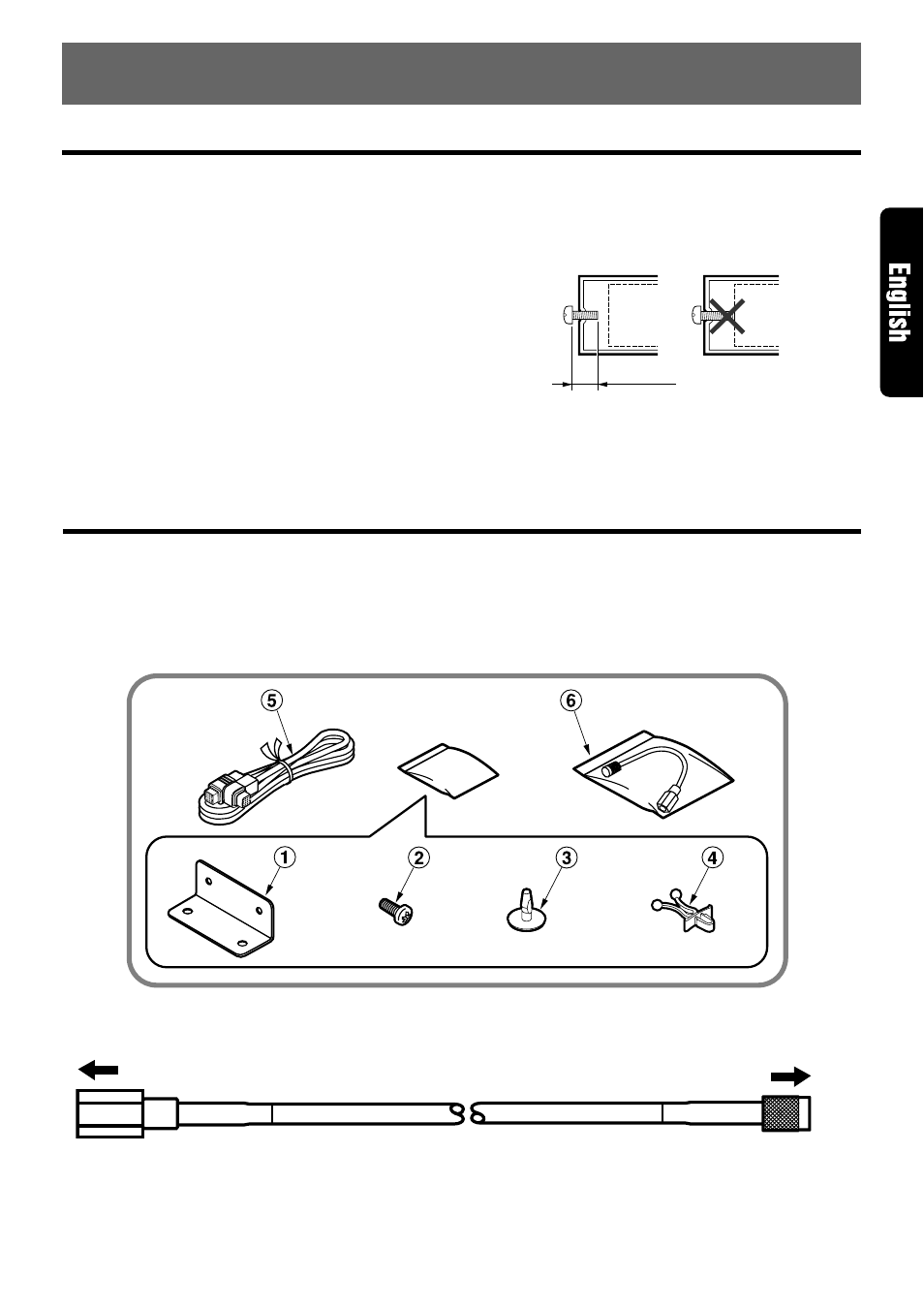

Accessories
1 Mounting bracket ............................ 2 pieces
2 Mounting screw .............................. 4 pieces
3 Canoe clip ....................................... 4 pieces 4 Cable clip ........................................ 1 piece
5 CeNET cable .................................. 1 piece
6 DAB Blackbox interface cable ........ 1 piece
7. INSTALLATION AND WIRE CONNECTION
1. Before starting, be sure to disconnect the
battery’s negative “
−” terminal to prevent
accidents due to short-circuits.
2. Location
Consider safety and operability when selecting
a place for installation. Avoid the following.
• Locations where the unit will hamper driving.
• Locations where the unit could injure passen-
gers if the car stops suddenly.
• Locations exposed to direct sunlight or hot air
from the heater, etc.
• Locations where the unit may be exposed to
rain or water.
3. Be sure to use the included screws and brack-
ets. Screws other than those supplied could
damage the unit.
Case Case
8mm max.
Damage
4. When drilling holes in the dashboard, etc., be
sure to check beforehand that there are no
harnesses or other wires inside.
Before Installation
DAB Blackbox interface cable
In this package you will find an interface cable
for the DAB antenna plug (SMB type
➞ FME
type).
In case you are using the Clarion DAB-antenna
ZCP-102-700 with the DAB blackbox DAH923,
please utilise the included interface cable.
ZCP-102-700
DAH923
