Notes:
• Be sure to read this chapter referring to the front diagrams of chapter “4. CONTROLS” on pages 6 and 7 .
• Only the buttons to operate the DAB function are shown in this manual.
5. NOMENCLATURE
Names of Buttons
Display Items (Function mode)
1 Operation status indication
2 DAB indication
3 AF (alternative frequency) indication
4 REG (regional) indication
5 TA (traffic announcement) indication
6 TP (traffic programme) indication
7 PTY (programme type) indication
8 INFO (information) indication
Display / Afficheur / Display / Display / Display
DXZ928R
DXZ828R/DXZ728R
ADZ628R

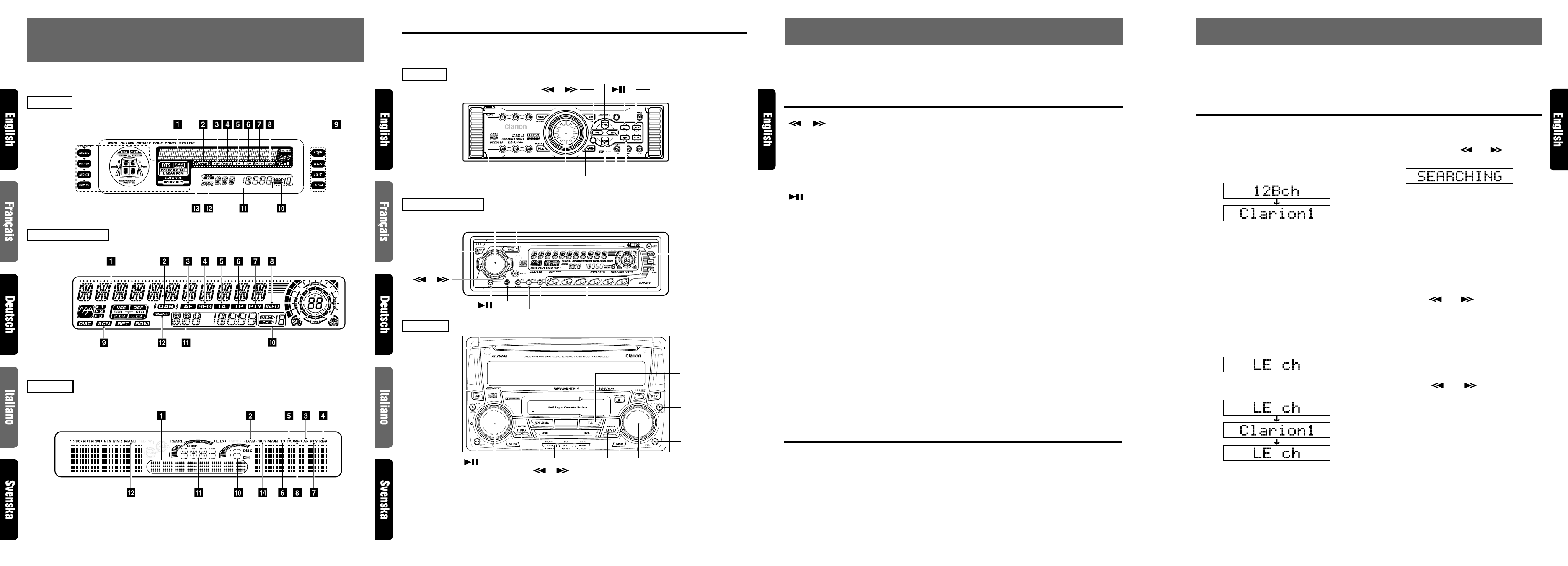

4. CONTROLS / LES COMMANDES / REGLER /
CONTROLLI / KONTROLLER
Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.
Remarque: Veuillez déplier cette page et vous référer aux schémas quand vous lisez chaque chapitre.
Hinweis: Bitte diese Seite ausfalten und beim Lesen der einzelnen Kapitel die Frontdiagramme beachten.
Nota: Si raccomanda di dispiegare questa pagina e far riferimento agli schemi anteriori quando si legge ciascun capitolo.
Observera: Vik ut denna sida för att kunna se figurerna över bilstereons framsida medan du läser de olika kapitlen.
Main unit / Appareil principal / Hauptgerät / Apparecchio principale / Huvudapparat
[ ], [ ]
[DIRECT] [ROTARY] [BND] [TA]
[ADJ/TITLE] [PS/AS]
[ ] [DISP]
[FNC]
[ ], [ ] [DISP]
[FNC] [ ] [PS/AS] [BND] [PRESET]
[M]
[TA]
[ADJ/TITLE]
[VOLUME]
[ ], [ ]
[ ] [TA] [DISP] [DIRECT]
[PS/AS]
[ADJ/TITLE]
[ROTARY] [FNC]
[BND]
CONTROLS / LES COMMANDES / REGLER / CONTROLLI / KONTROLLER
Digital Radio / DAB Operations
Listening to the DAB station
1. Press the [FNC] button to select DAB mode.
2. When the unit receives a DAB station, the
display changes in the following order:
Frequency channel
➜ service label
Switching displays
Press the [DISP] button for 1 second during the
Main (service label) display to select Main
(service label) or Sub (PTY).
Note:
• The display shown in the normal reception mode
and the preset reception mode is the same when
a DAB station is received.
3. When the unit does not receive a DAB station,
the display changes in the following order:
–Normal reception mode–
–Preset reception mode–
Notes:
• The number of programmes and broadcasting
times depend on the DAB stations.
• When the strength of DAB signals is weak, audio
output is muted.
6. OPERATIONS
Notes:
• Be sure to read this chapter referring to the front diagrams of chapter “4.CONTROLS” on page 6 and 7.
• The displays shown in the following instructions are merely representative examples. The actual displays
may differ depending on the model connected.
DXZ928R
ADZ628R
DXZ828R/DXZ728R
9 SCN (scan) indication
(DXZ928R/DXZ828R/DXZ728R)
0 Preset channel indication (1 to 6)
! Function mode indication
@ MANU (manual) indication
# ST (stereo) indication (DXZ928R)
$ SUB indication (ADZ628R)
Seek tuning
1. Press the [FNC] button to select DAB mode.
2. Press and hold the [ ] or [ ] button for
1 second or longer.
∗ “SEARCHING” appears in the display.
3. “DAB” lights up in the display when the main
unit receives a DAB station.
∗ The main unit stops the seek tuning when it
cannot find a DAB station. The display returns
to the previous mode.
Manual tuning
1. Press the [FNC] button to select DAB mode.
2. Press and hold the [BND] button for 1 second
or longer. “MANU” lights up in the display.
3. Press the [ ] or [ ] button to select a
station.
∗ If no operation is performed for more than 7
seconds, manual tuning is cancelled and the
display returns to the previous mode.
Switching programmes
1. Press the [FNC] button to receive a DAB sta-
tion.
2. Press the [ ] or [ ] button to switch
programmes in the DAB station.
Note:
• The programme name may be the same depending
on DAB programmes.
[ ], [ ] buttons
• Selects a station while in the radio mode.
These buttons are used to make various
settings.
[FNC] button
• Switches the operation mode among the
radio mode, etc.
[ ] button
• Enter button while in the adjust mode.
[DISP] button
• Switches the display indication (Main display,
clock display).
[TA] button
• Use the button to set the TA (Traffic
Announcement) standby mode.
[PS/AS] button
• Performs preset scan while in the radio mode.
[BND] button
• Switches the band, or seek tuning or manual
tuning while in the radio mode.
[ADJ/TITLE] button
• Press and hold the button for 1 second or
longer to enter the adjust mode.
[ROTARY] knob
(DXZ928R/DXZ828R/DXZ728R)
• Press the front part of the knob to adjust. The
knob will pop up.
• Adjust the volume by turning the knob
clockwise or counterclockwise.
• Use the knob to perform various settings.
[DIRECT] button
(DXZ928R/DXZ828R/DXZ728R)
• Stores a station into memory or recall it
directly while in the radio mode.
[VOLUME] knob (ADZ628R)
• Adjust the volume by turning the knob
clockwise or counterclockwise.
• Use the knob to perform various settings.
[PRESET] knob (ADZ628R)
• Stores a station into memory or recall it
directly while in the radio mode.
• In adjust modes, use to select items for
adjustment.
Note:
To operate [PRESET] knob:
1. Turn knob about 30 deg. (adjust item will
change).
2. Release finger (knob will return to original
position).
3. Turn knob again (adjust item will change).
[M] button (ADZ628R)
• Use to change and store items in preset
memory.
