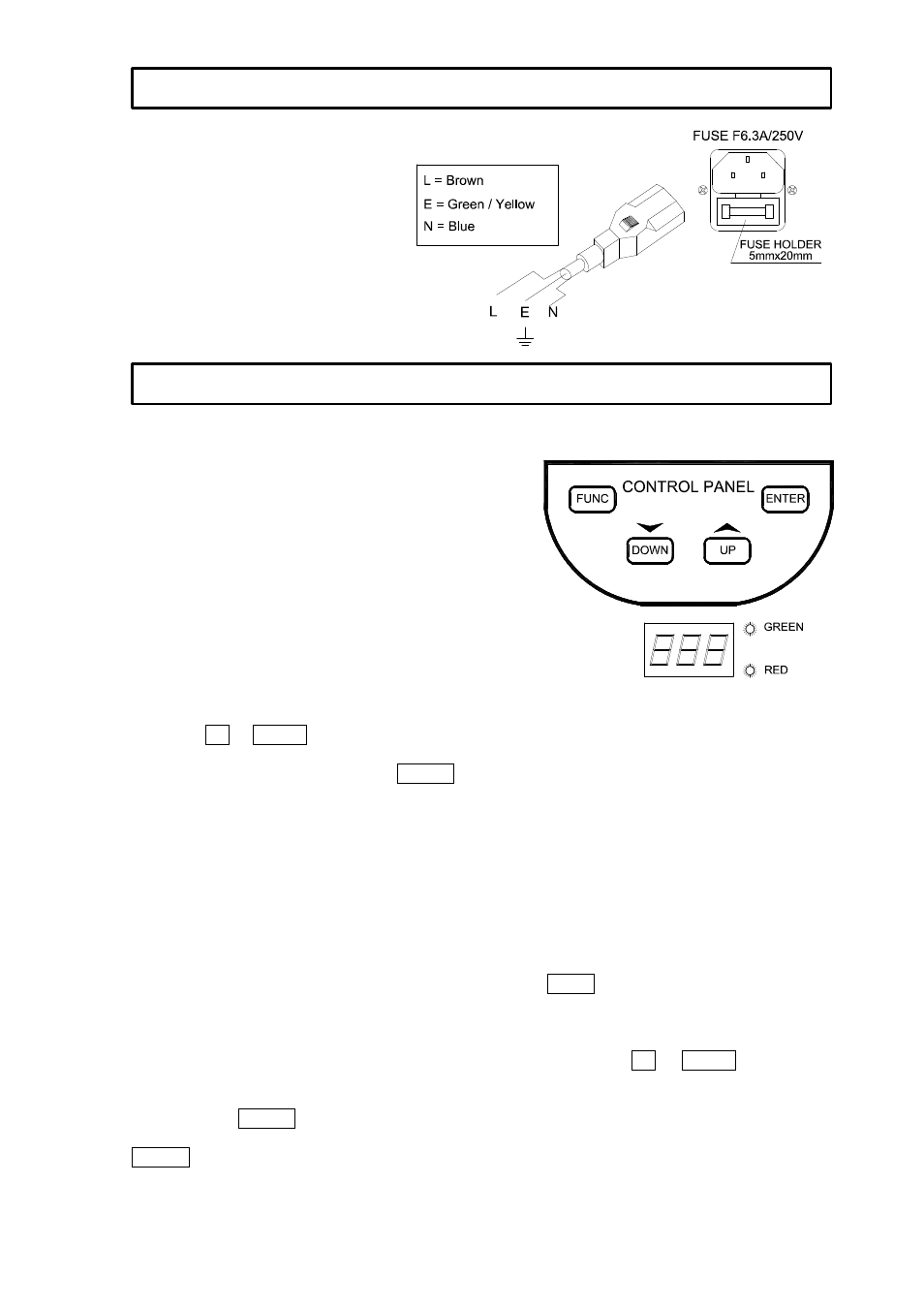

Use the plug provided to connect
the mains power to the projector
paying attention to
the voltage and
frequency marked on the panel of
the projector. It is recommended that
each projector is supplied separately
so that they may be individually
switched on and off. It is
recommended that
the
green/yellow conductor must
be earthed correctly.
The projector may be controlled by sound, auto
programmes or a controller, and it may be operated in
Stand-Alone automatic mode, in Master/Slave synchro
mode or in Controller mode. With the touch-switches
and the digital display screen, DMX start address can
be easily set and the various setup options may be
configured.
TO SET THE DMX START ADDRESS
The display shows the DMX start address after the
projector is switched on (if you have already
set the
DMX start address and saved it, the screen will display
the last setting).
Press the UP or DOWN buttons to select the required DMX start address in the display.
Confirm your choice by pressing the ENTER button, this will save and set the DMX start address.
The display will show the latest setting each time when the projector is powered up.
In Stand-Alone mode, the DMX start address can be set at random.
In the Controller mode and Master/Slave mode, the DMX start address must be set correctly.
(Refer to “Controller mode” and “Master/Slave mode” sections).
SETUP OPTIONS - PROJECTOR CONFIGURATION
To browse through the various Setup Options, press the FUNC button consecutively. There are
11 option codes (1~9 and A, b), each code has a specific function. The functions provided are
listed in the following table.
Once you have selected the desired operation code, press the key UP or DOWN to select “n”
(means OFF) or “y “ (means ON). N = ON, Y = YES.
Press the key ENTER to save the selected function and configuration. If the display is showing
“y”, then the setting has been enabled. In the same way, if it was showing “n” when you pressed
ENTER the option has been disabled.
The green LED will flash during this operation.
OPERATION
POWER SUPPLY - MAINS
