Pilot 1200 wash EN.doc 4/16
2
5
6
106
To pass 2 SAFETY CORDS
through 4 HOLES for safety!
WARNING
WARNING
through 4 HOLES for safety! To pass 2 SAFETY CORDS CORD SAFETY
HOLE
CLAMPS
(2PCS)
HANDLES
(2PCS)
SAFETY CORDS
(2PCS)
SAFETY CORD
PASSING THROUGH
4 HOLES FOR
HOLE
SAFETY
CORD

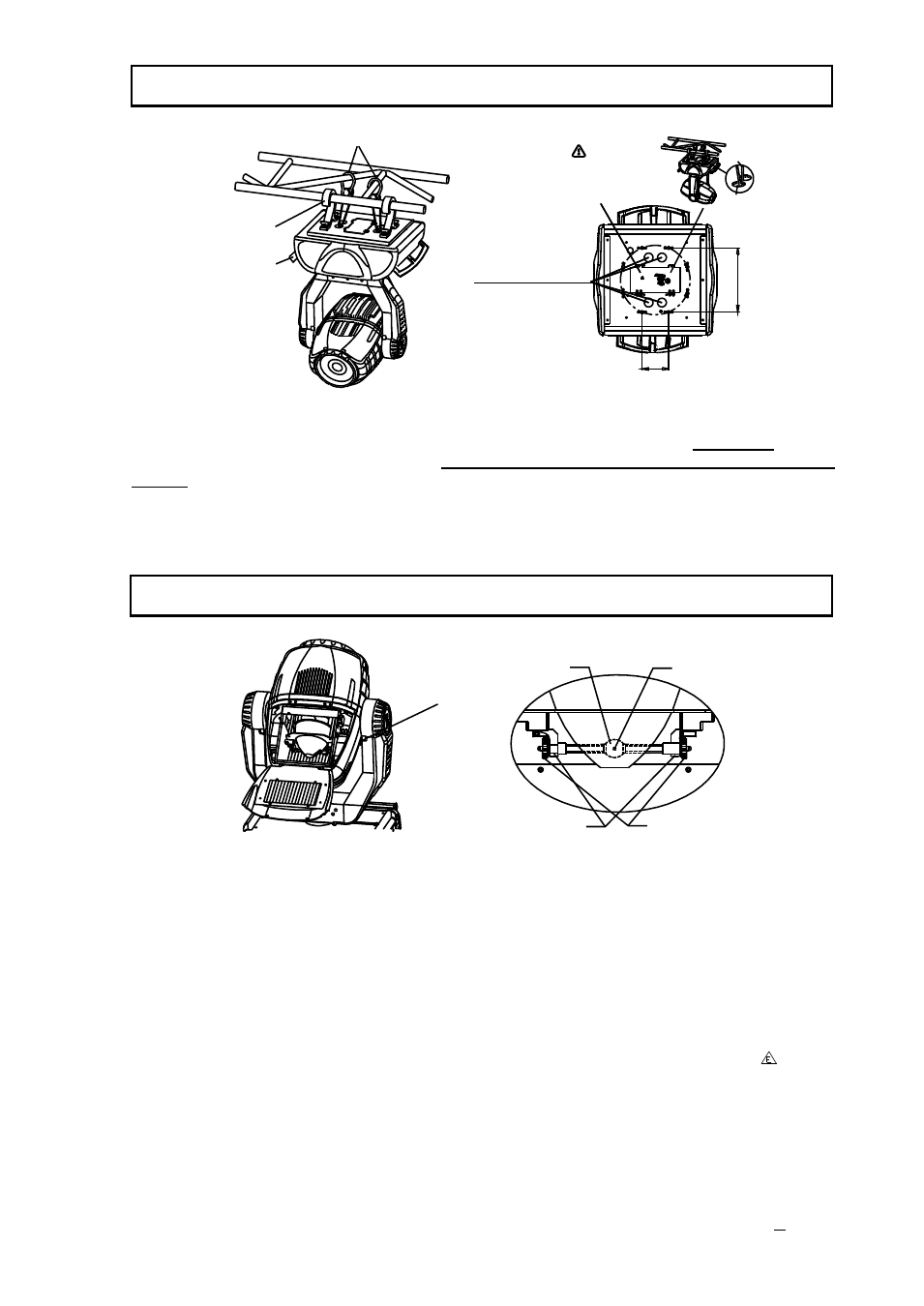

Take 2 clamps and 2 safety cords out from the package and mount 2 clamps on the
underside of fixture with 2 retainers attached to each clamp. Hang the fixture on the
structure and fasten the screws attached to each clamp. (Read the WARNING on the
underside of the base as shown above) To pass 2 SAFETY CORDS through 4 HOLES for
safety! Always ensure that the projector is firmly anchored to avoid vibration and slipping
whilst functioning. Always ensure that the structure that you are going to mount the
projector is secure and is strong enough to support a weight of PILOT 1200 WASH.
WARNING: 1. Unlock the PAN and TILT before the 1
st application of projector for safety.
2. The projector MUST be lifted or carried by the HANDLES instead of clamps.
TILT LOCK
PST BULB
2 SPRING PLATES 2 NUTS
Lock tilt before fitting/replacing the lamp.
Loosen 2 M5 screws and open one of the rear covers, you can see the structure as shown
in the figure above.
Loosen 2 nuts at the both ends of lamp and take out the worn­out lamp. Suggest to free one
end after another.
Fit new lamp and fasten 2 nuts at the both ends of lamp. Notes: don’t touch the bulb of the
new lamp with bare hand so as not to influence the beam output; the PST (pumping stem tip
off) on the bulb facing the rear cover with fans perpendicularly and being not in the beam’s
way is a must and aids cooling.
Close the rear cover and fasten 2 M5 screws.
WARNING: The MSR series are high­pressure lamps with external igniters (
). Care
should always be taken when handling these lamps. Always read the manufacturers
"Instructions for use" enclosed with the lamp.
FITTING THE LAMP
INSTALLING THE PROJECTOR
