CONTROLLER MODE – DMX 512 OPERATION
Century Colour adopts international standard DMX 512
protocol. You may use controller to control many
luminaires via regulate the rotary DIP switches. (For detail
please refer to “DMX start address setting table”.)
8/14 Century Colour 2500.manual.doc

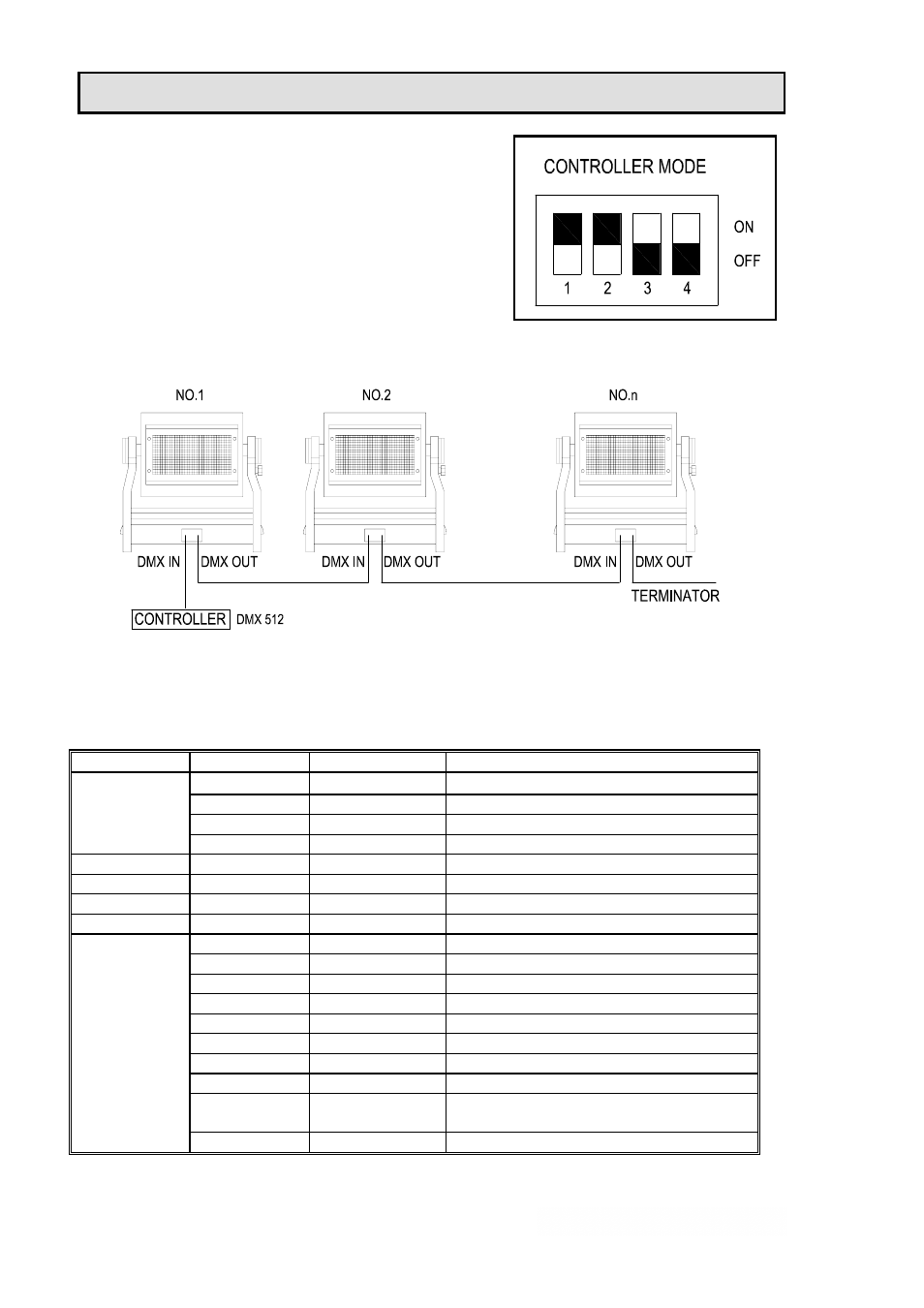

Regulate all DIP switches as shown in the figure on the
right. Now, all the luminaires will work under the controller.
Connect the controller’s output to the first luminaire’s input,
and connect the first luminaire’s output to the second
luminaire’s input. The rest may be deduced by analogy.
Eventually connect the last luminaire’s output to a DMX terminator as shown below.
DMX CONTROL CHANNEL FUNCTIONS
The Century Colour has 6 channels. They are shown in the following table.
CHANNELS DMX VALUE PERCENTAGE DESCRIPTION
0-63 0%-25％ Slow speed
64-127 25%-50% Medium speed
128-191 50%-75% Medium to high speed
1
Motor speed
adjust
192-255 75%-100% High speed
2 Cyan 0-255 0%-100% White to cyan continuous change
3 Yellow 0-255 0%-100% White to yellow continuous change
4 Magenta 0-255 0%-100% White to magenta continuous change
5 Dimmer 0-255 0%-100% Shutter to open continuous change
0-25 0%-10% White
26-51 10%-20% Cyan
52-77 20%-30% Yellow
78-103 30%-40% Magenta
104-129 40%-50% Blue
130-155 50%-60% Red
156-181 60%-70% Green
182-207 70%-80% Slow change colours in sequence
208-233 80%-90%
Medium-speed change colours in
sequence
6 Auto
colours
changing
234-255 90%-100% Fast change colours in sequence
When use the function of CYM of continuous colours mixing, the value of channel 6 must be set
“00”.
