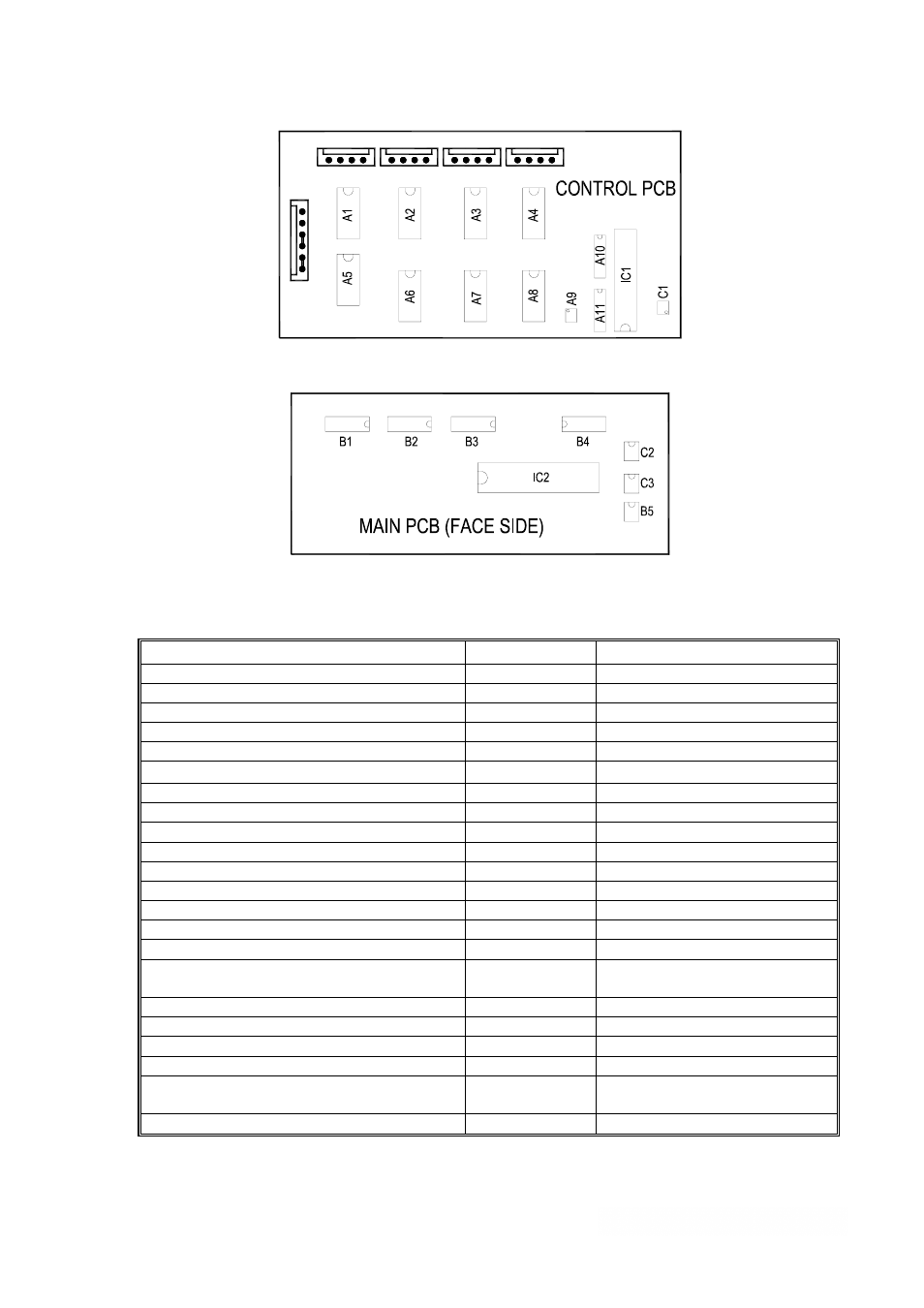

COMPONENT ORDER CODES
NAME PART NO. REMARK
TRANSFORMER 040030022 230V/50Hz
IGNITOR 040090004 230V/50Hz
BALLAST 040070033 230V/50Hz
RELAY 192010009 230V/20A
FILTER 193020001 10A
THERMOSTAT(2 pcs) 190010054 95℃/10A
FAN (4 pcs) 030069002 230V/23-24W
LAMP FOR CENTURY COLOUR 2500 100050026 MSI 2500W
LAMP FOR CENTURY COLOUR 2500L 100050042 MSA 2500 DE
CAP (3 pcs) 140010018 60µF/AC 370V
MOTOR (4 pcs) 030040029 17HS1013
IC1 230040060 MICROPROCESSOR 1
IC2 230040061 MICROPROCESSOR 2
A1~A4 170110004 DRIVER CHIPS
A5~A8 170110005 D/A CONVERTER CHIP
A9 170050002 ARITHMETIC AMPLIFIER
CHIP
A10 170040008 ENCODER CHIP
A11 170040024 FLIP-LATCH CHIP
B1~B3 170170031 DISPLAY CHIP
B4 170040030 TTL LOGIC CHIP
B5 170170012 BUS CHIP FOR
RECEIVING/TRANSMITTING
C1, C2, C3 (OPTICAL-COUPLE) 171000009
