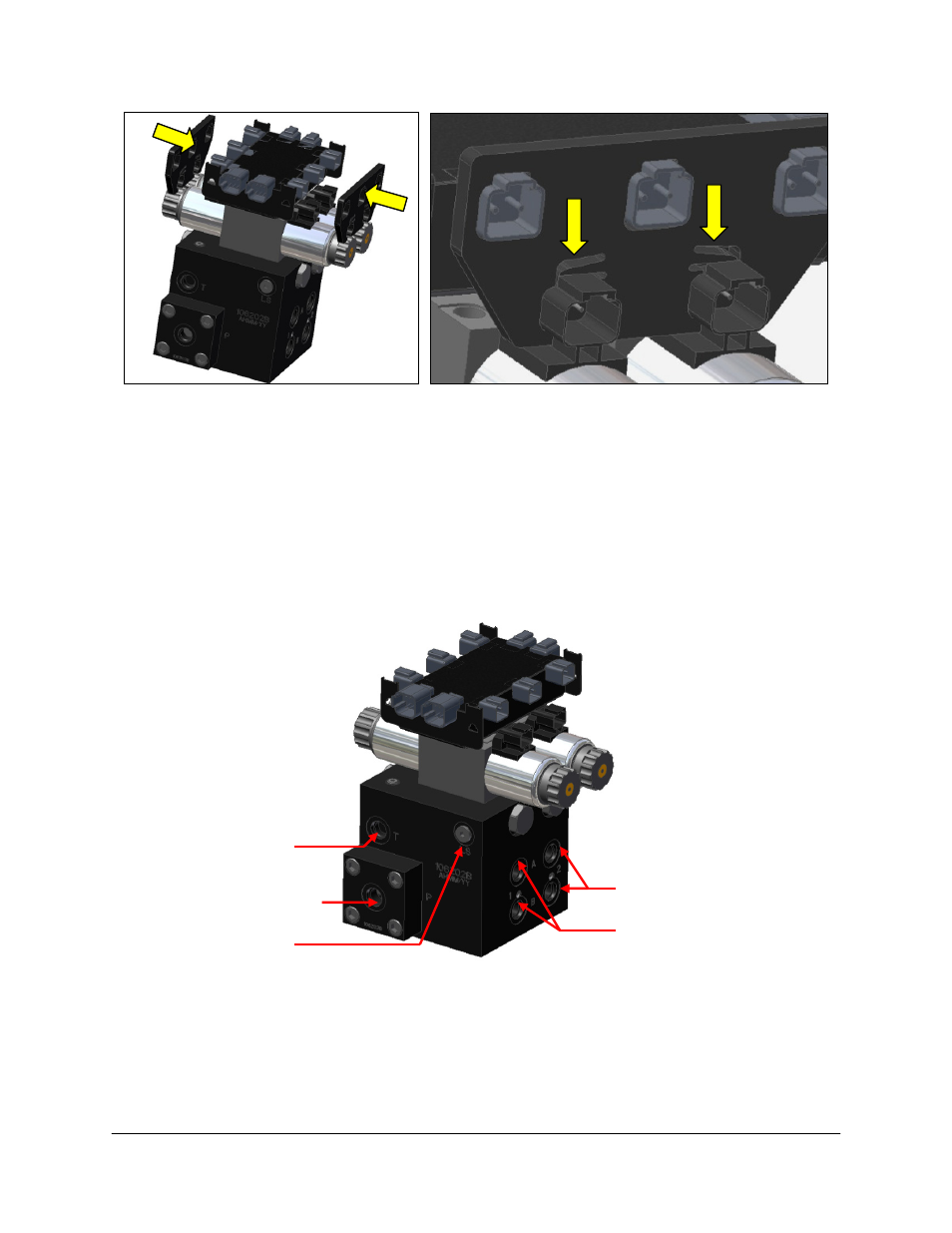

Figure 20: Valve Module Bracket Installation
5. Connect the valve module CANbus to cable C02 from the control module. Route cable
C03 from the other CANbus connector to the 8-way coupler.
6. With the valve module securely mounted to the valve block, connect the valve cables (C10),
to the valve coils. Insert the 2-pin plugs (P01) into the unused 2-pin connectors on the
valve module.
7. Connect the temperature probe to the valve block using the supplied 3/8” x 1/2” bolt.
Figure 21: Valve Module - Valve Coil Connections
Tank Port
Pressure Port
Sense Port
Left Tilt Ports
Right Tilt Ports
