INSTALLATION PROCEDURE
4.1 R OLL S ENSOR I NSTALLATION
Mount the roll sensor (E01) to the
included roll sensor bracket using the
machine screws and nylon lock nuts, as
illustrated in Figure 2.
The roll sensors must be
mounted tightly to the brackets.

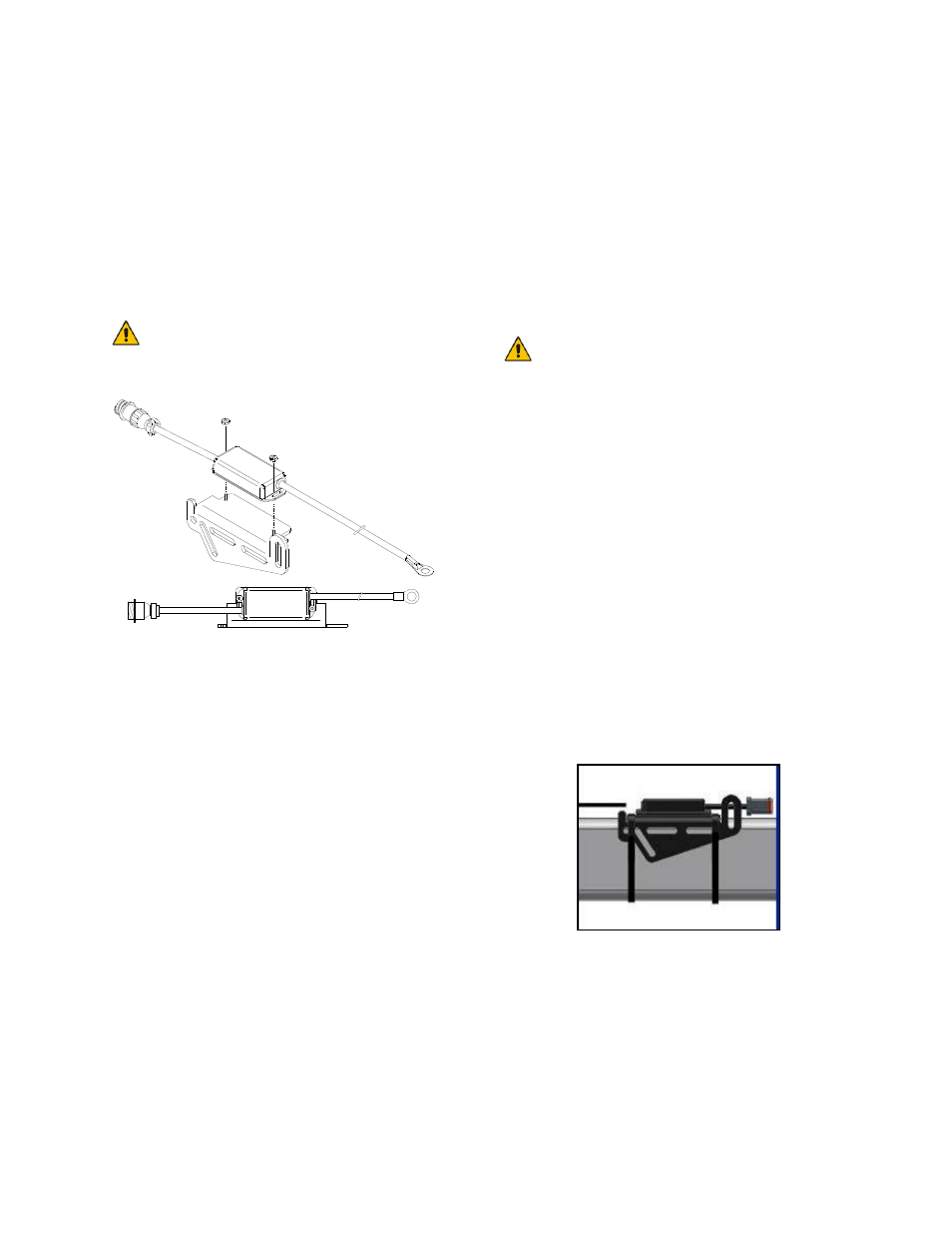

Figure 2: Mounting the Roll Sensor to
the Roll Sensor Mounting Bracket
When mounting the roll sensors, use the
following guidelines.
a) The intermediate frame roll sensor
must have the lowest serial number and
the chassis roll sensor must have the
highest serial number.
b) The intermediate frame roll sensor
must be the roll sensor with a
temperature probe.
c) Ensure the roll sensors are sitting
relatively level when the sprayer chassis
and boom are level.
d) The roll sensors must be mounted
with the circular AMP connector
facing towards the Right-Hand Wing
(when looking from the rear of the
sprayer).
The reference frame (chassis)
roll sensor must be the highest
serial number.
1. The reference frame (chassis) roll sensor
mounts on the chassis of the sprayer.
2. Ensure the roll sensors are relatively
level when the sprayer boom and chassis
are level.
3. All roll sensor cables should be pointing
towards the right hand wing of the
sprayer.
4. Ensure all roll sensors are mounted
adequately and that the cables provide
enough slack to allow sufficient boom
roll.
Figure 3: Reference Frame Roll
Sensor Mounting
