18
4.7 E
LECTRICAL
I
NSTALLATION
1. Install the UC4+ Control Panel (E01) in
the cab of the sprayer. Mount the panel
where it will be clearly visible and within
easy reach of the operator.
A good spot to mount the UC4+
control panel is on the right hand side
of the cab to the Roll Over Protection
Bar (ROP). Four pilot holes for the
screws provided need to be drilled to
facilitate the control panel mounting.
Another option is to purchase an
adapter for the flexible panel mount that
has a 3/8" NC threaded stud on the end
to bolt through an existing mount. You
can find these at your local outdoor
store as a RAM mount part number
RAM-B-236. (See
http://www.ram-
mount.com/ )

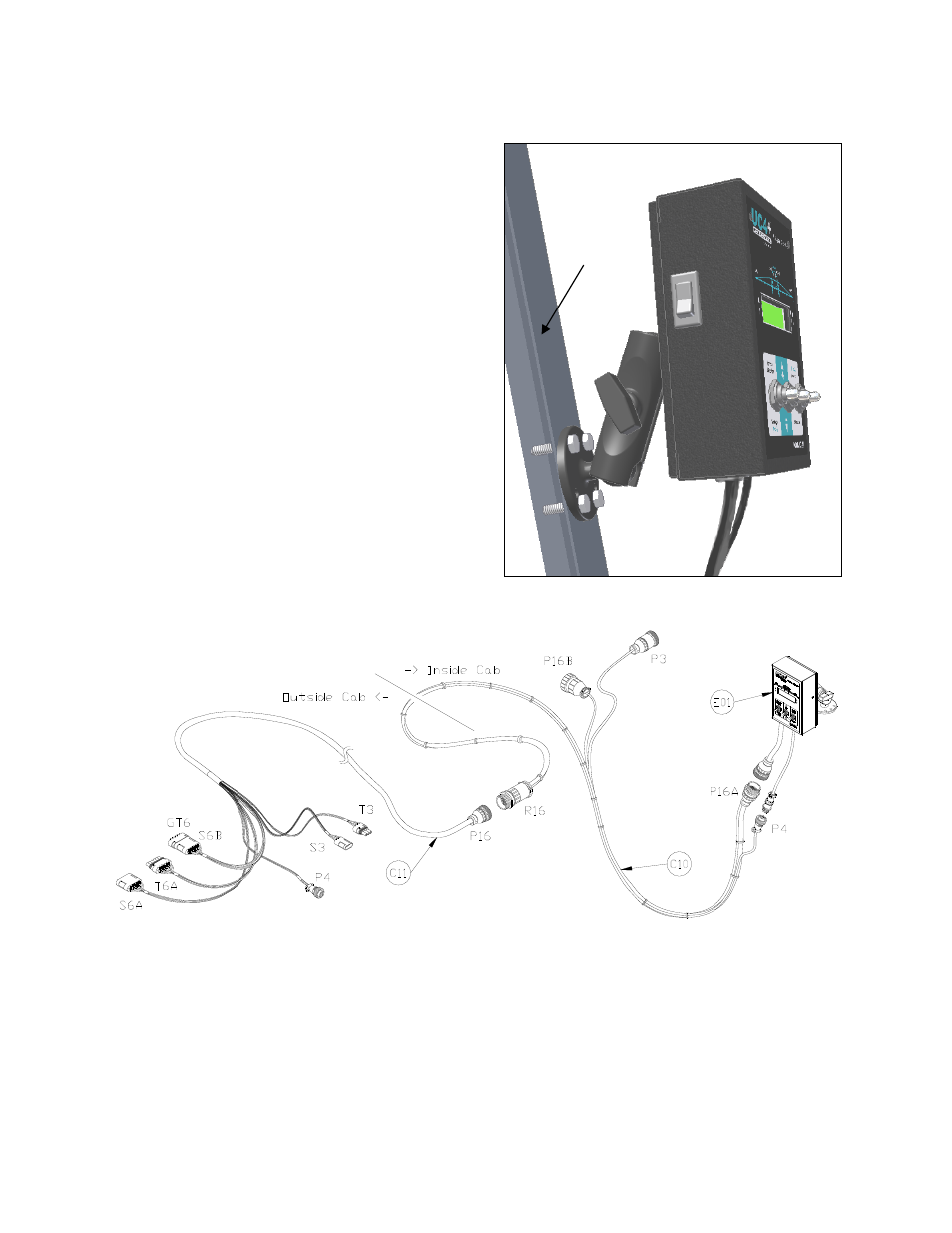

Figure 21: Control Panel Mounting
Figure 22: Cable Configurations: C10 and C11
2. Connect the UC4 power cable (C10)
to the UC4+ Control Panel in the
sprayer cab. Ensure that both plugs
(P16A and P4) are connected to the
panel (Figure 22).
3. Connect the 3-pin AMP connector (P3)
on C03 to an auxiliary power
connection in the sprayer cab. If an
appropriate connector cannot be found
it may be necessary to cut off the
connector(s) and splice into the existing
wiring.
ROP
