NORAC UC4+BC+RB1 - Manual (Page 15)

12
4.4 M
AIN
L
IFT
S
ENSOR
I
NSTALLATION
1. Assemble the main lift sensor bracket
(B11) as shown in Figure 10.

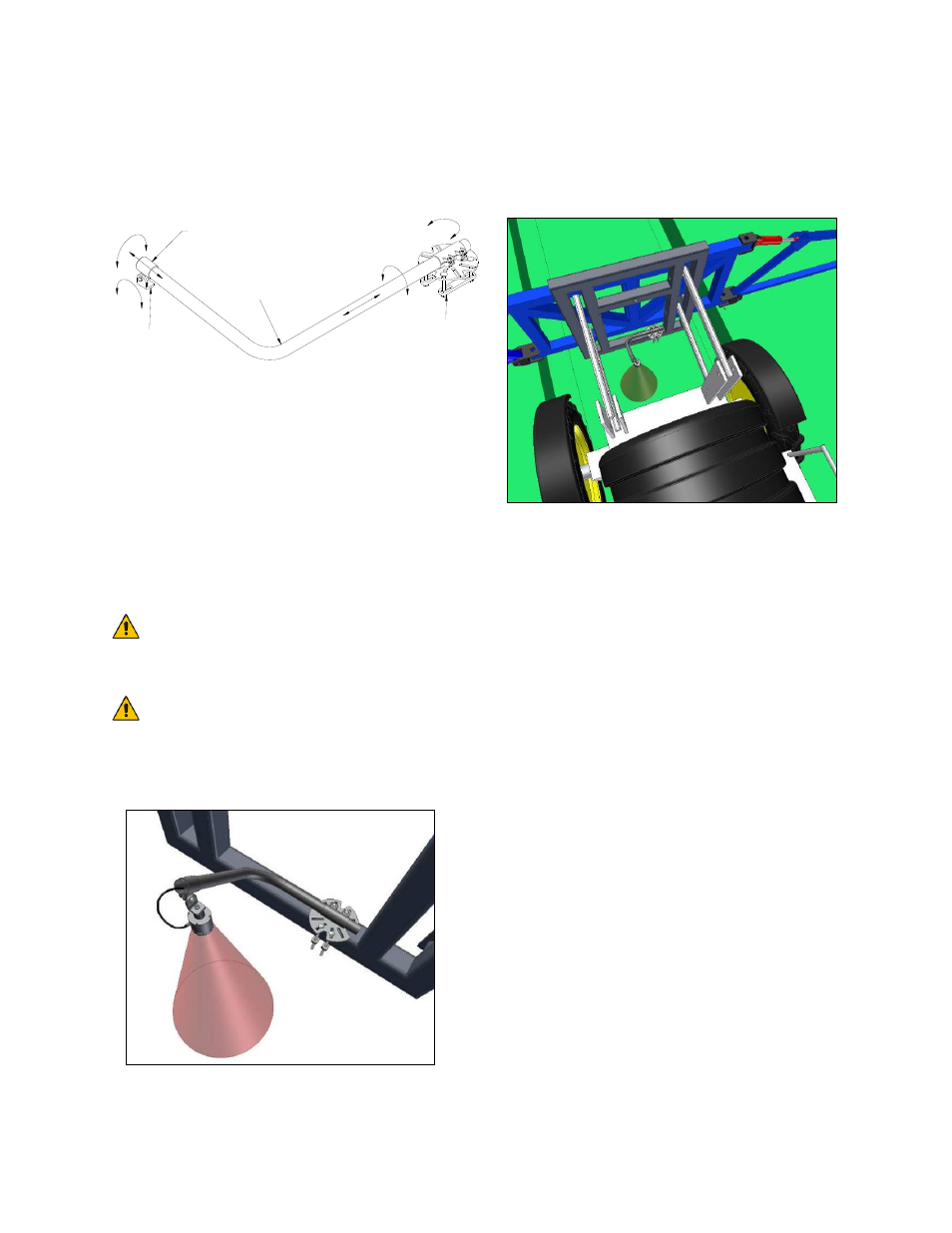

Figure 10: Main Lift Sensor Bracket
2. The bracket can then be mounted to
the lowest frame member on the
center section of the sprayer. The
bracket should be mounted so the
sensor mounting collar is in
approximately the center of the
sprayer and ahead of the boom
(Figure 11 and Figure 12).
The sensor mounting collar must
not be behind the sprayer’s
wheel.
The General Mounting Rules for
UC4+ Ultrasonic Sensors, from
the previous section, must be
followed.
Figure 11: Main Lift Sensor Bracket
Mounting Position
3. Mount the sensor onto the sensor
mounting collar (Figure 11).
Figure 12: Main Lift Sensor Mounted
in the Correct Location
Bracket Tube
Sensor
Mounting Tab
Sensor Mounting
Collar
Bracket Base
