18

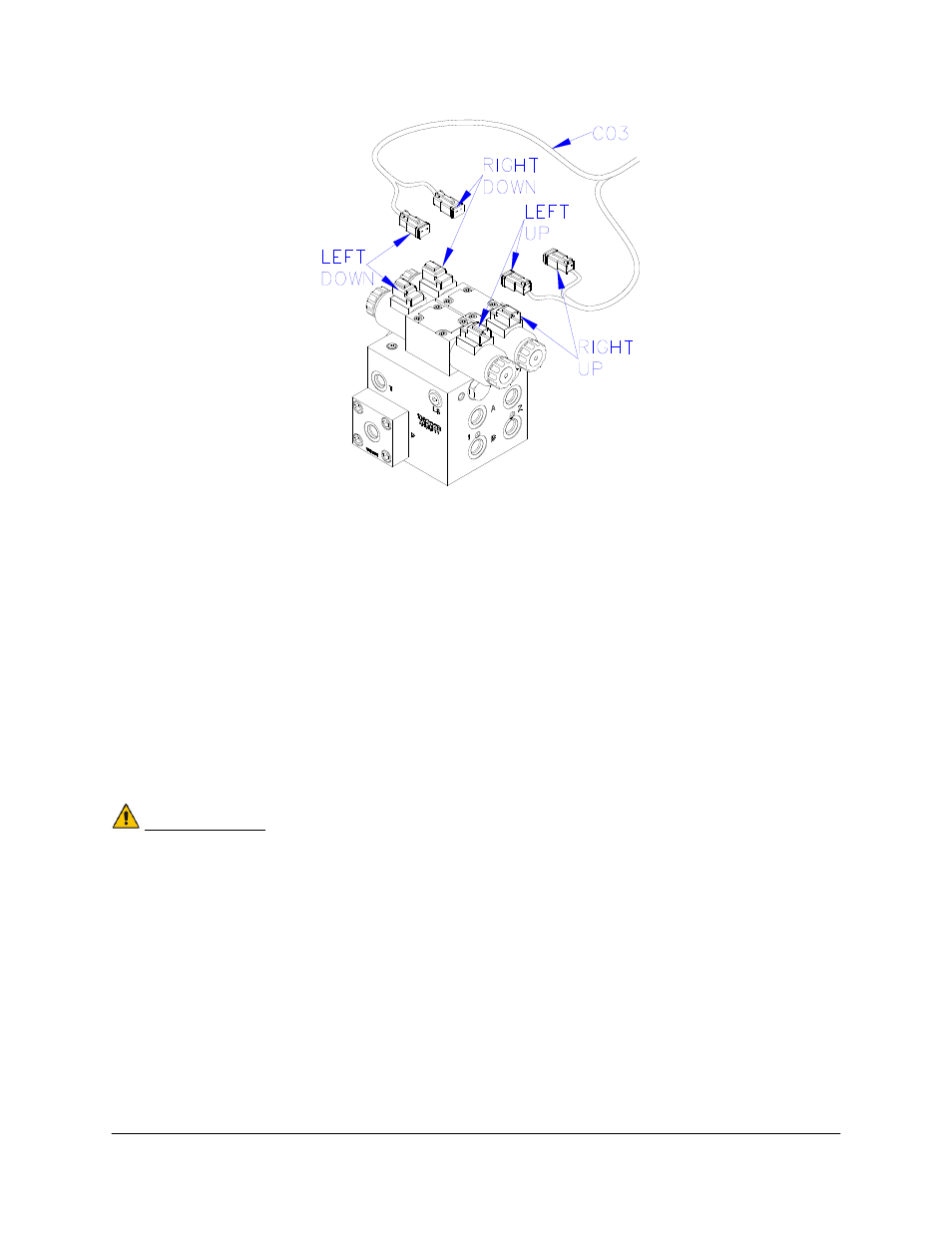

Figure 18: Valve Cable Connections
12. Fasten the 8-way coupler to the boom with cable ties. Connect C06 to the 8-way coupler.
13. Connect the boom frame roll sensor to the 8-way coupler. Connect the chassis roll
sensor to the 8-way coupler using cable C08 and a 2-way coupler (E12).
14. Connect two cables (C05) to the 8-way coupler and route along the booms to the wing
sensors. Follow existing cables and hoses to be sure the cable will not be pinched or
stretched.
15. At the sensor brackets, attach a 2-way coupler with terminator (E20) to the sprayer boom.
The 2-way coupler with terminator is the white two way coupler. Plug the sensor and the
CANbus cable into the 2-way coupler.
IMPORTANT:
Provide enough slack in all cables to account for the movement of the main
section, parallel lift, and FOLDING boom movement.
