5.4 Roll Sensor Mounting Guidelines: High Pendulum Booms
1. When mounting the roll sensors, mount the lowest serial number on the boom frame and
the highest serial number on the chassis (non-pivoting portion of the sprayer).

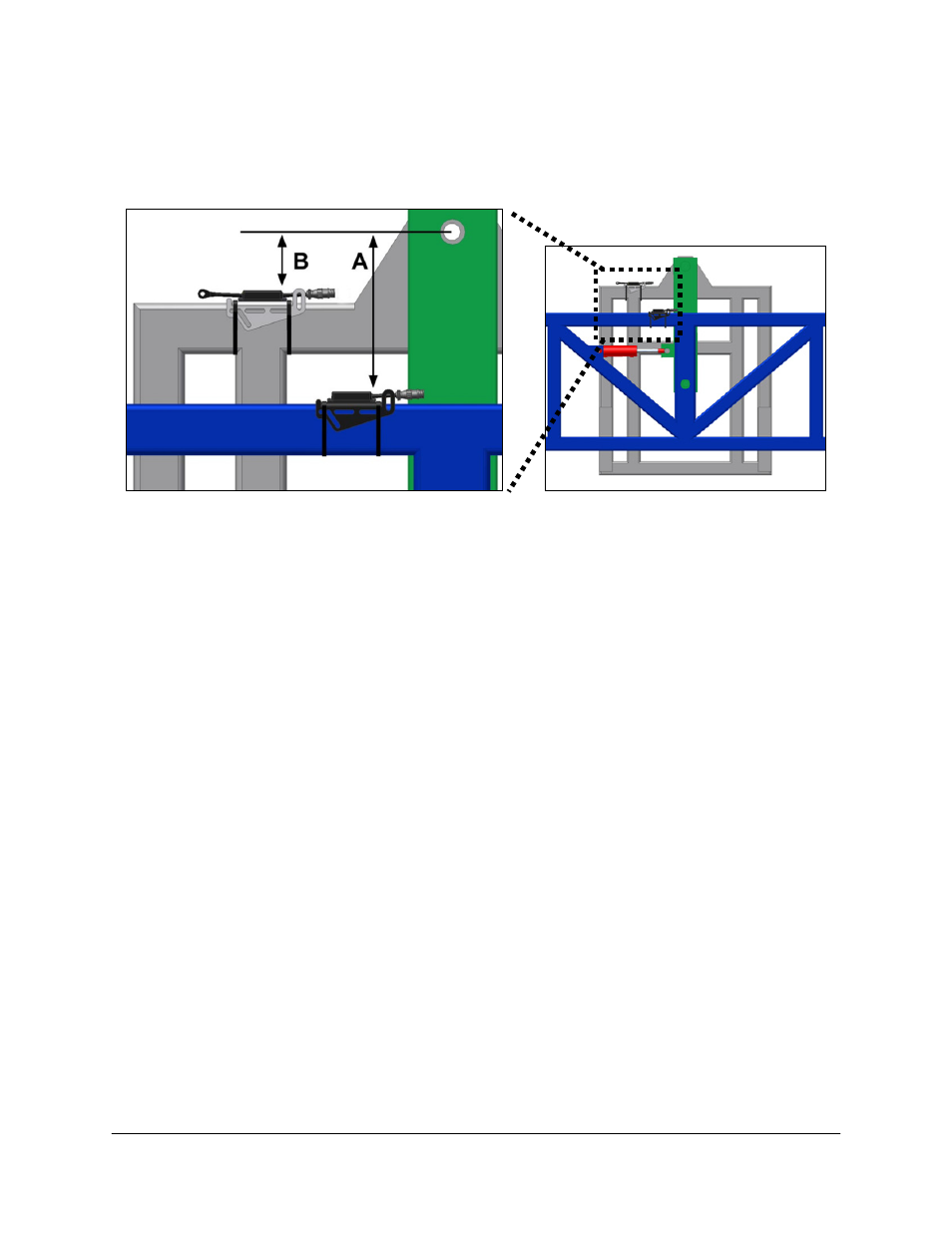

Figure 16: Roll Sensor Mounting on a High Pendulum Boom
2. Ensure the roll sensors are relatively level when the sprayer boom and chassis are level.
3. Both roll sensor cables should be pointing towards the right hand wing of the sprayer.
4. Ensure both roll sensors are mounted adequately and that the cables provide enough slack
to allow sufficient boom roll.
