19
6.4 Roll Sensor Mounting Guidelines: High Pendulum Booms
1. When mounting the roll sensors, mount the roll sensor without the temperature probe on
the boom frame and the roll sensor with the temperature probe on the chassis (non-
pivoting portion of the sprayer).

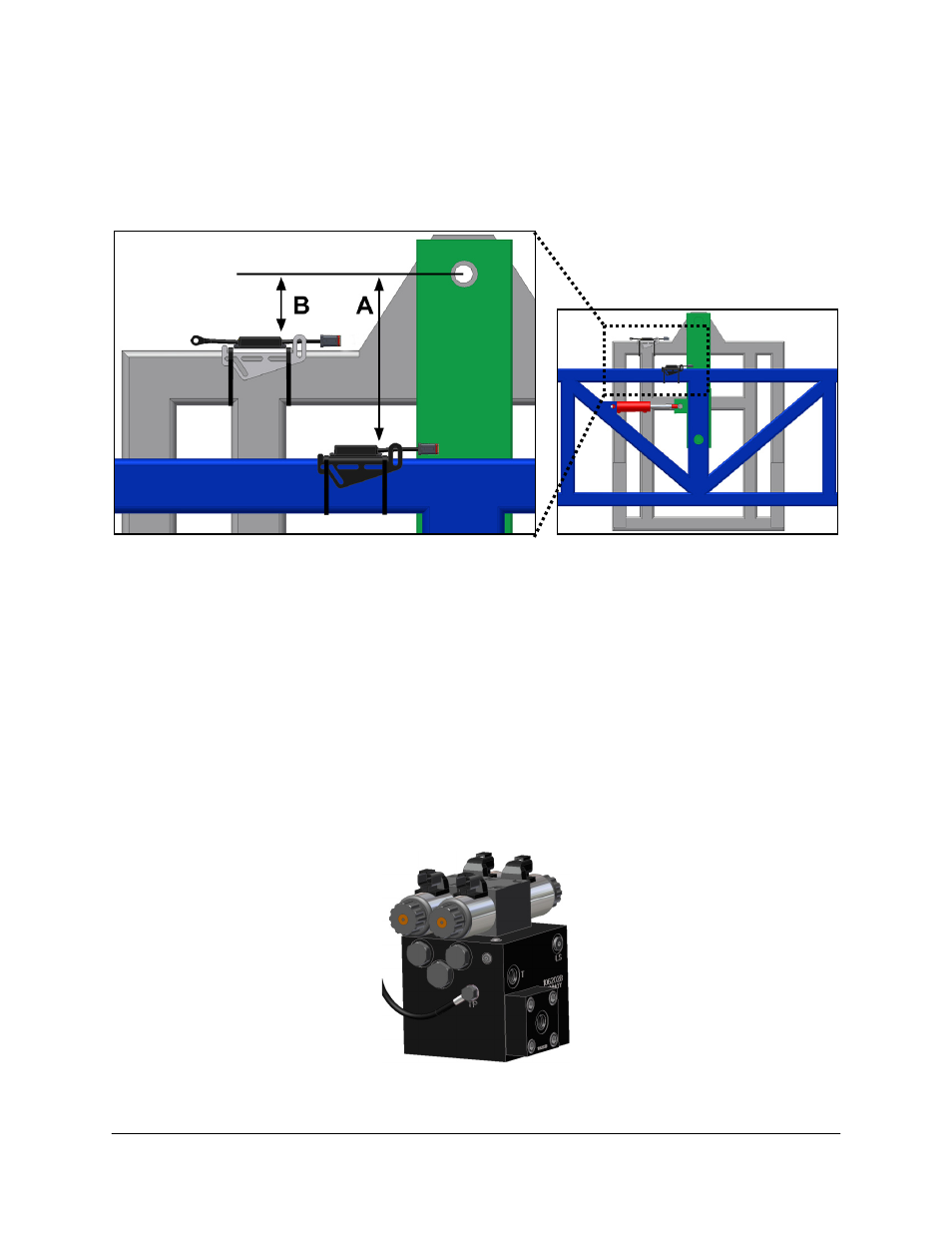

Figure 20: Roll Sensor Mounting on a High Pendulum Boom
2. Ensure the roll sensors are relatively level when the sprayer boom and chassis are level.
3. Both roll sensor cables should be pointing towards the right hand wing of the sprayer.
4. Ensure both roll sensors are mounted adequately and that the cables provide enough slack
to allow sufficient boom roll.
6.5 Temperature Probe
Fasten the temperature probe from E03 to the NORAC valve block using the included 3/8x1/2”
bolt as illustrated in Figure 21.
Figure 21: Valve Block with Temperature Probe Installed
