18
2. The reference frame (chassis) roll sensor has the highest serial number (E04) and mounts
directly beneath the top parallel lift arm, as shown in Figure 18.

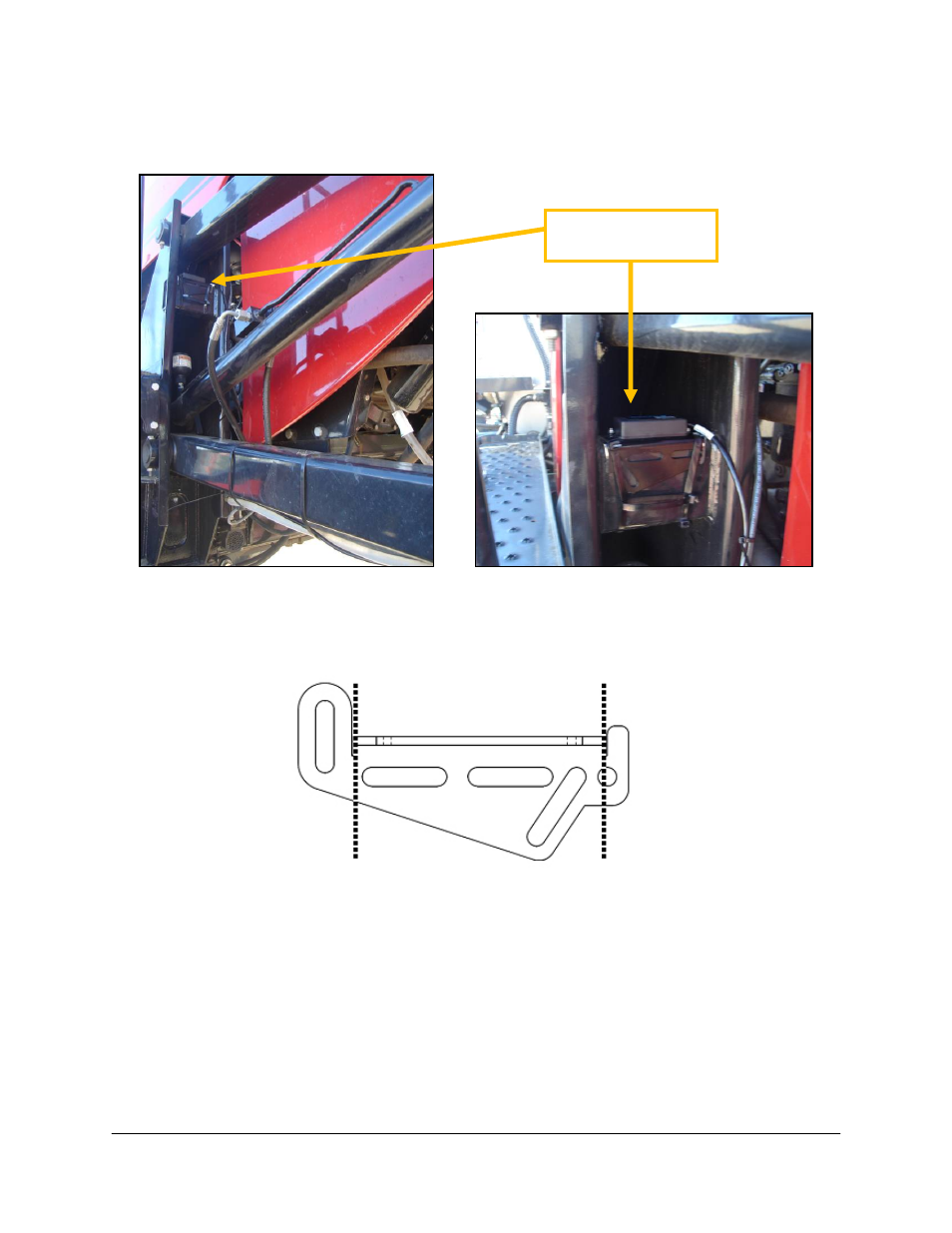

Figure 18: Reference Frame Roll Sensor Mounting Location
3. To mount the reference frame roll sensor it may be necessary to modify the roll sensor
mounting bracket, as shown in Figure 19.
Figure 19: Roll Sensor Mount Modification
4. Ensure the roll sensors are relatively level when the sprayer boom and chassis are level.
5. Both roll sensor cables should be pointing towards the right hand wing of the sprayer.
6. Ensure both roll sensors are mounted adequately and that the cables provide enough slack
to allow sufficient boom roll.
Reference Frame
Roll Sensor
