6.2 Roll Sensor Mounting Guidelines: Trapeze-Suspended Booms
1. When mounting the roll sensors, mount a roll sensor without the temperature probe
(E04) with the lowest serial number on the trapeze link (boom frame), a roll sensor
without the temperature probe (E04) with the highest serial number on the chassis
(reference frame), and the roll sensor with the temperature probe (E03) on the boom
carrier frame (intermediate frame). For optimal performance, minimize the distance from
the boom frame roll sensor to the pivot point (A) and minimize the vertical distance
between the chassis roll sensor and the pivot point (B).

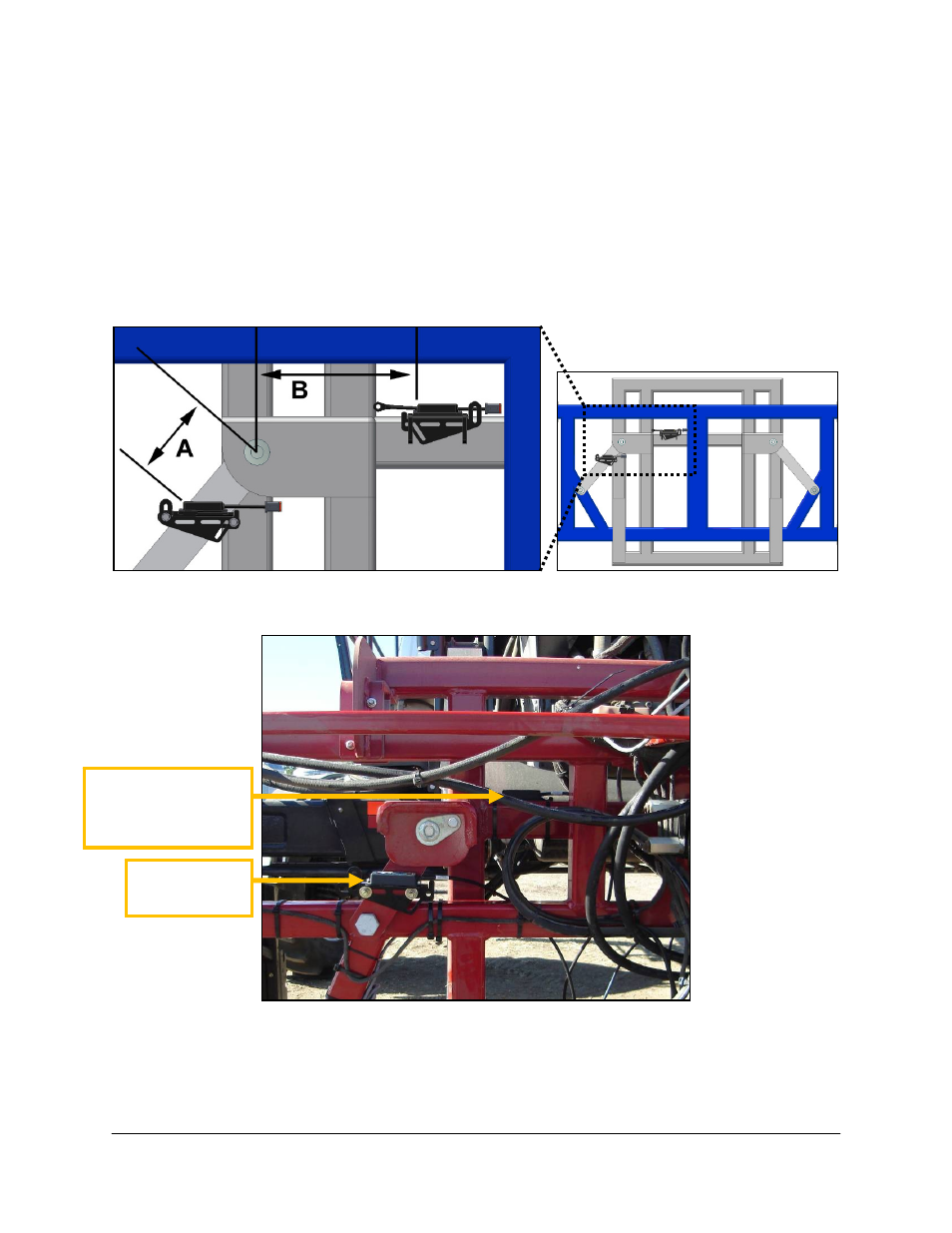

Figure 16: Roll Sensor Mounting on a Trapeze Suspended Boom
Figure 17: Roll Sensor Mounting (Viewed from the rear of sprayer)
Intermediate
Frame Roll Sensor
(has temp. probe)
Boom Frame
Roll Sensor
