Mytek Digital Private-Q DL Cable Assembly Using Canare MR202-16AT User Manual

Page 7

background image

13.

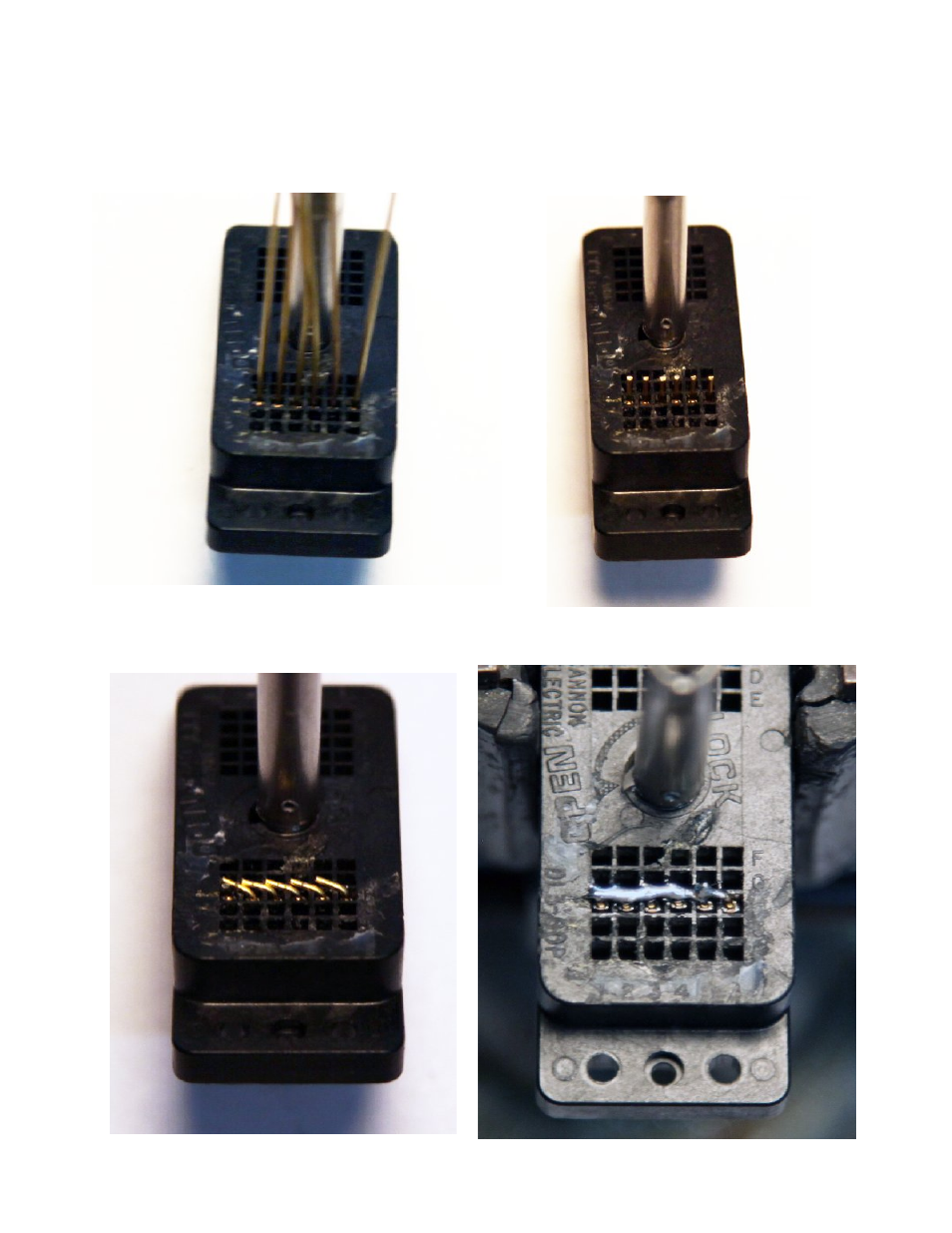

Insert them in to row H first. It is VERY IMPORTANT that you

look at and take notice of the markings on the connector so that
you do not accidentally pin it up-side down. Cut the wires so that
only 1/8 inch of the wire is sticking up.

14.

Bend the wires down with a flat head screwdriver so that

they form a row. Solder them together.
