SKU 93749 For technical questions, please call 1-800-444-3353. Page 7
SpEciFicatiONS
Electrical Requirements 120 V~ / 60 Hz / 6A
Staple Type
1/4”, 5/16”, 1/2”, 9/16”
or Arrow T50 ®
Nail Type 9/16”
Accessories
3/8” Staples (Qty. 400)
9/16” Nails (Qty. 100)
Note: Performance of the Stapler/Nailer
may vary depending on variations
in local line voltage. Extension cord
usage may also affect the tool perfor-
mance.
uNpacKiNg
When unpacking, make sure that the
item is intact and undamaged. If any parts
are missing or broken, please call Harbor
Freight Tools at the number shown on the
cover of this manual as soon as possible.
lOadiNg
tO prEVENt
SEriOuS iNjurY:
Wear aNSi-approved impact
safety goggles when
reloading or performing any
other maintenance on this
tool. Other people in the work
area must also wear ANSI-
approved impact safety goggles.
lock the trigger (10) by moving 1.
the trigger lock (3) to the right
and unplug the tool before loading.
Note: To lock the Trigger (10), move the
Trigger Lock (3) to the right.
To unlock the Trigger, move the Trig-
ger Lock to the left.
test for proper operation of the
2.
Trigger Lock by attempting to fire a
fastener into a piece of scrap wood
while the trigger is locked (the tool
should not fire). (See Figure H.)
Push forward on the Pusher Cover
3.
(2) and slightly downward to remove
the Pusher assembly.
(See Figure d.)
Once removed, insert one strip of
4.
Staples (46) or Nails (47) in the Inner
Staple Slot (1-1). do not load Sta-
ples and Nails together.
(See Figures E, F.)
Reinsert the Pusher assembly into
5.
the Stapler/Nailer, making sure the
Pusher Cover (2) locks securely in
place. (See Figure g.)

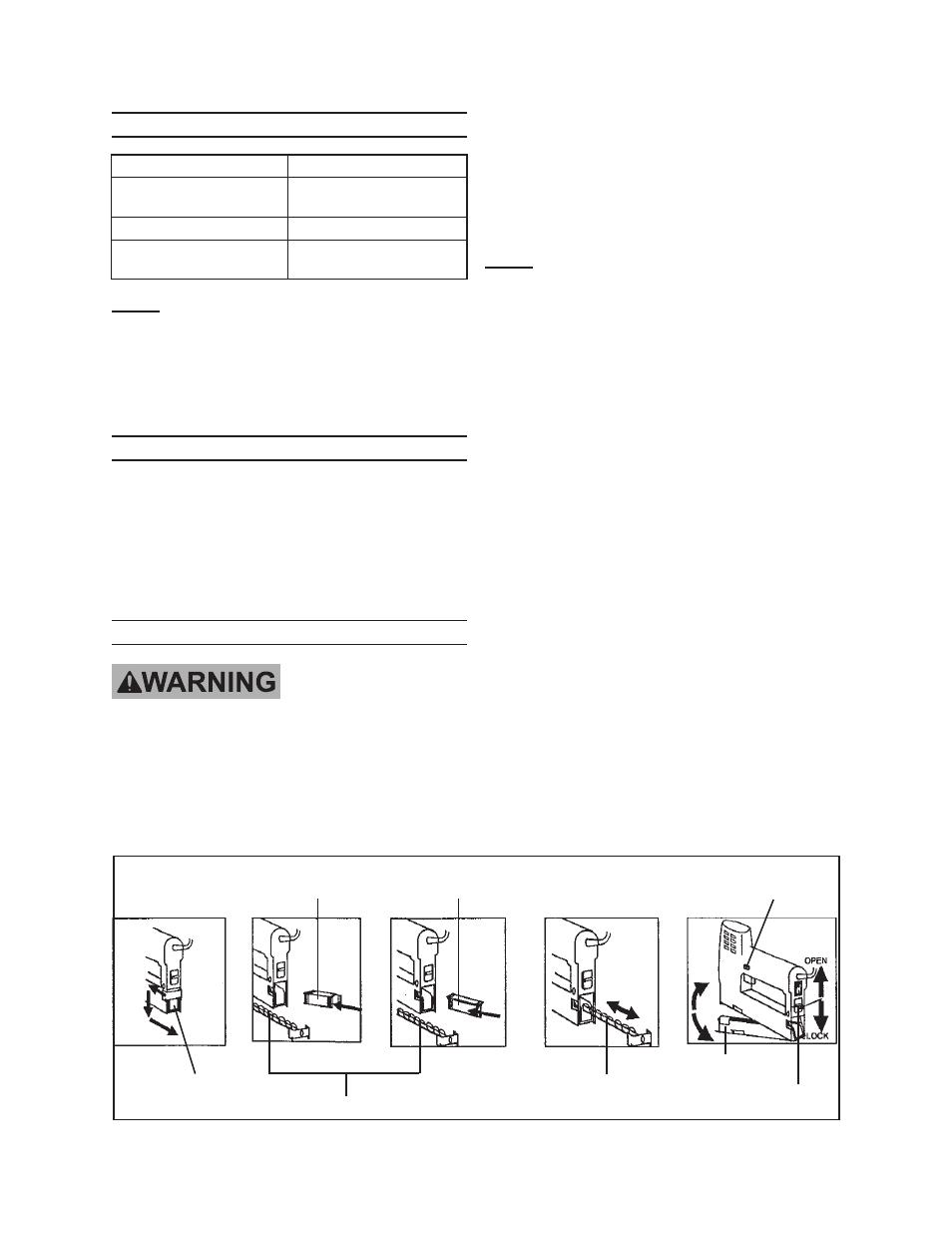

H g F E d
magaziNE
lOcK (44)
OutEr StaplE
SlOt (1)
StaplES
(46)
NailS
(47)
puSHEr cOVEr
(2)
triggEr lOcK
(3)
puSHEr aSSY.
puSHEr aSSY.
