73M1822/73M1922 MicroDAA Software Architecture User Guide UG_1x22_057
8 Rev. 1.0
3.3 73M1x22 Control Module
The 73M1x22 Control Module is responsible for the monitoring of the 73M1x22 device status and
providing the proper register settings to the 73M1x22. It will set the register settings as needed to
achieve the proper device state as dictated by the User Application. It will also monitor and report the
device status to the user application as required.
73M1x22
Hardware
Interface
Module
73M1x22 Control Module
User
Application
731x22
Functions
73M1x22 Device
State Machine
Register Read
Register Write
Control
Status
User
Functions
Control
Status

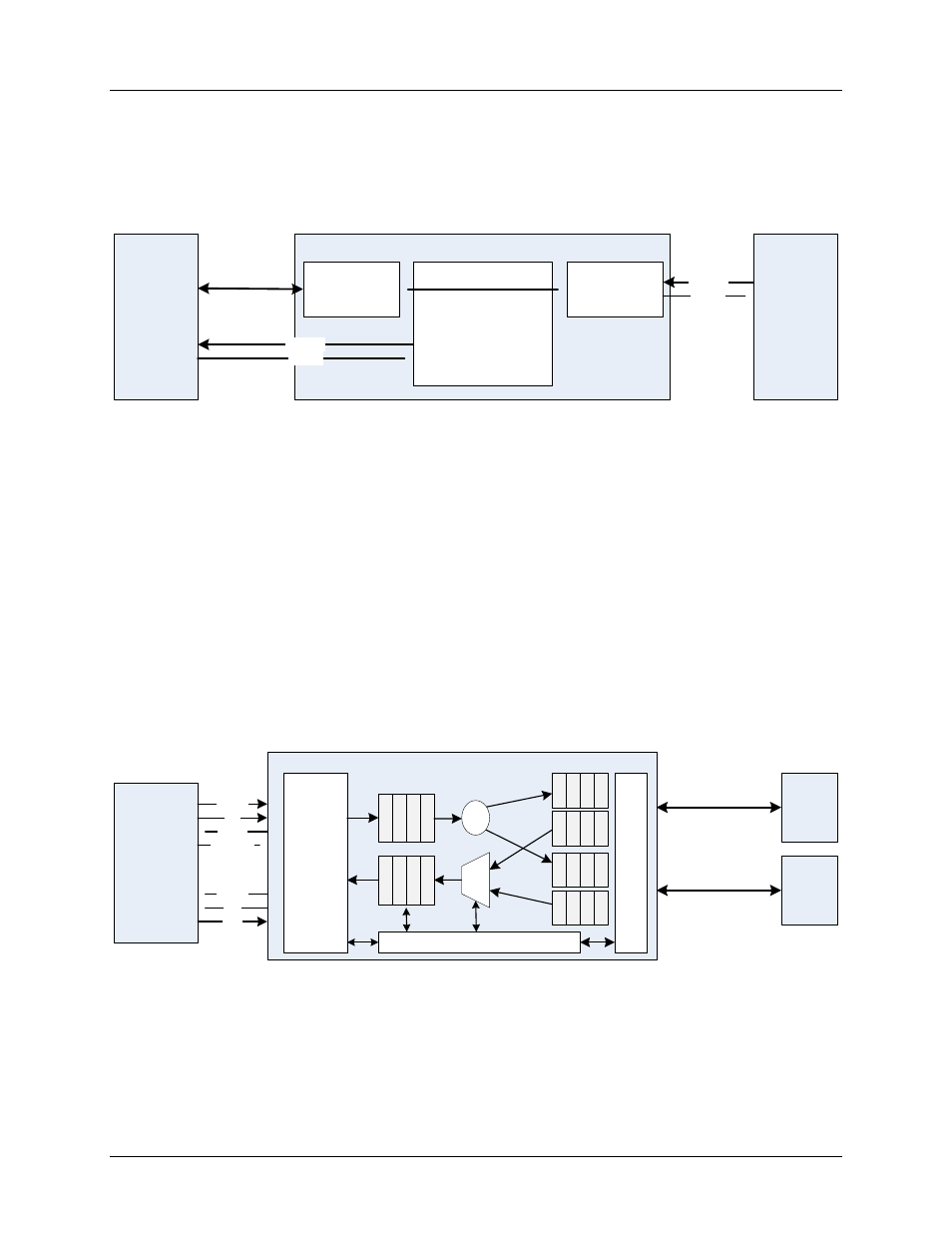

Figure 4: 73M1x22 Control Module Block Diagram
See the 73M1822/73M1922 Control Module User Guide.
3.4 73M1x22 Hardware Module
The 73M1x22 Hardware Interface Module is responsible for providing the proper control and translation of
the MAFE interface and other hardware signals to/from the 73M1x22 device into a usable form for the
73M1x22 Data Module and the 73M1x22 Control Module.
The module is responsible for:
• Controlling the MAFE interface timing and formats.
• Formatting the incoming MAFE transactions and forwarding them to the appropriate module.
• Formatting and multiplexing the outgoing MAFE data and control transactions.
• Controlling 73M1x22 device reset signals.
• Relaying incoming interrupts.
73M1x22
Device
&
External
Components
SCLK
73M1x22 Hardware Interface Module
Control
Module
System
BSP
Register Read/Write
Control & Status
FS
SDIN
SDOUT
Data
Module
DATA DATA DATA DATA
DATA
CTL
DATA
CTL
DATA
CTL
DATA
CTL
CTL CTL CTL CTL
DATA DATA DATA DATA
CTL CTL CTL CTL
Tx/Rx Data
Control & Status
State Machine
API
INT
MS
TYPE
Figure 5: 73M1x22 Hardware Interface Module Block Diagram
See the 73M1822/73M1922 Hardware Module for SMDK412 User Guide for an example of a hardware
module.
