Santa Cruz (MAXREFDES23#) Quick Start Guide
5
3. Included Files
The RD23_RL78_V01_XX.ZIP contains the corresponding IO-Link Device Descriptor
(IODD) files. The IODD contains information on communication properties, device
parameters, identification, process, and diagnostic data. It includes an XML file, an
image of the device, an icon image, and the manufacturer’s logo. The IODD structure is
the same for all devices of all manufacturers, and is always represented in the same
way by the IODD interpreter tools.

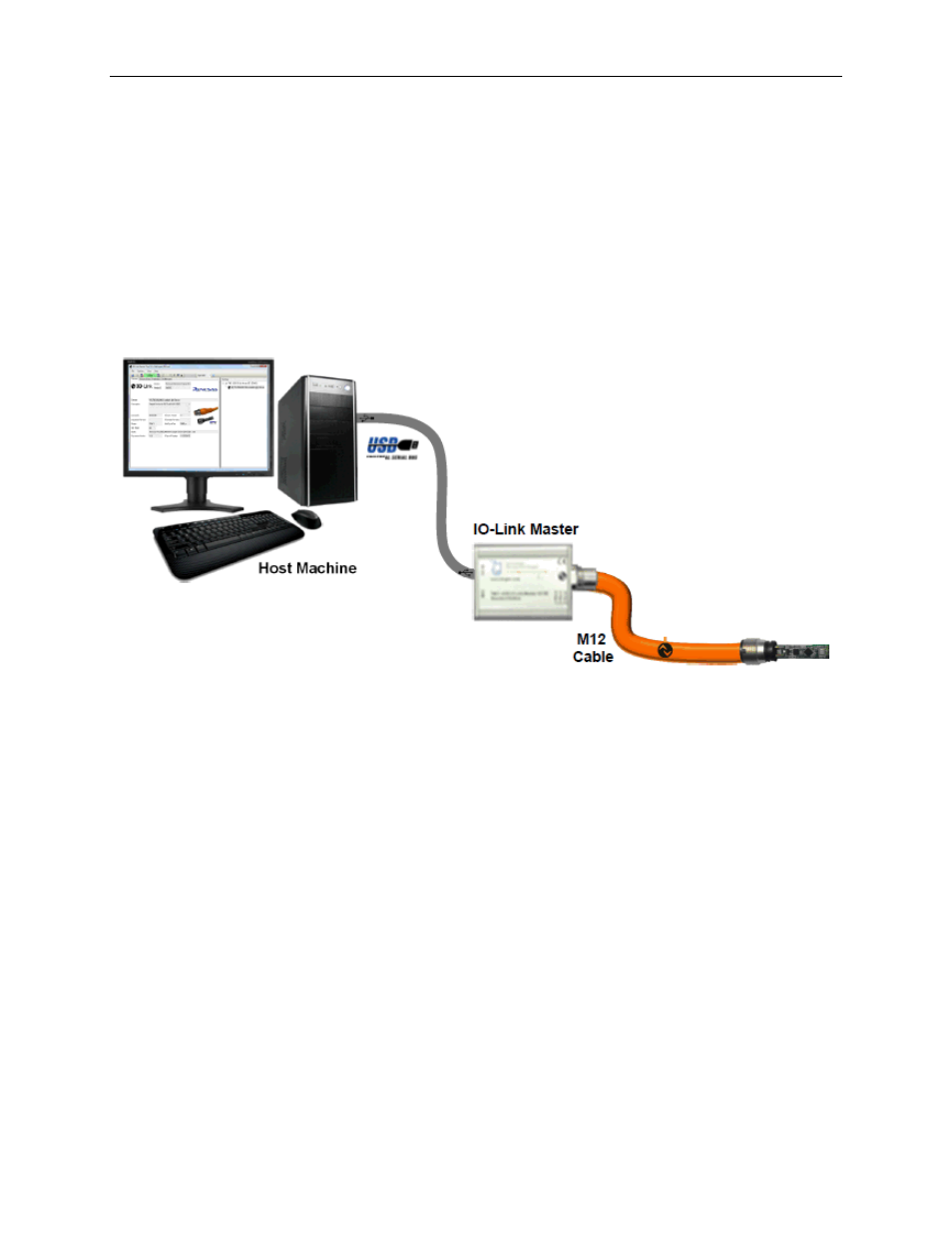

Figure 3. Block Diagram of System
