Santa Fe (MAXREFDES5#) Nexys 3 Quick Start Guide

12

choose, the communication should be set up by opening the COM port number
previously described above and the port configured as:

bits per second: 460,800;

data bits: 8;

parity: none;

stop bits: 1;

flow control: none.

10. Use the Xilinx SDK to download and run the executable ELF (.ELF) file on the

MicroBlaze using the following steps.

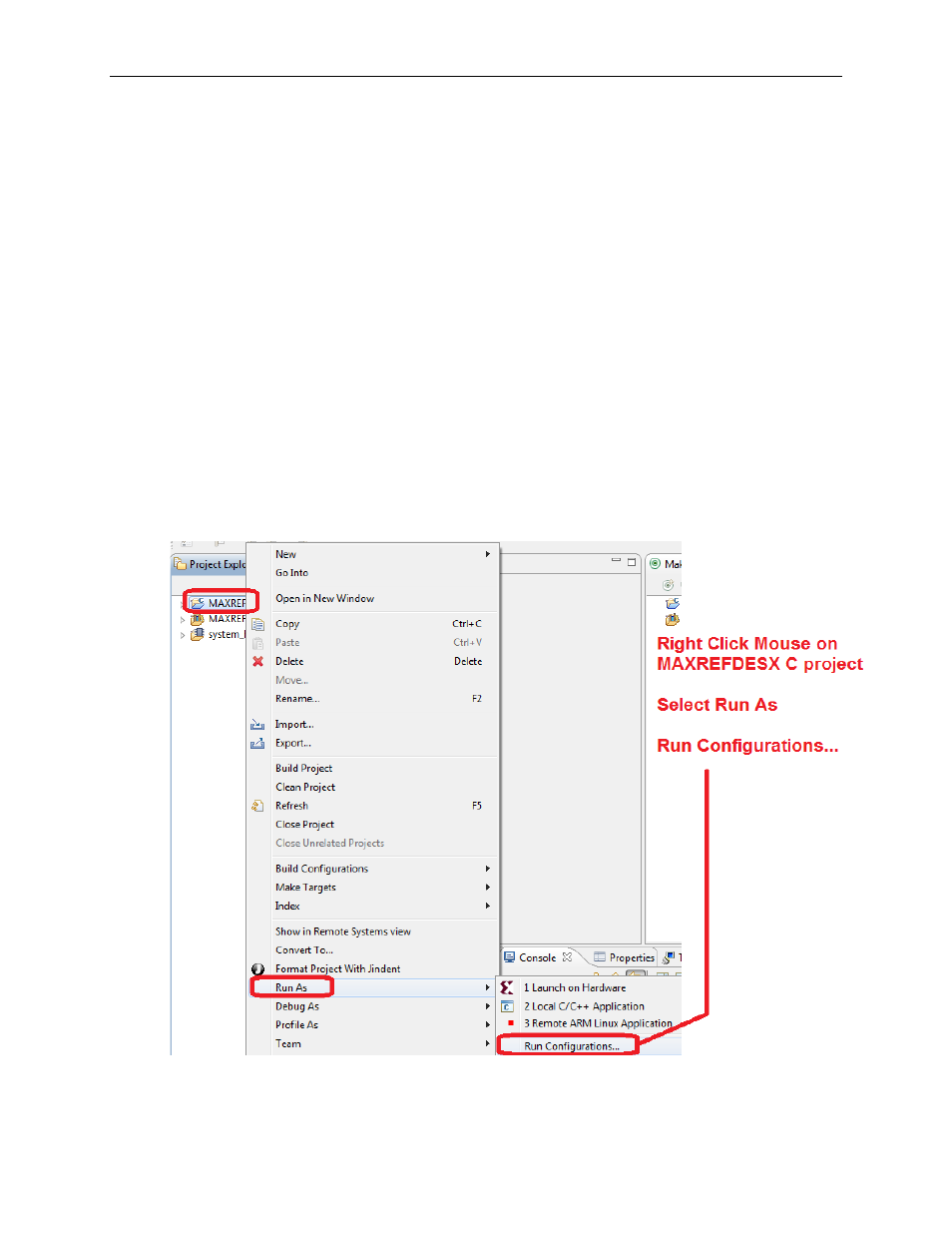

Right-click the mouse while the MAXREFDES5 C project is selected, choose the
Run As menu, and then Run Configurations… menu as shown below.
