73S1215F Evaluation Board Quick Start Guide QS_1215F_007
2 Rev. 1.1
Software Installation and Use on Windows XP
Follow these steps to install the driver and software on a PC running Windows XP:
• Extract “12xxF CCID+DFU Vz.zz Release.zip” (where z.zz is the latest version of the firmware
release) and follow the on-screen instructions.
o Create an install directory. For example: “C:\TSC\”.
o Unzip “12xxF CCID+DFU Vz.zz Release.zip” to the just created folder. All applications and
documentation needed to run the board with a Windows PC will be loaded to this folder.

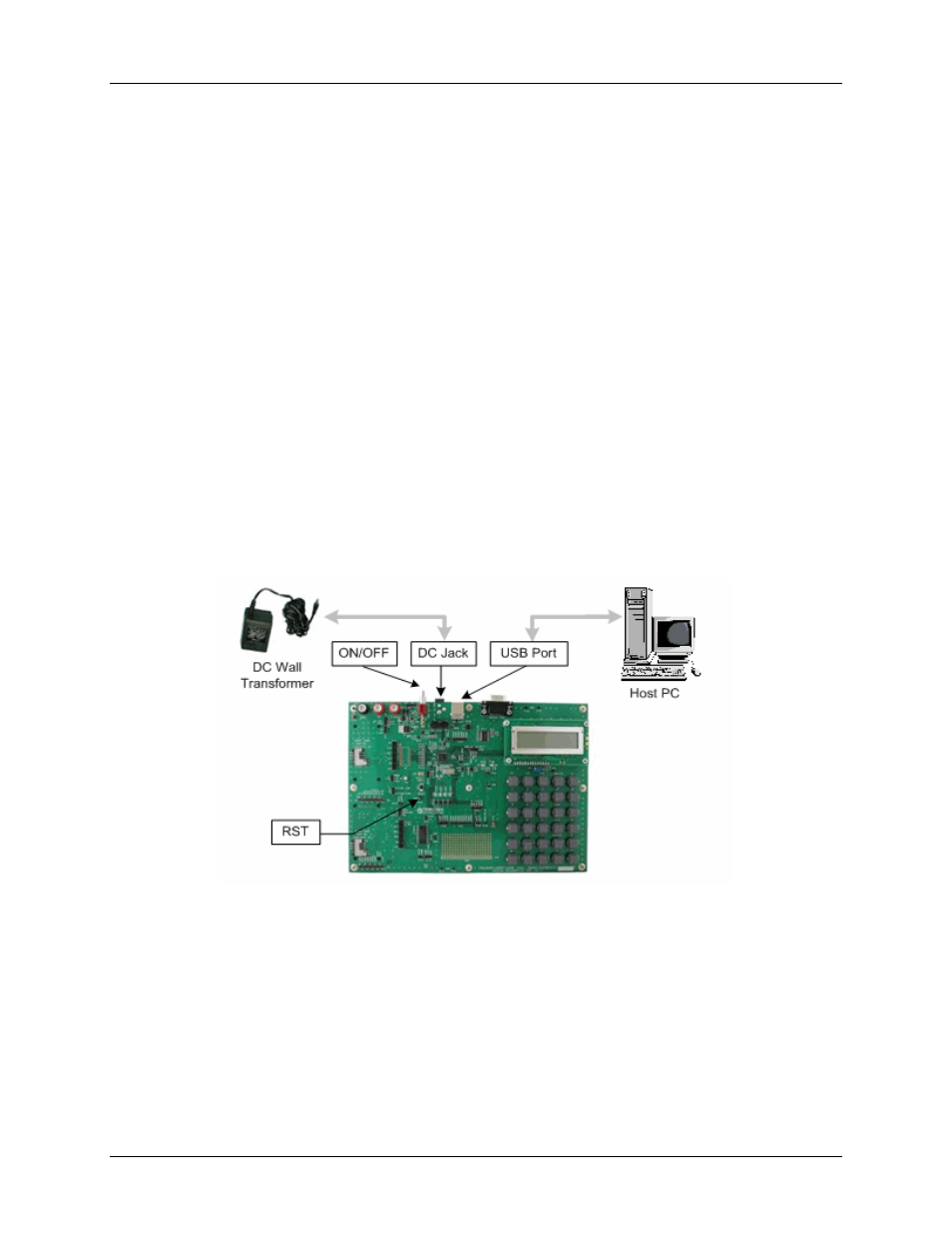

• Plug the supplied adapter into the PJ1 jack and a wall outlet.
• Flip the ON/OFF switch to ON.
• Connect the USB cable between the host system and the 73S1215F Evaluation Board.
• The host system should recognize the board and start the Add New Hardware Installation Wizard.
When the wizard prompts, select the Teridian provided driver file.
o To use the Teridian supplied driver, select the ccidtsc-xp.inf file located in the “x:\yyy\12xxF
CCID+DFU Vz.zz Release\USB-CCID Firmware\CCID USB\CCID+DFU USB Drivers\XP 32 - CCID”
subdirectory. The ccistsc-xp.inf and ccidtsc-xp.sys files must be in the same directory on the host.
• Follow the prompts until the process is completed.
• Run “CCID-DFU_USB_vz.zz.exe” (located in the path x:\yyy\12xxF CCID+DFU Vz.zz Release\Host
Applications\Windows App\Bin\Release Release\Host Applications\Windows App\Bin\Release) on the host
system to execute the host demonstration application.
At this point the application window should appear. For additional information regarding the use of the
Teridian Host application, refer to the 73S12xxF USB-CCID Host GUI Users Guide (UG_12xxF_037).
Driver and Software Installation on a Linux System
Teridian has tested this board with the Linux CCID driver v1.3.2 and PCSC-Lite v.1.4.4 (middleware) on
Linux. Refer to the 73S1215F, 73S1217F CCID USB Linux Driver Installation Guide (UG_12xxF_041) for
details on the Linux software installation and usage.
