Installation:
The Make Noise Rosie is an electronic signal router requiring 30mA of +/- 12V
regulated power and a properly formatted distribution receptacle to operate. It is designed to
be used within the euro format modular synthesizer system.
Go to http://www.doepfer.de/a100_man/a100t_e.htm for the details of this format.
To install, find 8HP of space in your euro-rack synthesizer system, confirm proper installa-

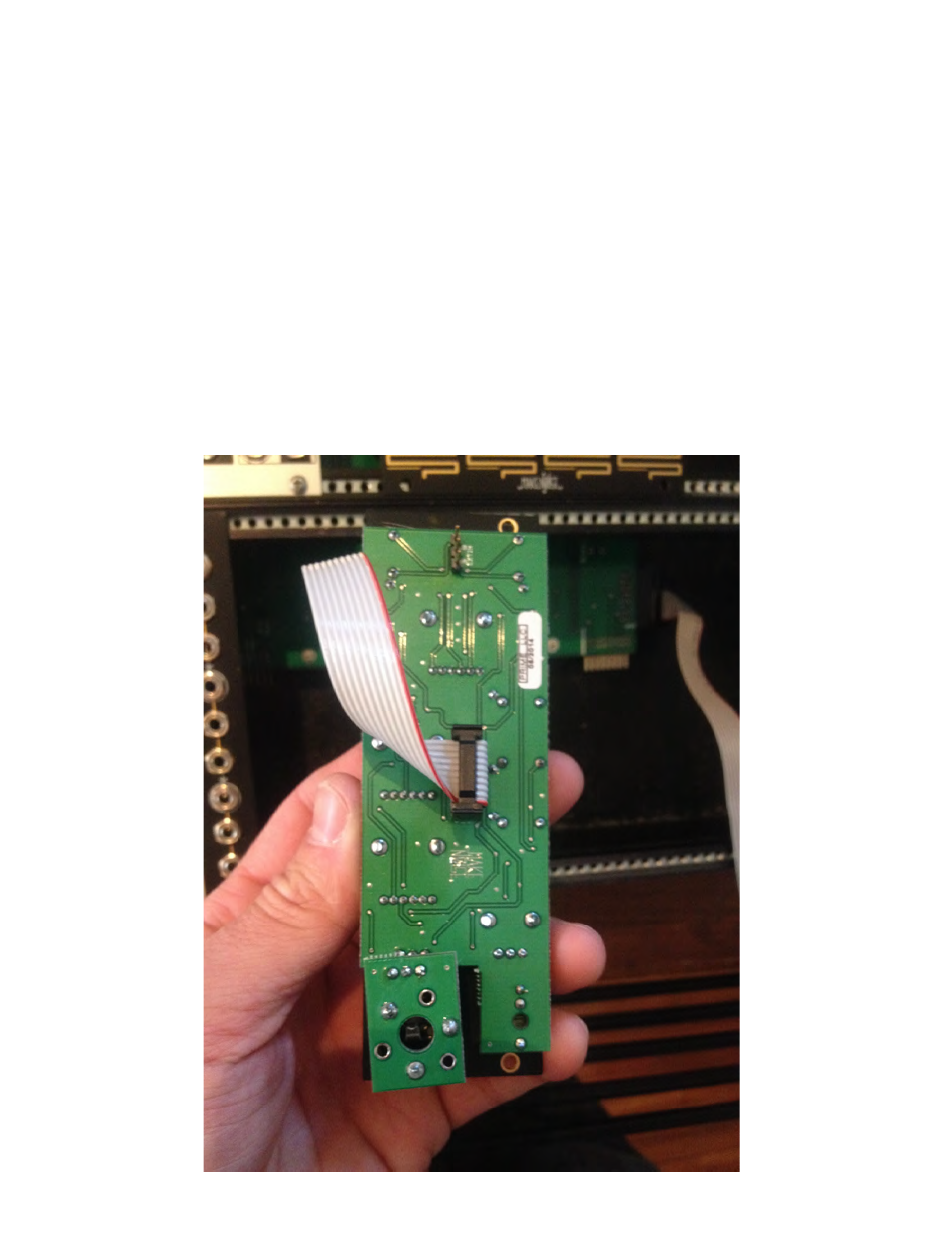

tion of included power cable on backside of module (see picture below), plug the 16 pin end
power cable into the euro-rack style power distribution board, minding the polarity so that the
RED stripe on the cable is oriented to the NEGATIVE 12 volt supply line. On the Make Noise
power bus board, the negative 12 volt supply is indicated by the white stripe.
Please refer to your case manufacturers’ specifications for location of the negative supply.
