IP Sharing Router
- 8 -

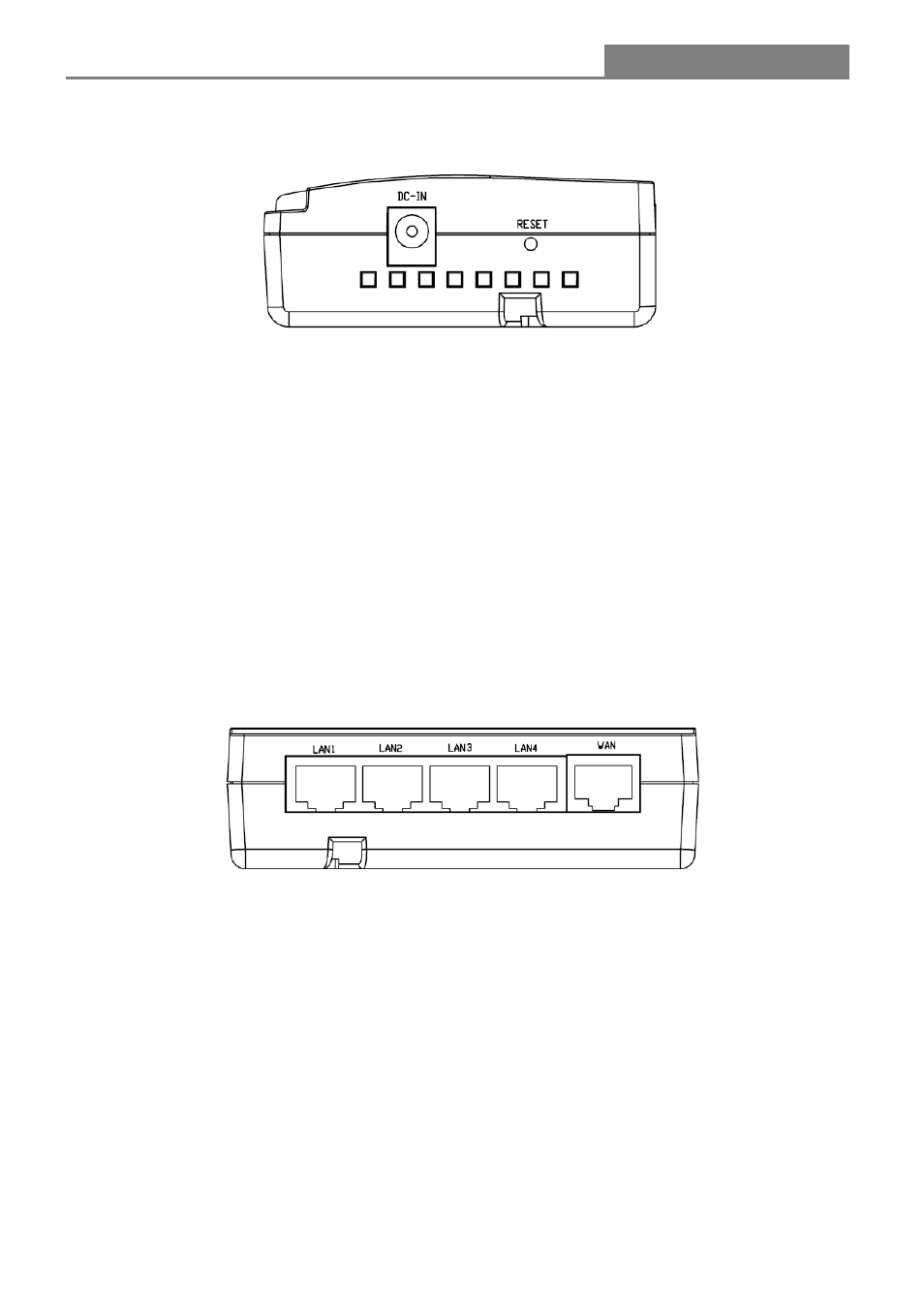

1.4 The Right Panel
z DC IN
Plug the circle end of the power adapter firmly into the rear panel of the Router, and the other end
put into an electric service outlet then the system is ready.
z RESET
Push the button for more than 5 seconds and then release it, the system will reset to factory default
setting. In the meantime, system rewrites flash to default value. Approximately 15 seconds later,
the whole system parameters have reset to factory default value. If the process has been
interrupted by any reason (power off), the system will fail. Before performing the process, ensure a
safe operating environment please!
1.5 The Rear Panel
z LAN(1~4): Through these ports, you can connect the Router to your PCs and the other Ethernet
network devices.
z WAN: This WAN port is where you will connect the cable/DSL Modem, or Ethernet
