10Base-T to FL Converter
Appendix D
About RJ-45 Cables
When connecting your network devices, use standard
Category 3 eight-way cables for 10Base-T configurations
and Category 5 cable for 100Base-TX. The pin
assignments are as follows:
Pin 1 TD+ Pair 2 White/Orange
Pin 2 TD- Pair 2 Orange/White
Pin 3 RX+ Pair 3 White/Green
Pin 4 N/A Pair 1 Blue/White
Pin 5 N/A Pair 1 White/Blue
Pin 6 RX- Pair 3 Green/White
Pin 7 N/A Pair 4 Brown/White
Pin 8 N/A Pair 4 Brown/White

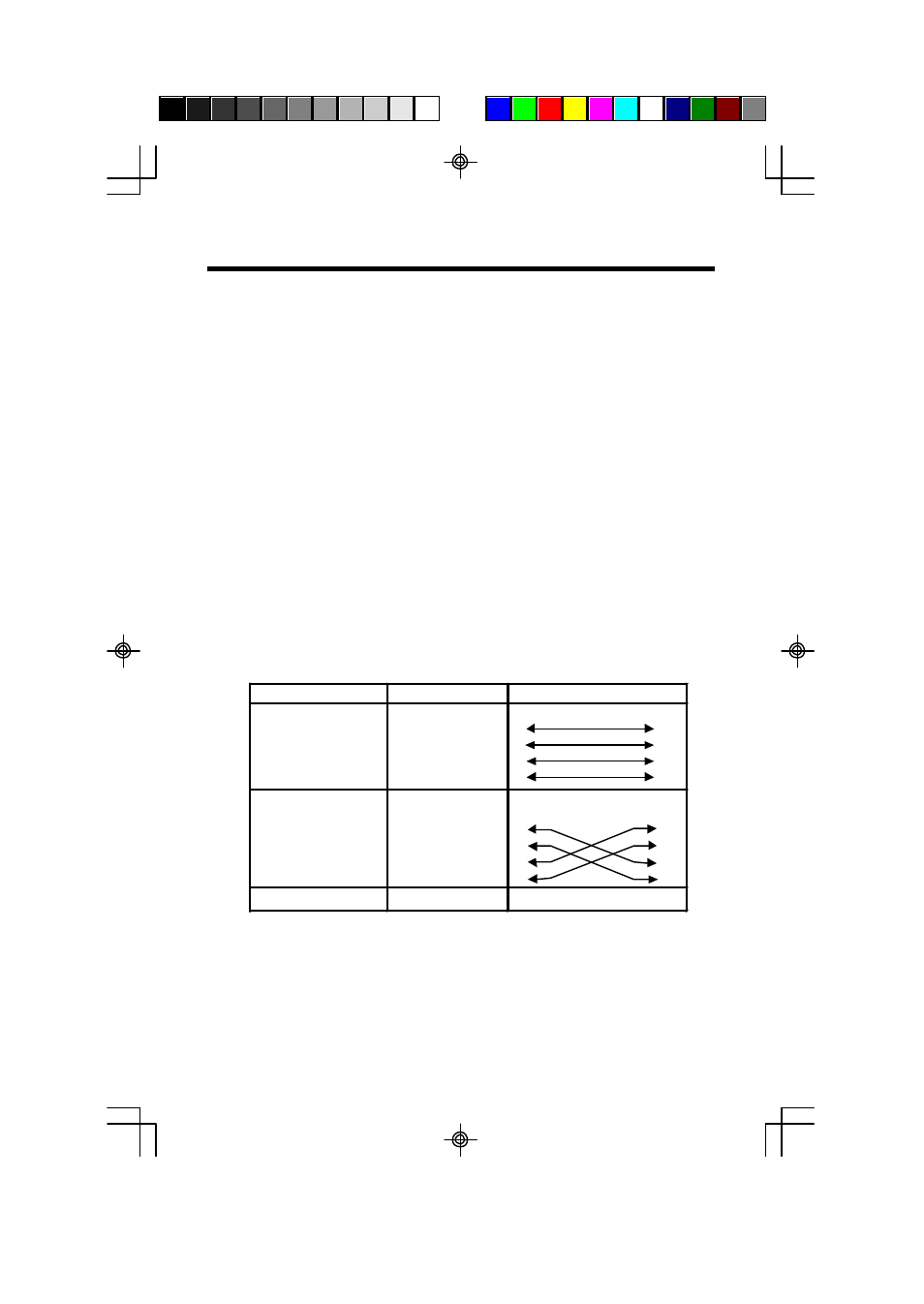

Application Cable Type Application
Converter
to
Converter
or
Network Adapter
Straight-through
Cable
Converter Hub
1 1
2 2
3 3
6 6
Converter
to
Switch
Cross-Over
Cable
Converter Converter
1 1
2 2
3 3
6 6
