Led indicators, 3led indicators – Longshine LCS-883C-TB User Manual
Page 13
10Base-T to 10Base-2 Converter
3

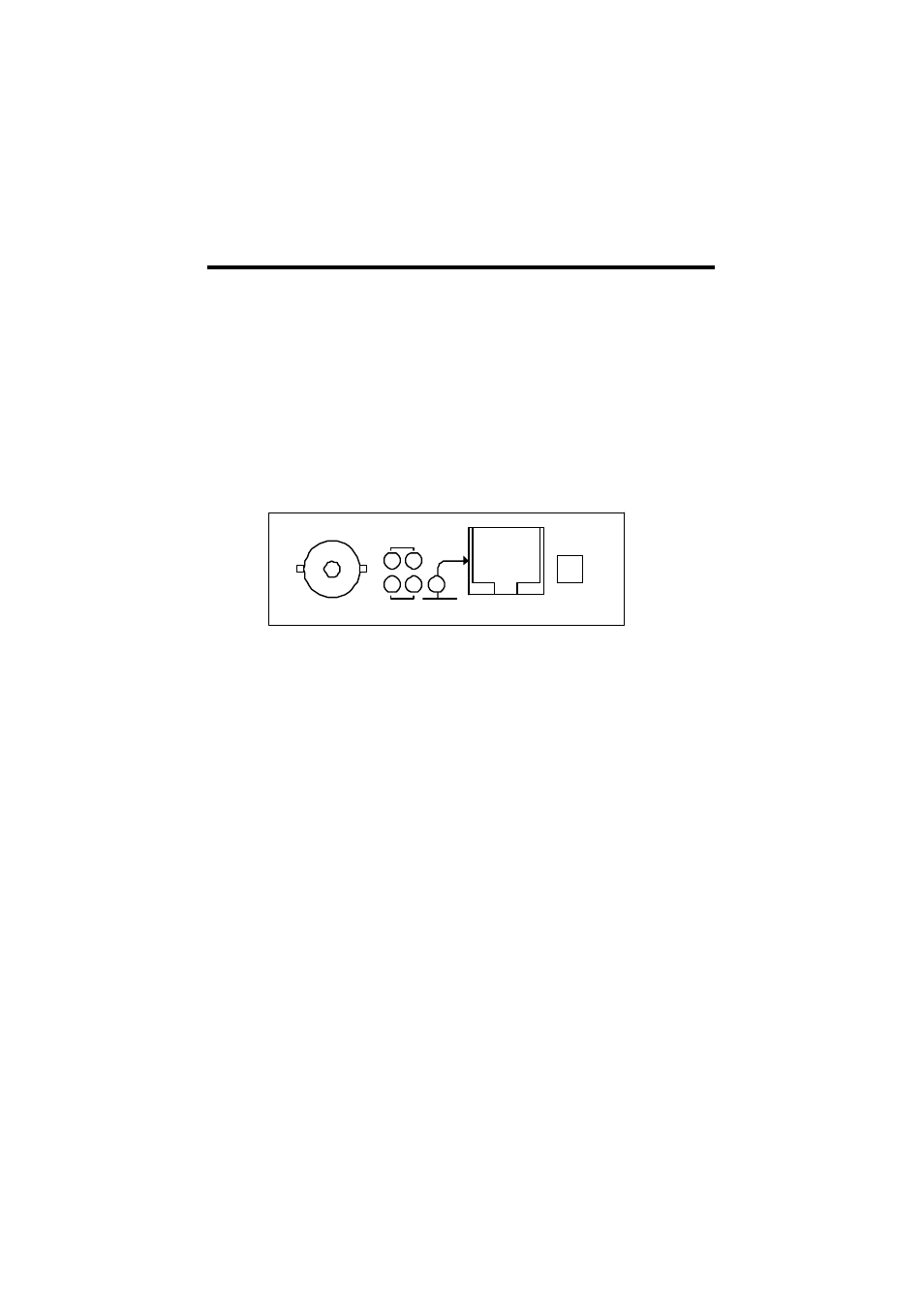

LED Indicators
This converter has several LEDs to enable you to determine the
status of the converter and to see what is happening across your
network. They are as follows:
PWR
Green light - Illuminates when power is on
LNK
Green light - Illuminates when receiving link pulses
from compliant devices.
RCV
Amber light - Flashes or illuminates when receiving
data packets (depends on the rate of
data passing through).
PART
Green light - Illuminates when partitioning occurs.
PART
MDI-X
MDI
10Base-T
LNK
RCV
10Base-2
