Longshine LCS-883C-IND - Manual (Page 20)

10Base-T to 10Base-2 Converter
Affixing Brackets
We have supplied 2 special brackets that easily
attaches to the Converter. This allows for the secure
placement of the converter into the Chassis. It also
seals off the front of Chassis and allows it to function
correctly.
Step 1 Using a Phillips screwdriver, remove two screws from
the side panels on the converter.

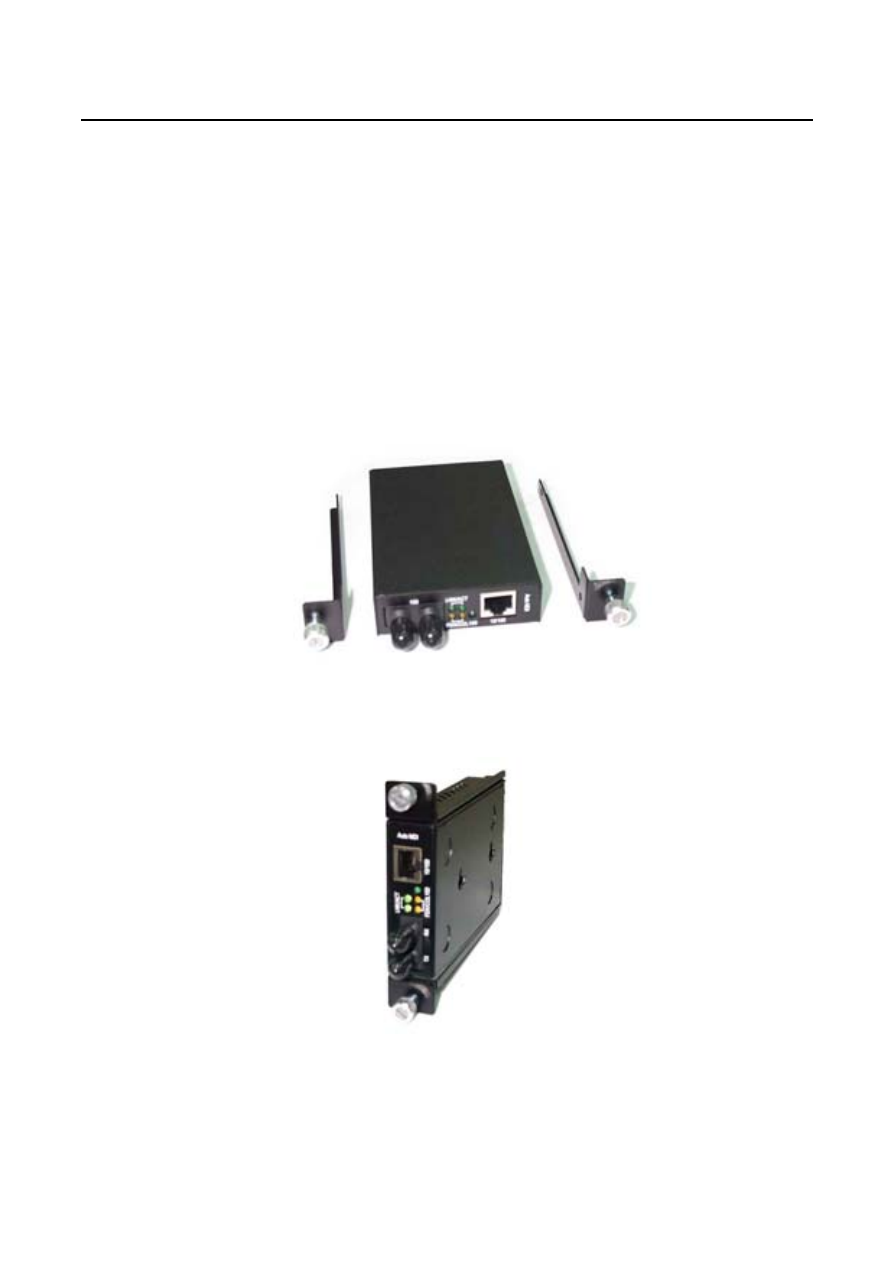

Step 2 Place the converter and brackets on a flat horizontal
surface as illustrated above. Secure the brackets by
replacing the screws.
Ensure that the rails are flush-mount with the underside of the
converter. The converter is now ready for loading into the
Chassis.
-16-
